Crane Valve Spring Retainer - 996692

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 996692
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $62.99
Price: $59.99
You Save: $3.00
Inner Diameter Of Retainer (IN)
0.703 Inch
Intermediate Diameter Of Retainer (IN)
1.045 Inch
Lock Angle
7 Degree
Material
Titanium
Outer Diameter Of Retainer (IN)
1-3/8 Inch
Quantity
Set Of 2
Spring Type
Dual
Valve Spring Diameter (IN)
1.430 To 1-1/2 Inch
Valve Stem Size
11/32 Inch
Share this page

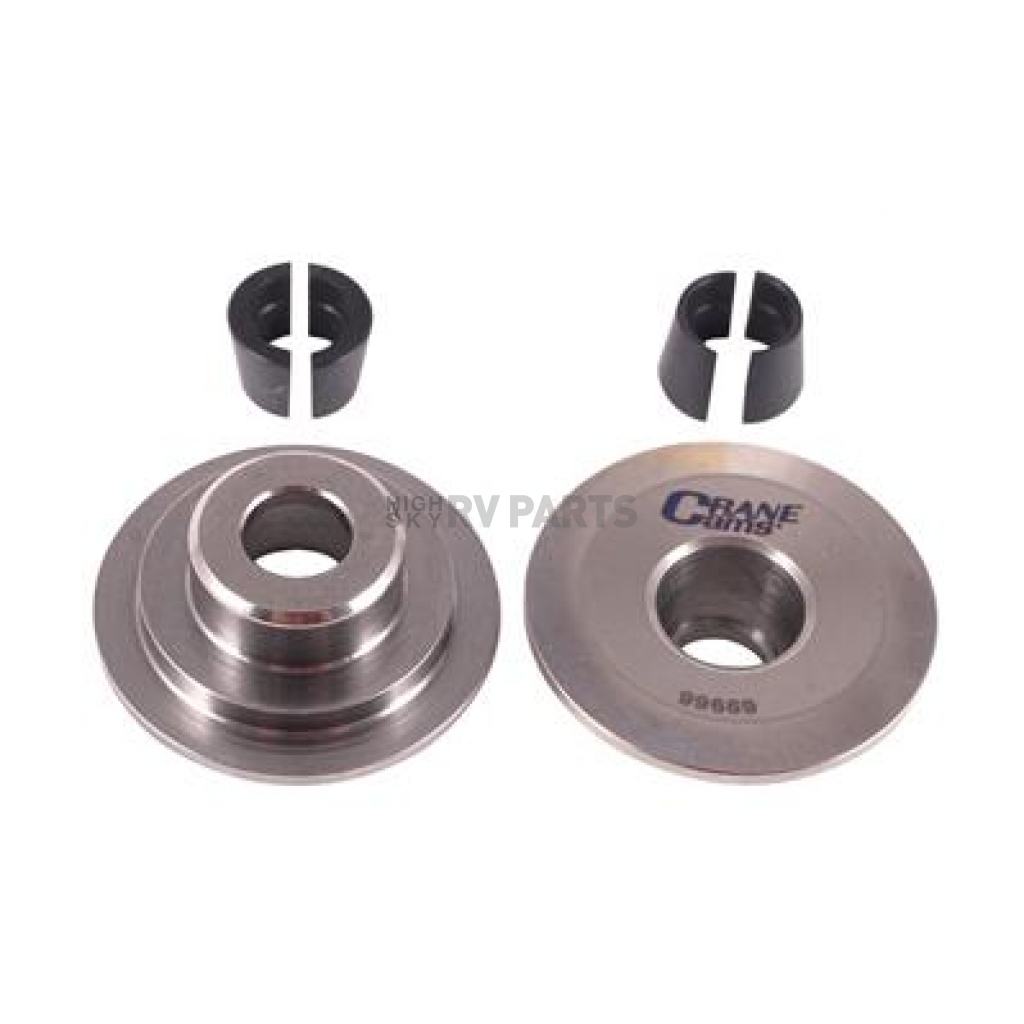

Crane Valve Spring Retainer

Valve Spring Retainer; Posi-Stop; 1.430-1.500 Inch Valve Spring Diameter; 1.375 Inch/ 1.045 Inch/ 0.703 Inch Retainer Dimensions; Adds 0.075 Inch Installed Height; 7 Degree Lock Angle; Dual Spring; 11/32 Inch Valve Stem; Titanium; Set Of 2 With Valve Stem Locks

MPN: 996692

Crane Cams’ Posi-Stop titanium retainers feature the patented stepped design that reinforces the bottom of the retainer. This both significantly increases the integral strength of the retainer, and eliminates the valve lock’s ability to pull through the bottom of the retainer. "Posi-Stop" retainers are made for 5/16 Inch, 11/32 Inch, or 3/8 Inch valve stem diameters with 7 Degree taper, and come with matching Crane machined valve stem locks.
Material: Titanium
Lock Angle: 7 Degree
Valve Stem Size: 11/32 Inch
Spring Type: Dual
Valve Spring Diameter (IN): 1.430 To 1-1/2 Inch
Outer Diameter Of Retainer (IN): 1-3/8 Inch
Intermediate Diameter Of Retainer (IN): 1.045 Inch
Inner Diameter Of Retainer (IN): 0.703 Inch
Quantity: Set Of 2

Features

  • Absolutely The Strongest Titanium Retainer
  • Feature The Patented Stepped Design That Reinforces The Bottom Of The Retainer
  • Increases The Integral Strength Of The Retainer, And Eliminates The Valve Lock’s Ability To Pull Through The Bottom Of The Retainer
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring Retainer - 996692
Inner Diameter Of Retainer (IN) 0.703 Inch
Intermediate Diameter Of Retainer (IN) 1.045 Inch
Lock Angle 7 Degree
Material Titanium
Outer Diameter Of Retainer (IN) 1-3/8 Inch
Quantity Set Of 2
Spring Type Dual
Valve Spring Diameter (IN) 1.430 To 1-1/2 Inch
Valve Stem Size 11/32 Inch
