Crane Valve Spring Retainer - 9966016

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9966016
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 15
Retail: $490.34
Price: $466.99
You Save: $23.35
Inner Diameter Of Retainer (IN)
0.76 Inch
Intermediate Diameter Of Retainer (IN)
1.165 Inch
Lock Angle
7 Degree
Material
Titanium
Outer Diameter Of Retainer (IN)
1.51 Inch
Quantity
Set Of 16
Spring Type
Dual
Valve Spring Diameter (IN)
1-5/8 Inch
Valve Stem Size
5/16 Inch/ 11/32 Inch/ 3/8 Inch
Share this page

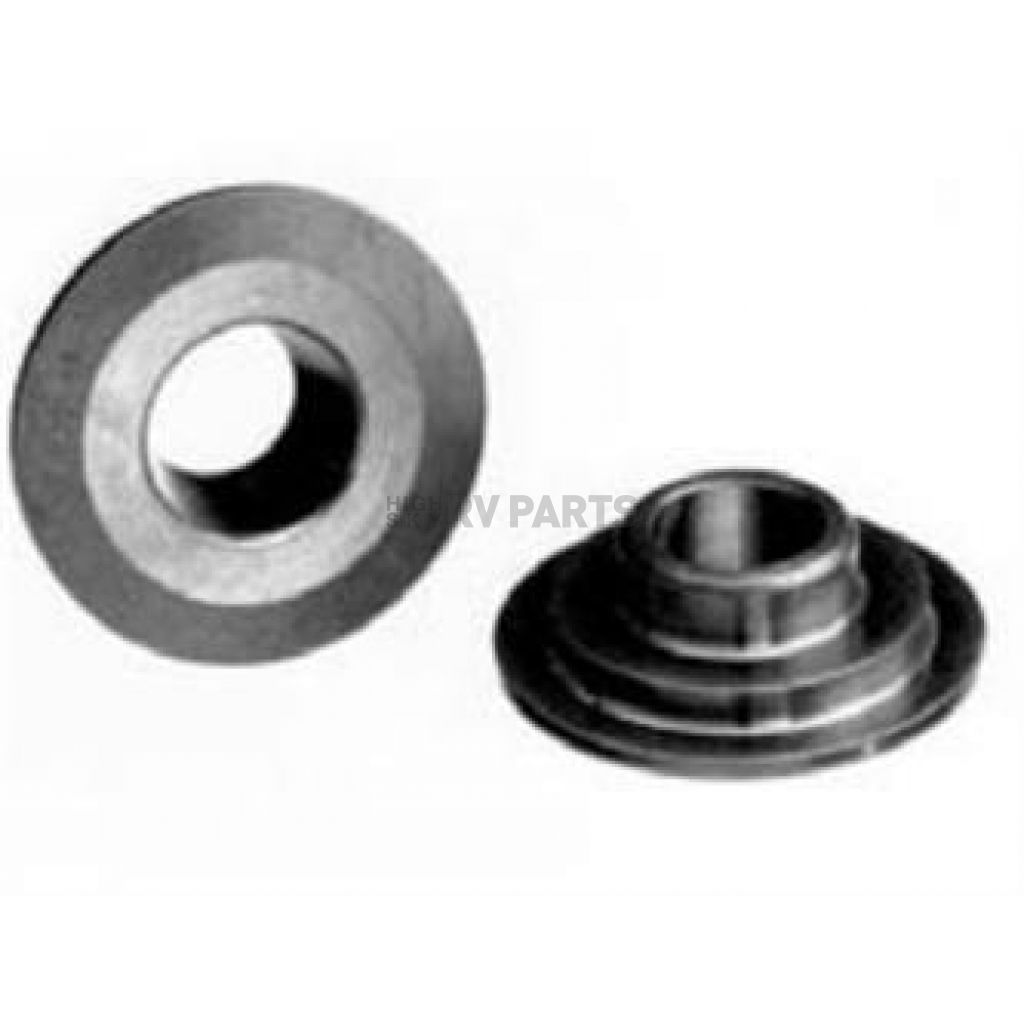

Crane Valve Spring Retainer

Valve Spring Retainer; Multi-Fit; 1.625 Inch Valve Spring Diameter; 1.510 Inch/ 1.165 Inch/ 0.760 Inch Retainer Dimensions; Adds 0.115 Inch Installed Height; 7 Degree Lock Angle; Dual Spring; All Valve Stem Sizes; Titanium; Set Of 16

MPN: 9966016

Our Multi Fit 10 Degree retainers and locks differ from the conventional 10 Degree items, as we use a smaller outside diameter lock, enabling the retainer to have a greater cross section in the critical area separating the inner spring steps from the tapered center hole. This provides superior strength and stability when compared to the competition, and these retainers are designed for use only with our Multi Fit locks. Compatible locks are offered for 8 Millimeter, 5/16 Inch, 11/32 Inch and 3/8 Inch valve stems in standard square groove and bead groove configurations.
Material: Titanium
Lock Angle: 7 Degree
Valve Stem Size: 5/16 Inch/ 11/32 Inch/ 3/8 Inch
Spring Type: Dual
Valve Spring Diameter (IN): 1-5/8 Inch
Outer Diameter Of Retainer (IN): 1.51 Inch
Intermediate Diameter Of Retainer (IN): 1.165 Inch
Inner Diameter Of Retainer (IN): 0.76 Inch
Quantity: Set Of 16

Features

  • Provides Superior Strength And Stability When Compared To The Competition
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring Retainer - 9966016
Inner Diameter Of Retainer (IN) 0.76 Inch
Intermediate Diameter Of Retainer (IN) 1.165 Inch
Lock Angle 7 Degree
Material Titanium
Outer Diameter Of Retainer (IN) 1.51 Inch
Quantity Set Of 16
Spring Type Dual
Valve Spring Diameter (IN) 1-5/8 Inch
Valve Stem Size 5/16 Inch/ 11/32 Inch/ 3/8 Inch
