Crane Valve Spring Retainer - 996362

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 996362
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $62.99
Price: $59.99
You Save: $3.00
Inner Diameter Of Retainer (IN)
0.86 Inch
Intermediate Diameter Of Retainer (IN)
1.118 Inch
Lock Angle
10 Degree
Material
Titanium
Outer Diameter Of Retainer (IN)
1-1/2 Inch
Quantity
Set Of 2
Spring Type
Triple
Valve Spring Diameter (IN)
1-5/8 To 1.675 Inch
Valve Stem Size
5/16 Inch/ 11/32 Inch/ 3/8 Inch
Share this page

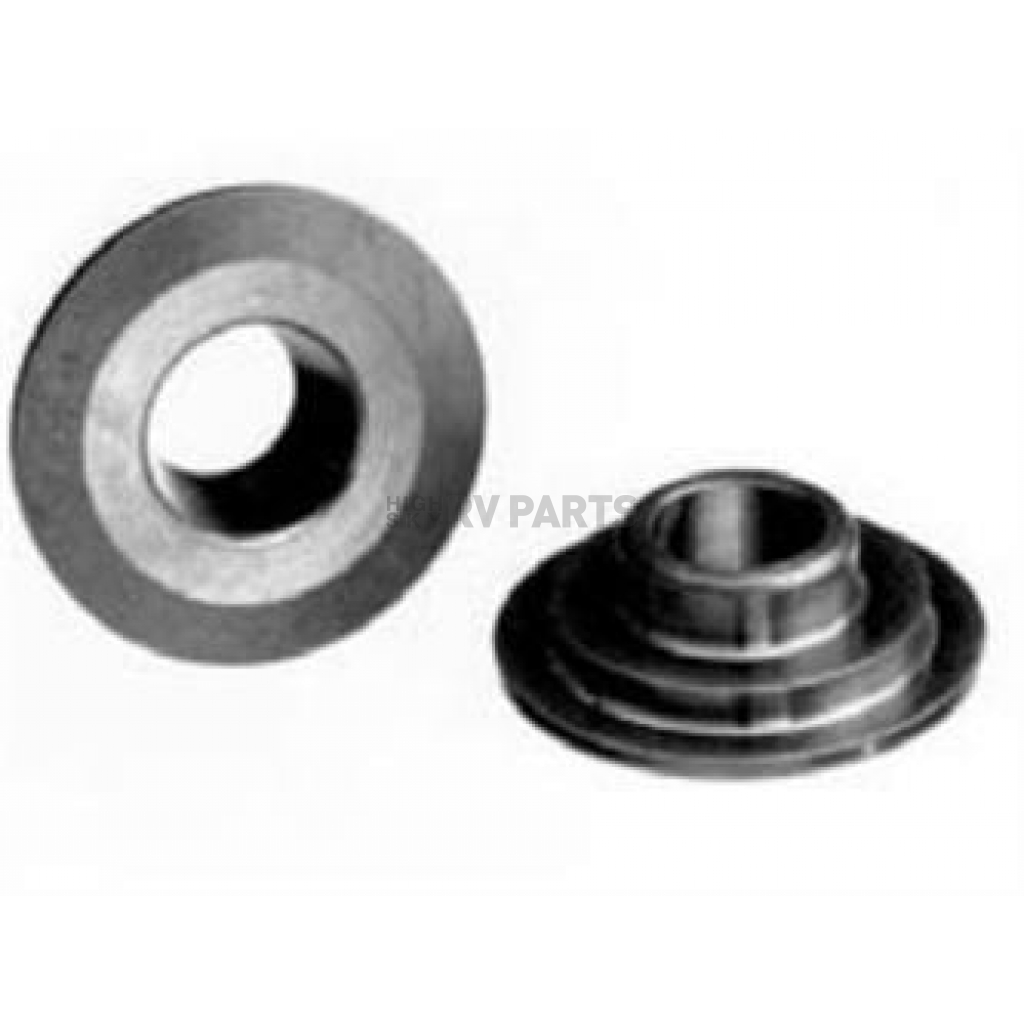

Crane Valve Spring Retainer

Valve Spring Retainer; Multi-Fit; 1.625-1.675 Inch Valve Spring Diameter; 1.500 Inch/ 1.118 Inch/ 0.860 Inch/ 0.620 Inch Retainer Dimensions; Adds 0.030 Installed Height With 5/16 Valves/ 0.055 Installed Height With 11/32 Valves/ 0.045 Installed Height With 3/8 Valves; 10 Degree Lock Angle; Triple Spring; All Valve Stem Sizes; Titanium; Set Of 2

MPN: 996362

Our Multi Fit 10 Degree retainers and locks differ from the conventional 10 Degree items, as we use a smaller outside diameter lock, enabling the retainer to have a greater cross section in the critical area separating the inner spring steps from the tapered center hole. This provides superior strength and stability when compared to the competition, and these retainers are designed for use only with our Multi Fit locks. Compatible locks are offered for 8 Millimeter, 5/16 Inch, 11/32 Inch and 3/8 Inch valve stems in standard square groove and bead groove configurations.
Material: Titanium
Lock Angle: 10 Degree
Valve Stem Size: 5/16 Inch/ 11/32 Inch/ 3/8 Inch
Spring Type: Triple
Valve Spring Diameter (IN): 1-5/8 To 1.675 Inch
Outer Diameter Of Retainer (IN): 1-1/2 Inch
Intermediate Diameter Of Retainer (IN): 1.118 Inch
Inner Diameter Of Retainer (IN): 0.86 Inch
Quantity: Set Of 2

Features

  • Provides Superior Strength And Stability When Compared To The Competition
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring Retainer - 996362
Inner Diameter Of Retainer (IN) 0.86 Inch
Intermediate Diameter Of Retainer (IN) 1.118 Inch
Lock Angle 10 Degree
Material Titanium
Outer Diameter Of Retainer (IN) 1-1/2 Inch
Quantity Set Of 2
Spring Type Triple
Valve Spring Diameter (IN) 1-5/8 To 1.675 Inch
Valve Stem Size 5/16 Inch/ 11/32 Inch/ 3/8 Inch
