Crane Valve Spring - 9989516

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9989516
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 15
Retail: $353.84
Price: $336.99
You Save: $16.85
Coil Bind Height (IN)
1.175 Inch
Includes Damper
Yes
Inside Diameter Of Inner Spring (IN)
0.754 Inch
Inside Diameter Of Outer Spring (IN)
1.14 Inch
Installed Height (IN)
1.9 Inch
Outside Diameter Of Outer Spring (IN)
1.54 Inch
Quantity
Set Of 16
Spring Rate
434 Pounds Per Inch
Type
Dual
Share this page

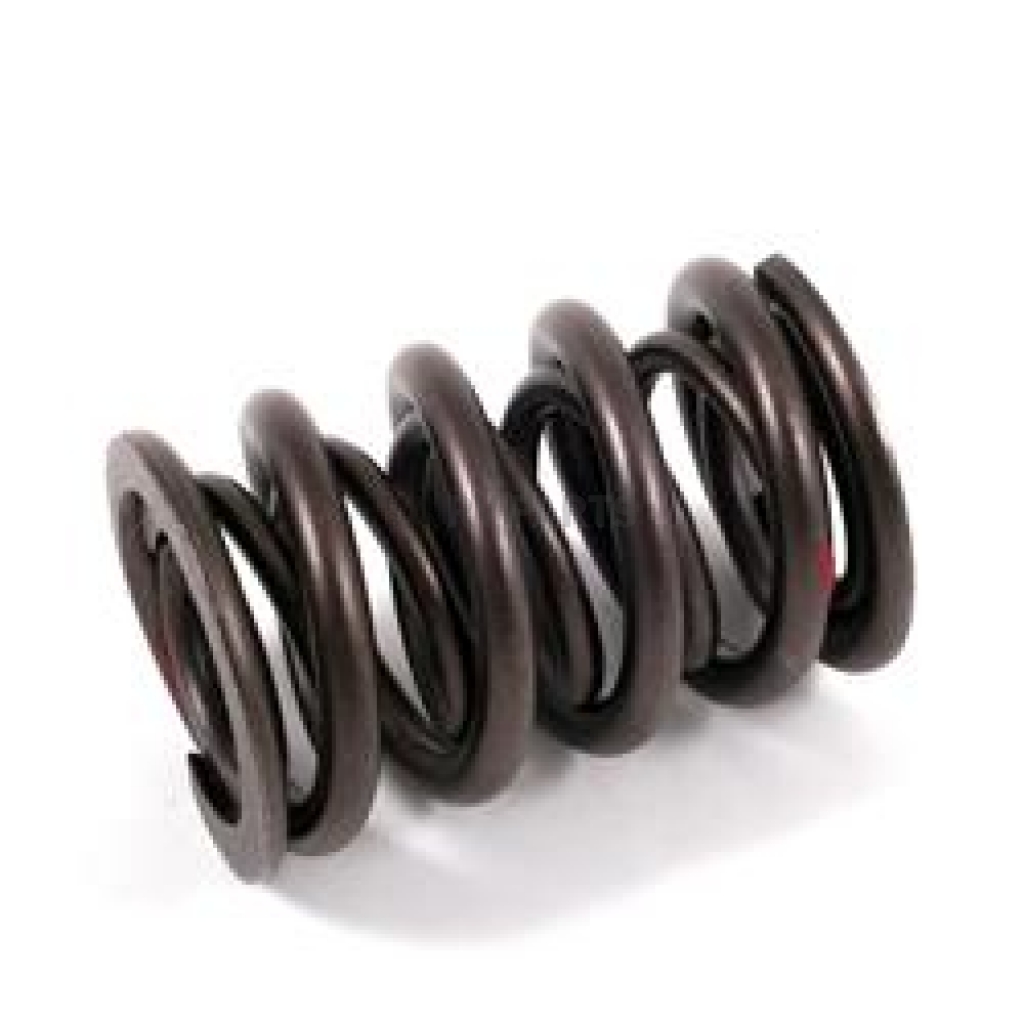

Crane Valve Spring

Valve Spring; For Use With Various Big Block Hydraulic Roller Applications; Double Spring; With Damper; 1.540 Inch Outside Diameter/ 0.754 Inch Inside Diameter; 434 Pounds Per Inch Spring Rate; 1.900 Inch Installed Height; Set Of 16

MPN: 9989516

Crane offers a huge variety of premium grade, harmonically controlled single, double and triple valve spring packages to provide the optimum pressure and installed height for most any application. Valve springs are at least as important as any other major performance component in an engine. At Crane, we design springs to maximize the performance of Crane Cams. In doing so, we put the resonant frequency outside of the intended operating range of the spring. At Crane Cams, we constantly test and evaluate various cam lobe profiles versus spring combinations, so that we can give you the right spring recommendations for your cam. By experimenting with various valve spring combinations you will probably find the most power for your money and/or time. In addition, you just might cure that “fuel system” or “ignition system” problem you thought you had!
Type: Dual
Includes Damper: Yes
Installed Height (IN): 1.9 Inch
Coil Bind Height (IN): 1.175 Inch
Inside Diameter Of Inner Spring (IN): 0.754 Inch
Inside Diameter Of Outer Spring (IN): 1.14 Inch
Outside Diameter Of Outer Spring (IN): 1.54 Inch
Spring Rate: 434 Pounds Per Inch
Quantity: Set Of 16

Features

  • Valve Springs Are Heat-Treated
  • Valve Springs Are Manufactured From Super Sophisticated Alloys Of Steel
  • Highly Stressed Design
  • Springs Are Designed To Maximize The Performance Of Crane Cams
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring - 9989516
Coil Bind Height (IN) 1.175 Inch
Includes Damper Yes
Inside Diameter Of Inner Spring (IN) 0.754 Inch
Inside Diameter Of Outer Spring (IN) 1.14 Inch
Installed Height (IN) 1.9 Inch
Outside Diameter Of Outer Spring (IN) 1.54 Inch
Quantity Set Of 16
Spring Rate 434 Pounds Per Inch
Type Dual
