Crane Valve Spring - 998902

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 998902
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $54.59
Price: $51.99
You Save: $2.60
Coil Bind Height (IN)
1.16 Inch
Engine Compatibility
Chevy Big Block V8 396-502 Cubic Inch
Includes Damper
Yes
Inside Diameter Of Inner Spring (IN)
0.766 Inch
Inside Diameter Of Outer Spring (IN)
1.116 Inch
Installed Height (IN)
1.9 Inch
Outside Diameter Of Outer Spring (IN)
1.53 Inch
Quantity
Set Of 2
Spring Rate
428 Pounds Per Inch
Type
Dual
Share this page

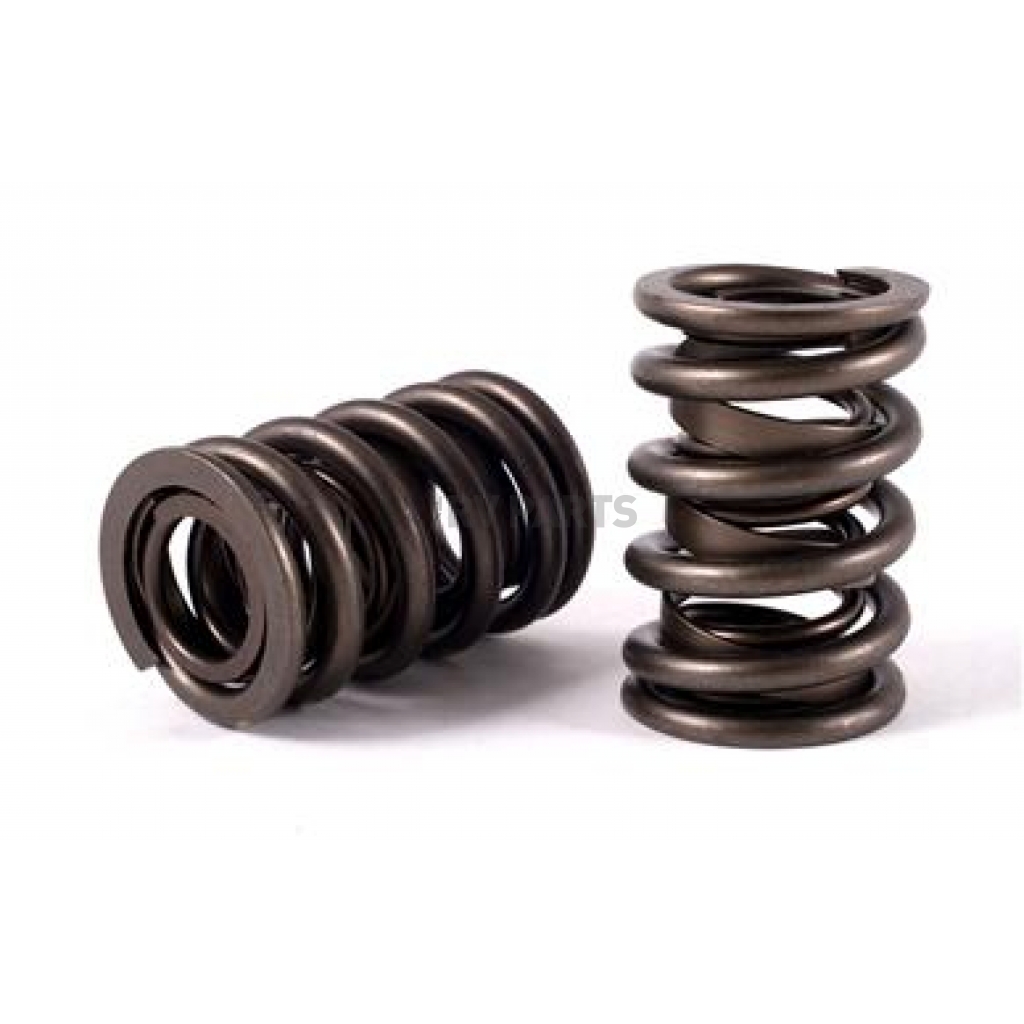

Crane Valve Spring

Valve Spring; For Use With Big Block Chevy Solid Flat Tappet Racing Cams/ Ford Hydraulic Roller Cams; Double Spring; With Damper; 1.530 Inch Outside Diameter/ 0.766 Inch Inside Diameter; 428 Pounds Per Inch Spring Rate; 1.900 Inch Installed Height; Set Of 2

MPN: 998902

Crane offers a huge variety of premium grade, harmonically controlled single, double and triple valve spring packages to provide the optimum pressure and installed height for most any application. Valve springs are at least as important as any other major performance component in an engine. At Crane, we design springs to maximize the performance of Crane Cams. In doing so, we put the resonant frequency outside of the intended operating range of the spring. At Crane Cams, we constantly test and evaluate various cam lobe profiles versus spring combinations, so that we can give you the right spring recommendations for your cam. By experimenting with various valve spring combinations you will probably find the most power for your money and/or time. In addition, you just might cure that “fuel system” or “ignition system” problem you thought you had!
Engine Compatibility: Chevy Big Block V8 396-502 Cubic Inch
Type: Dual
Includes Damper: Yes
Installed Height (IN): 1.9 Inch
Coil Bind Height (IN): 1.16 Inch
Inside Diameter Of Inner Spring (IN): 0.766 Inch
Inside Diameter Of Outer Spring (IN): 1.116 Inch
Outside Diameter Of Outer Spring (IN): 1.53 Inch
Spring Rate: 428 Pounds Per Inch
Quantity: Set Of 2

Features

  • Valve Springs Are Heat-Treated
  • Valve Springs Are Manufactured From Super Sophisticated Alloys Of Steel
  • Highly Stressed Design
  • Springs Are Designed To Maximize The Performance Of Crane Cams
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring - 998902
Coil Bind Height (IN) 1.16 Inch
Engine Compatibility Chevy Big Block V8 396-502 Cubic Inch
Includes Damper Yes
Inside Diameter Of Inner Spring (IN) 0.766 Inch
Inside Diameter Of Outer Spring (IN) 1.116 Inch
Installed Height (IN) 1.9 Inch
Outside Diameter Of Outer Spring (IN) 1.53 Inch
Quantity Set Of 2
Spring Rate 428 Pounds Per Inch
Type Dual
