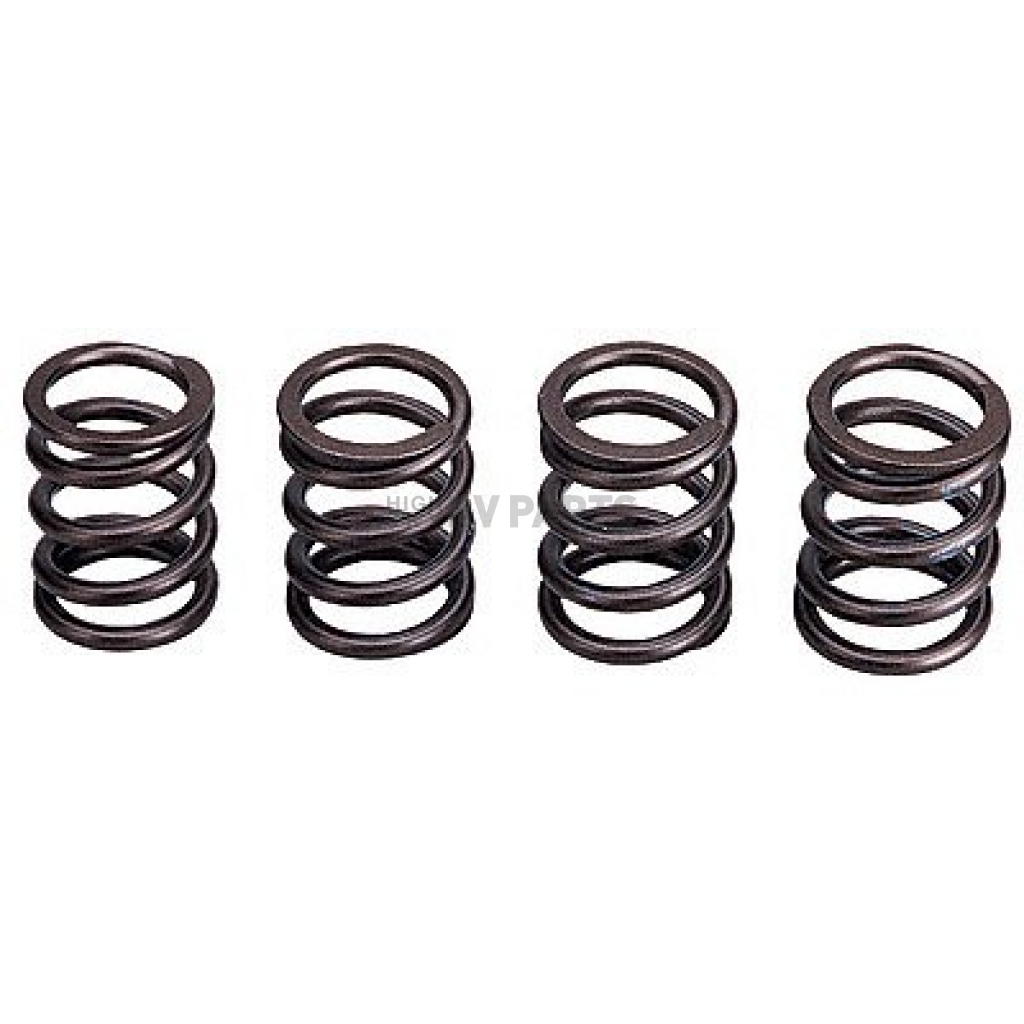

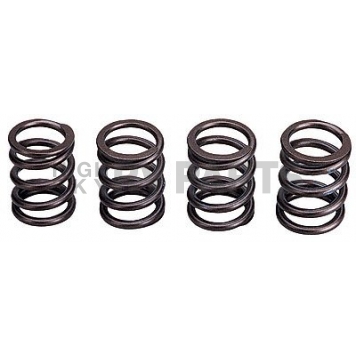

Crane Valve Spring - 9983816

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9983816
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $177.44
Price: $168.99
You Save: $8.45
Coil Bind Height (IN)
0.95 Inch
Engine Compatibility
Buick Big Block 400-455 Cubic Inch/Buick Small Block 215-350 Cubic Inch/Buick 364-401-425 Cubic Inch
Includes Damper
No
Inside Diameter Of Inner Spring (IN)
0.807 Inch
Inside Diameter Of Outer Spring (IN)
1.091 Inch
Installed Height (IN)
1.65 Inch
Outside Diameter Of Outer Spring (IN)
1.465 Inch
Quantity
Set Of 16
Spring Rate
438 Pounds Per Inch
Type
Dual
Share this page

Crane Valve Spring

Valve Spring; For Use With Buick V8 Engines; Dual Spring; 1.465 Inch Outside Diameter/ 1.091 Inch Inside Diameter; 438 Pounds Per Inch Spring Rate; 1.650 Inch Installed Height; Set Of 16

MPN: 9983816

Crane cams valve spring and retainer kits offer an easy, cost saving method of insuring that your performance camshaft installation has the correct, matched valve springs and retainers needed to deliver maximum performance. These springs are designed to allow the increased RPM and more aggressive valve train operation that allows a Crane performance cam installation to “wake up” even stock engines. Crane steel and titanium valve spring retainers are designed to correctly fit the supplied Crane springs. Best of all, most of these Crane valve spring and retainer kits can be easily installed with no cylinder head machining necessary.
Engine Compatibility: Buick Big Block 400-455 Cubic Inch/Buick Small Block 215-350 Cubic Inch/Buick 364-401-425 Cubic Inch
Type: Dual
Includes Damper: No
Installed Height (IN): 1.65 Inch
Coil Bind Height (IN): 0.95 Inch
Inside Diameter Of Inner Spring (IN): 0.807 Inch
Inside Diameter Of Outer Spring (IN): 1.091 Inch
Outside Diameter Of Outer Spring (IN): 1.465 Inch
Spring Rate: 438 Pounds Per Inch
Quantity: Set Of 16

Features

  • Provides The Optimum Pressure And Installed Height For Most Any Application
  • Easy To Install
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring - 9983816
Coil Bind Height (IN) 0.95 Inch
Engine Compatibility Buick Big Block 400-455 Cubic Inch/Buick Small Block 215-350 Cubic Inch/Buick 364-401-425 Cubic Inch
Includes Damper No
Inside Diameter Of Inner Spring (IN) 0.807 Inch
Inside Diameter Of Outer Spring (IN) 1.091 Inch
Installed Height (IN) 1.65 Inch
Outside Diameter Of Outer Spring (IN) 1.465 Inch
Quantity Set Of 16
Spring Rate 438 Pounds Per Inch
Type Dual
