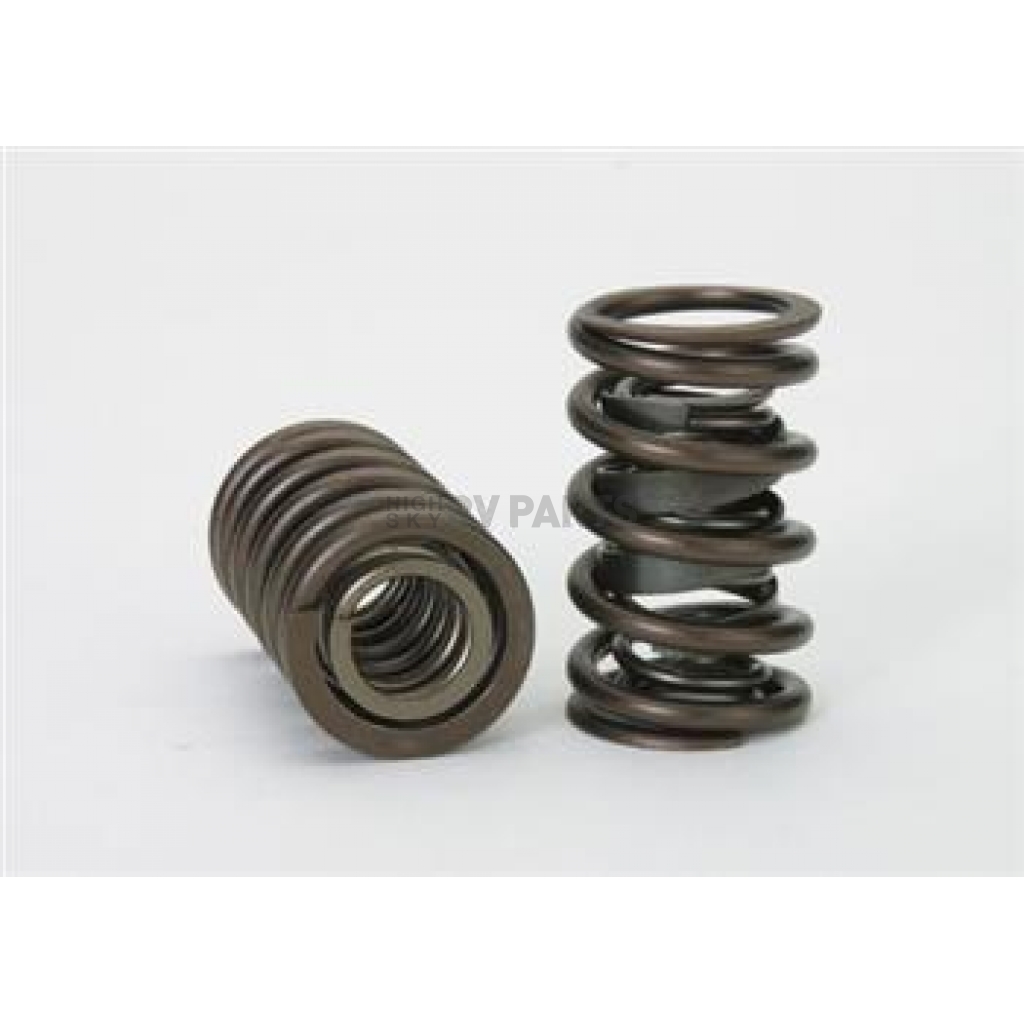

Crane Valve Spring - 9687416

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9687416
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $164.84
Price: $156.99
You Save: $7.85
Coil Bind Height (IN)
1.115 Inch
Engine Compatibility
Universal
Includes Damper
Yes
Inside Diameter Of Inner Spring (IN)
0.697 Inch
Inside Diameter Of Outer Spring (IN)
1.06 Inch
Installed Height (IN)
1.8 Inch
Outside Diameter Of Outer Spring (IN)
1.460 Inch
Quantity
Set Of 16
Spring Rate
322 Pounds Per Inch
Type
Dual
Share this page

Crane Valve Spring

Valve Spring; Universal; Dual Spring; Without Damper; 1.460 Inch Outside Diameter/ 1.060 Inch Inside Diameter; 322 Pounds Per Inch Spring Rate; 1.800 Inch Installed Height; Set Of 16

MPN: 9687416

Crane cams valve spring and retainer kits offer an easy, cost saving method of insuring that your performance camshaft installation has the correct, matched valve springs and retainers needed to deliver maximum performance. These springs are designed to allow the increased RPM and more aggressive valve train operation that allows a Crane performance cam installation to “wake up” even stock engines. Crane steel and titanium valve spring retainers are designed to correctly fit the supplied Crane springs. Best of all, most of these Crane valve spring and retainer kits can be easily installed with no cylinder head machining necessary.
Engine Compatibility: Universal
Type: Dual
Includes Damper: Yes
Installed Height (IN): 1.8 Inch
Coil Bind Height (IN): 1.115 Inch
Inside Diameter Of Inner Spring (IN): 0.697 Inch
Inside Diameter Of Outer Spring (IN): 1.06 Inch
Outside Diameter Of Outer Spring (IN): 1.460 Inch
Spring Rate: 322 Pounds Per Inch
Quantity: Set Of 16

Features

  • Provides The Optimum Pressure And Installed Height For Most Any Application
  • Easy To Install
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring - 9687416
Coil Bind Height (IN) 1.115 Inch
Engine Compatibility Universal
Includes Damper Yes
Inside Diameter Of Inner Spring (IN) 0.697 Inch
Inside Diameter Of Outer Spring (IN) 1.06 Inch
Installed Height (IN) 1.8 Inch
Outside Diameter Of Outer Spring (IN) 1.460 Inch
Quantity Set Of 16
Spring Rate 322 Pounds Per Inch
Type Dual
