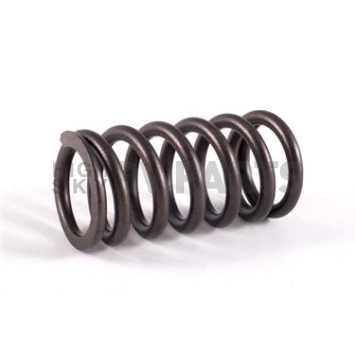

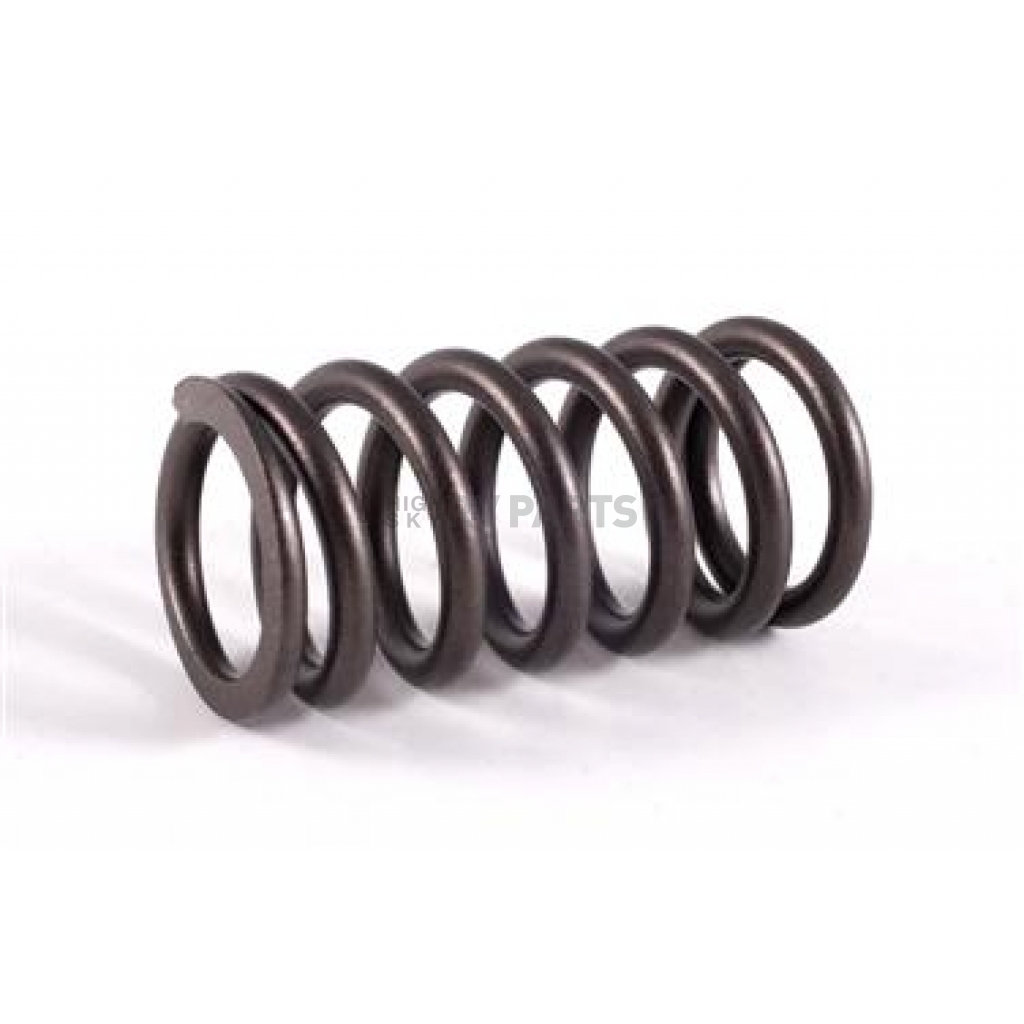

Crane Valve Spring - 968432

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 968432
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $15.74
Price: $14.99
You Save: $0.75
Includes Damper
No
Inside Diameter Of Outer Spring (IN)
0.697 Inch
Installed Height (IN)
1-1/2 Inch
Material
Steel
Outside Diameter Of Outer Spring (IN)
0.953 Inch
Quantity
Set Of 2
Spring Rate
132 Pounds Per Inch
Type
Single
Share this page

Crane Valve Spring

Valve Spring; For Use With Crane 96806 Or 96807 Outer Springs; Single Spring; Without Damper; 0.953 Inch Outside Diameter/ 0.697 Inch Inside Diameter; 132 Pounds Per Inch Spring Rate; 1.500 Inch Installed Height; Set Of 2

MPN: 968432

Crane offers a huge variety of premium grade, harmonically controlled single, double and triple valve spring packages to provide the optimum pressure and installed height for most any application. Valve springs are at least as important as any other major performance component in an engine. At Crane, we design springs to maximize the performance of Crane Cams. In doing so, we put the resonant frequency outside of the intended operating range of the spring. At Crane Cams, we constantly test and evaluate various cam lobe profiles versus spring combinations, so that we can give you the right spring recommendations for your cam. By experimenting with various valve spring combinations you will probably find the most power for your money and/or time. In addition, you just might cure that “fuel system” or “ignition system” problem you thought you had!
Type: Single
Material: Steel
Includes Damper: No
Installed Height (IN): 1-1/2 Inch
Inside Diameter Of Outer Spring (IN): 0.697 Inch
Outside Diameter Of Outer Spring (IN): 0.953 Inch
Spring Rate: 132 Pounds Per Inch
Quantity: Set Of 2

Features

  • Valve Springs Are Heat-Treated
  • Valve Springs Are Manufactured From Super Sophisticated Alloys Of Steel
  • Highly Stressed Design
  • Springs Are Designed To Maximize The Performance Of Crane Cams
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring - 968432
Includes Damper No
Inside Diameter Of Outer Spring (IN) 0.697 Inch
Installed Height (IN) 1-1/2 Inch
Material Steel
Outside Diameter Of Outer Spring (IN) 0.953 Inch
Quantity Set Of 2
Spring Rate 132 Pounds Per Inch
Type Single
