Crane Valve Spring - 9612282

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9612282
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $83.99
Price: $79.99
You Save: $4.00
Includes Damper
No
Inside Diameter Of Inner Spring (IN)
0.851 Inch
Installed Height (IN)
2.100 Inch
Material
Steel
Outside Diameter Of Outer Spring (IN)
1-5/8 Inch
Quantity
Set Of 2
Spring Rate
629 Pounds Per Inch
Type
Dual
Share this page

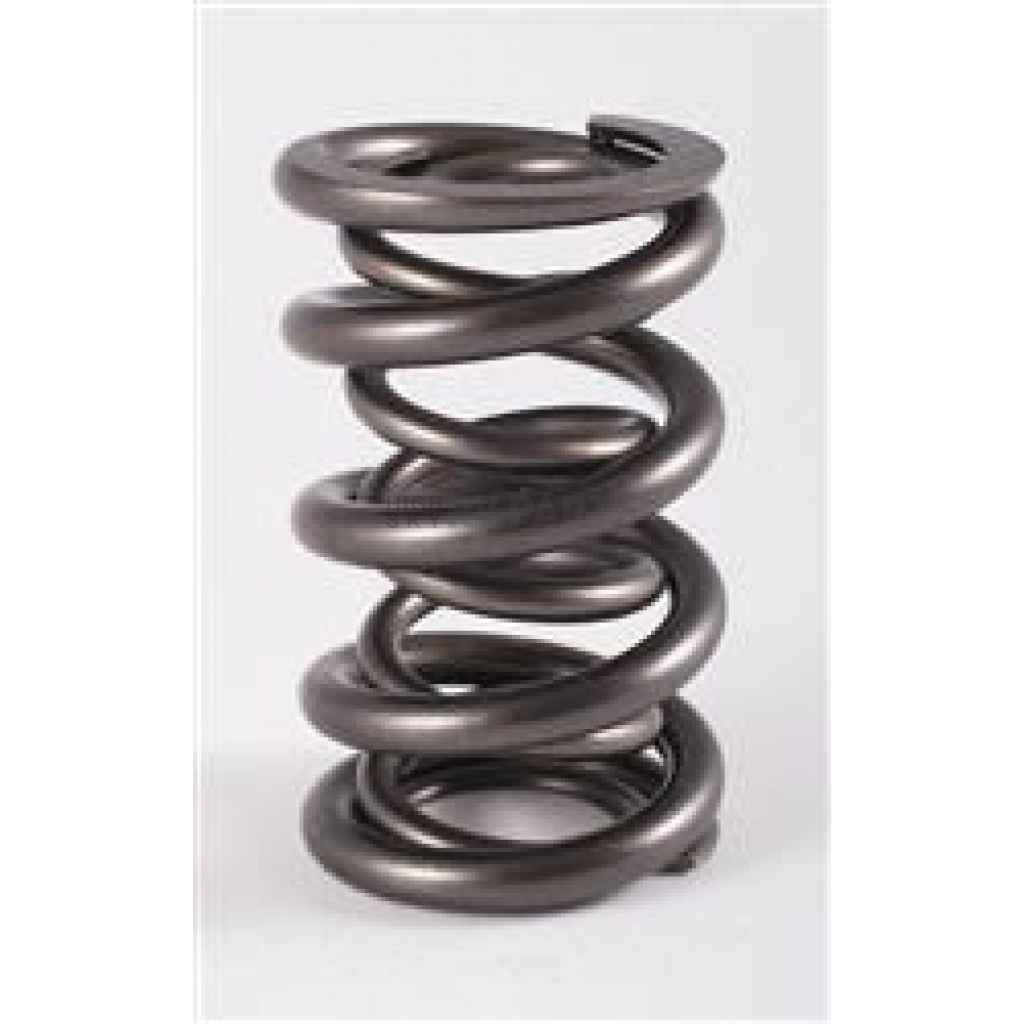

Crane Valve Spring

Valve Spring; For Use With Bracket Race Applications; Pacaloy Wire; Double Spring; Without Damper; 1.625 Inch Outside Diameter/ 0.851 Inch Inside Diameter; 629 Pounds Per Inch Spring Rate; 2.100 Inch Installed Height; Set Of 2

MPN: 9612282

Crane offers a huge variety of premium grade, harmonically controlled single, double and triple valve spring packages to provide the optimum pressure and installed height for most any application. Valve springs are at least as important as any other major performance component in an engine. At Crane, we design springs to maximize the performance of Crane Cams. In doing so, we put the resonant frequency outside of the intended operating range of the spring. At Crane Cams, we constantly test and evaluate various cam lobe profiles versus spring combinations, so that we can give you the right spring recommendations for your cam. By experimenting with various valve spring combinations you will probably find the most power for your money and/or time. In addition, you just might cure that “fuel system” or “ignition system” problem you thought you had!
Type: Dual
Material: Steel
Includes Damper: No
Installed Height (IN): 2.100 Inch
Inside Diameter Of Inner Spring (IN): 0.851 Inch
Outside Diameter Of Outer Spring (IN): 1-5/8 Inch
Spring Rate: 629 Pounds Per Inch
Quantity: Set Of 2

Features

  • Valve Springs Are Heat-Treated
  • Valve Springs Are Manufactured From Super Sophisticated Alloys Of Steel
  • Highly Stressed Design
  • Springs Are Designed To Maximize The Performance Of Crane Cams
  • No Supplier Warranty
Specifications of Crane Valve Spring - 9612282
Includes Damper No
Inside Diameter Of Inner Spring (IN) 0.851 Inch
Installed Height (IN) 2.100 Inch
Material Steel
Outside Diameter Of Outer Spring (IN) 1-5/8 Inch
Quantity Set Of 2
Spring Rate 629 Pounds Per Inch
Type Dual
