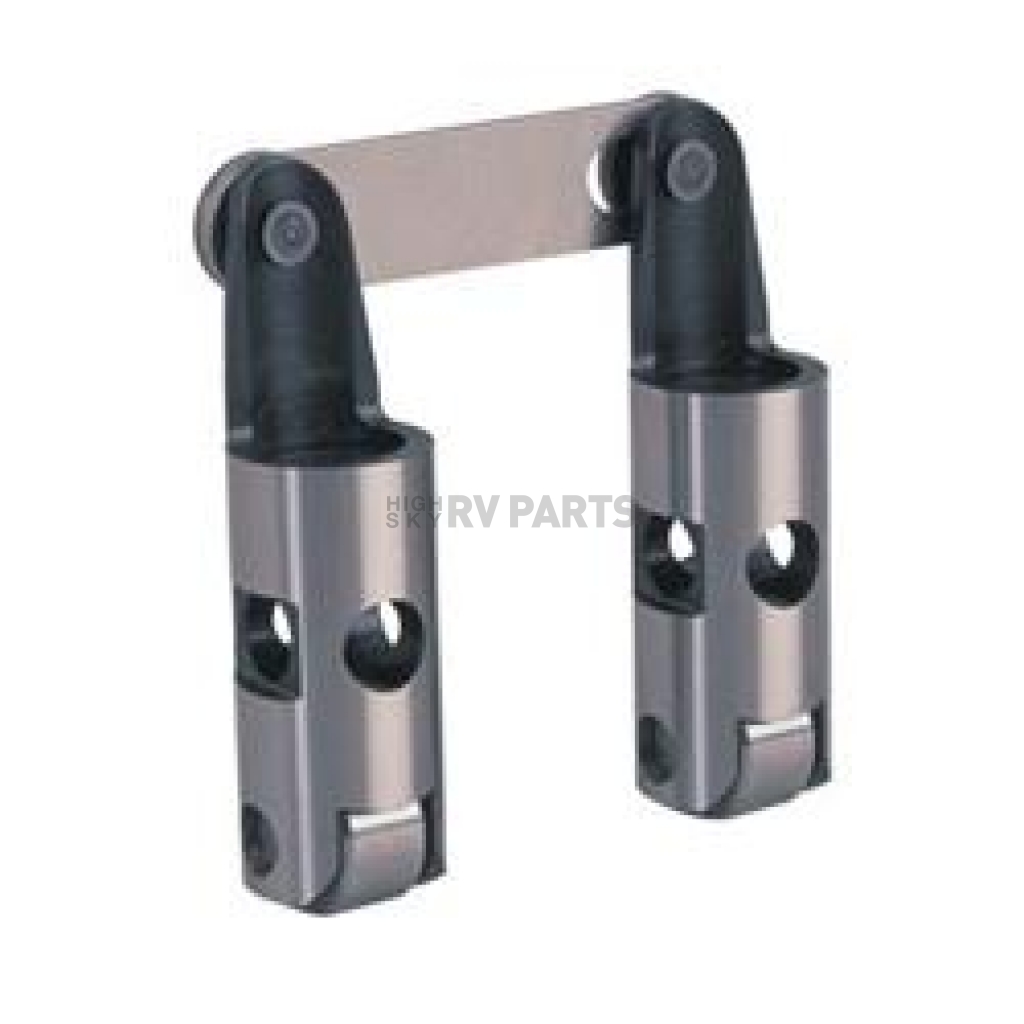

Crane Valve Lifter - 1157316

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 1157316
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 16
Retail: $1,137.14
Price: $1,082.99
You Save: $54.15
Diameter (IN)
0.874 Inch
Engine Compatibility
Chevy 90 Degree V6 4.3L 262 Cubic Inch
Includes Link Bar
No
Quantity
Set Of 16
Seat Height (IN)
1.575 Inch
Seat Location
Offset
Type
Mechanical Roller
Share this page

Crane Valve Lifter

Valve Lifter; Ultra Pro; Small Block Chevy Engines; Mechanical Roller; 0.874 Inch Body Diameter; 1.575 Inch Seat Height; Vertical Locking Bar; Set Of 16

MPN: 1157316

The Ultra-Pro™ Series is without a doubt the best roller lifter available today. They are engineered to operate flawlessly in ultra-high spring pressure environments, and designed for use with the most radical camshaft profiles. The bodies are FEA-engineered to provide an optimum balance of superior strength at minimum weight. Crane's race-proven Bearing-Focused™ oil system features small channels in the lifter body to lubricate the needle bearings. The roller wheel/bearing/axle combinations are optimized per lifter diameter.
Engine Compatibility: Chevy 90 Degree V6 4.3L 262 Cubic Inch
Type: Mechanical Roller
Diameter (IN): 0.874 Inch
Seat Height (IN): 1.575 Inch
Seat Location: Offset
Includes Link Bar: No
Quantity: Set Of 16

Features

  • Ultra Pro-Series Lifters Feature Maximized Lifter Bore Contact Surfaces For Less Wear
  • Weight Removed From Non-Critical Areas, Increased Body Stiffness, And Premium Materials Chosen Wherever Necessary
  • Carburized 8620 Steel Bodies, Upgraded Materials And Metal Processing For The Roller Wheels, Needle Bearings, And Axles
  • A New Guide Bar Attachment System Incorporates A Retaining Button In Conjunction With An Aerospace Quality Monel Pin To Provide Superior Clamping Forces And Resistance To Wear
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Lifter - 1157316
Diameter (IN) 0.874 Inch
Engine Compatibility Chevy 90 Degree V6 4.3L 262 Cubic Inch
Includes Link Bar No
Quantity Set Of 16
Seat Height (IN) 1.575 Inch
Seat Location Offset
Type Mechanical Roller

1900 Chevrolet Small Block 1955-1986

1900 Chevrolet Small Block 1987-1998 (OE Roller)
