Crane Engine Pushrod - 9563016

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9563016
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $217.34
Price: $206.99
You Save: $10.35
Bottom Tip Diameter (IN)
5/16 Inch
Bottom Tip Style
Ball
For Use With Guideplates
Yes
Heat-Treated
Yes
Material
Chromemoly
Oiling
No
One-Piece Push Rod
Yes
Overall Length (IN)
7-1/2 Inch
Quantity
Set Of 16
Recommended Use
Universal
Tapered
No
Share this page

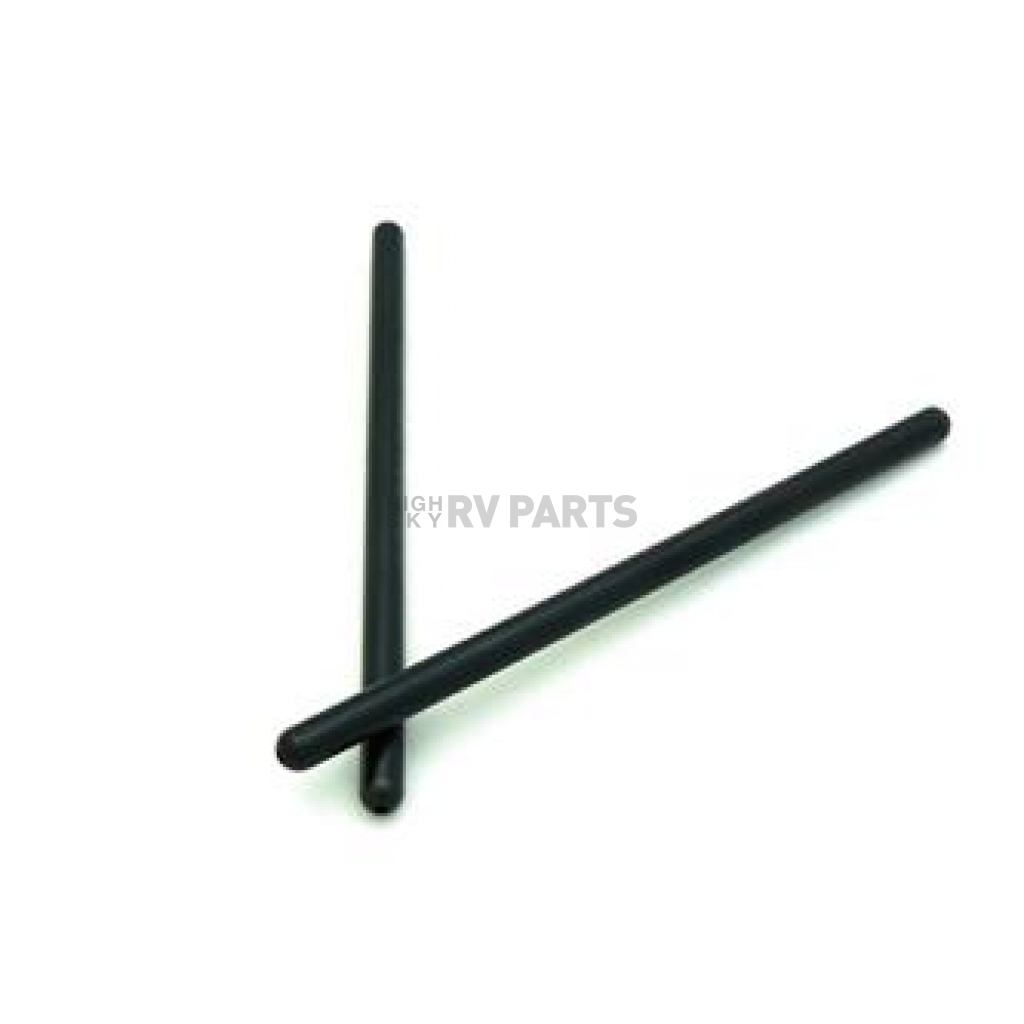

Crane Engine Pushrod

Engine Pushrod; Pro Series; Universal; 5/16 Inch Diameter; 7.500 Inch Length; Set Of 16

MPN: 9563016

Crane Cams precision manufactures high strength tubular steel pushrods for almost any engine. These pushrods are available in any length, diameter of tubing, type of ends, with or without heat treating. Crane Pro-Series One-Piece Pushrods are cold-forged, die formed, heat treated.
Recommended Use: Universal
Quantity: Set Of 16
Tubing Diameter (IN): 5/16 Inch
Tapered: No
Top Tip Diameter (IN): 5/16 Inch
Top Tip Style: Ball
Bottom Tip Diameter (IN): 5/16 Inch
Bottom Tip Style: Ball
Overall Length (IN): 7-1/2 Inch
One-Piece Push Rod: Yes
Material: Chromemoly
Heat-Treated: Yes
Oiling: No
For Use With Guideplates: Yes
Tip Attachment: Formed

Features

  • One-Piece Pushrods Are Cold-Forged, With A Precisely Formed End That Is Actually Stronger Than The Tubing Wall
  • Pushrods Are Made From Aircraft Quality, 0.080 Inch Wall, 4130 Chromemoly Steel Tubing
  • Finished Overall Length Is Accurate To Within +/- 0.005 Inch Per Pushrod
  • Heat Treated For Use With Or Without Pushrod Guideplates
  • Each Pushrod Is Laser Etched With Its Overall Length For Quick Identification
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Engine Pushrod - 9563016
Bottom Tip Diameter (IN) 5/16 Inch
Bottom Tip Style Ball
For Use With Guideplates Yes
Heat-Treated Yes
Material Chromemoly
Oiling No
One-Piece Push Rod Yes
Overall Length (IN) 7-1/2 Inch
Quantity Set Of 16
Recommended Use Universal
Tapered No
Tip Attachment Formed
Top Tip Diameter (IN) 5/16 Inch
Top Tip Style Ball
Tubing Diameter (IN) 5/16 Inch
