COMP Cams Valve Stem Seal - 505-12
Material
Teflon
Quantity
Set Of 12
Type
Positive Stop
Valve Guide Diameter
0.53 Inch
Valve Stem Diameter
3/8 Inch
Share this page

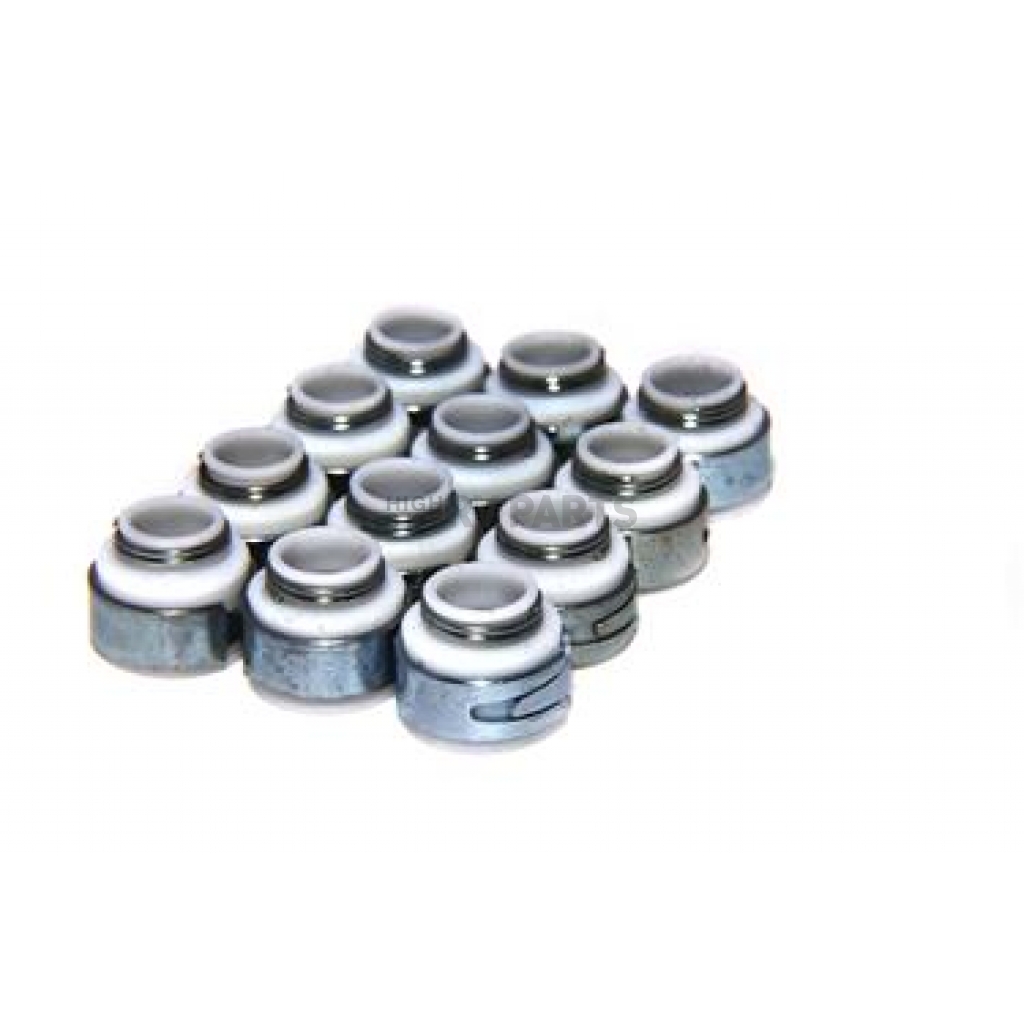

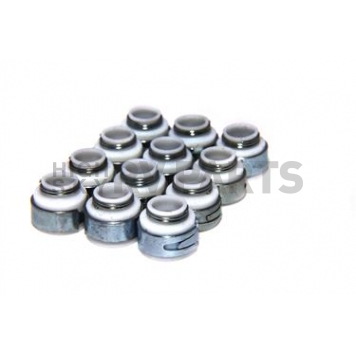

COMP Cams Valve Stem Seal
Valve Stem Seal; Positive Stop; Teflon; 3/8 Inch Valve Stem Diameter; 0.530 Inch Guide Outside Diameter; Set of 12
MPN: 50512
COMP Cams® offers a complete line of valve stem seals, from the stock GM O-Ring to the positive-stop Teflon seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The O-Ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop Teflon seal is used. We also have a smaller diameter Viton seal available for triple spring applications. Both the O-Ring and the umbrella seals require no machining, but with the Teflon seal it is necessary to disassemble the heads and machine the top of the guide with a special 0.53 Inch diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals.
Type: Positive Stop
Material: Teflon
Valve Stem Diameter: 3/8 Inch
Valve Guide Diameter: 0.53 Inch
Quantity: Set Of 12
Features
- Limited 1 Year Warranty
| Specifications of COMP Cams Valve Stem Seal - 505-12 | |
| Material | Teflon |
| Quantity | Set Of 12 |
| Type | Positive Stop |
| Valve Guide Diameter | 0.53 Inch |
| Valve Stem Diameter | 3/8 Inch |
