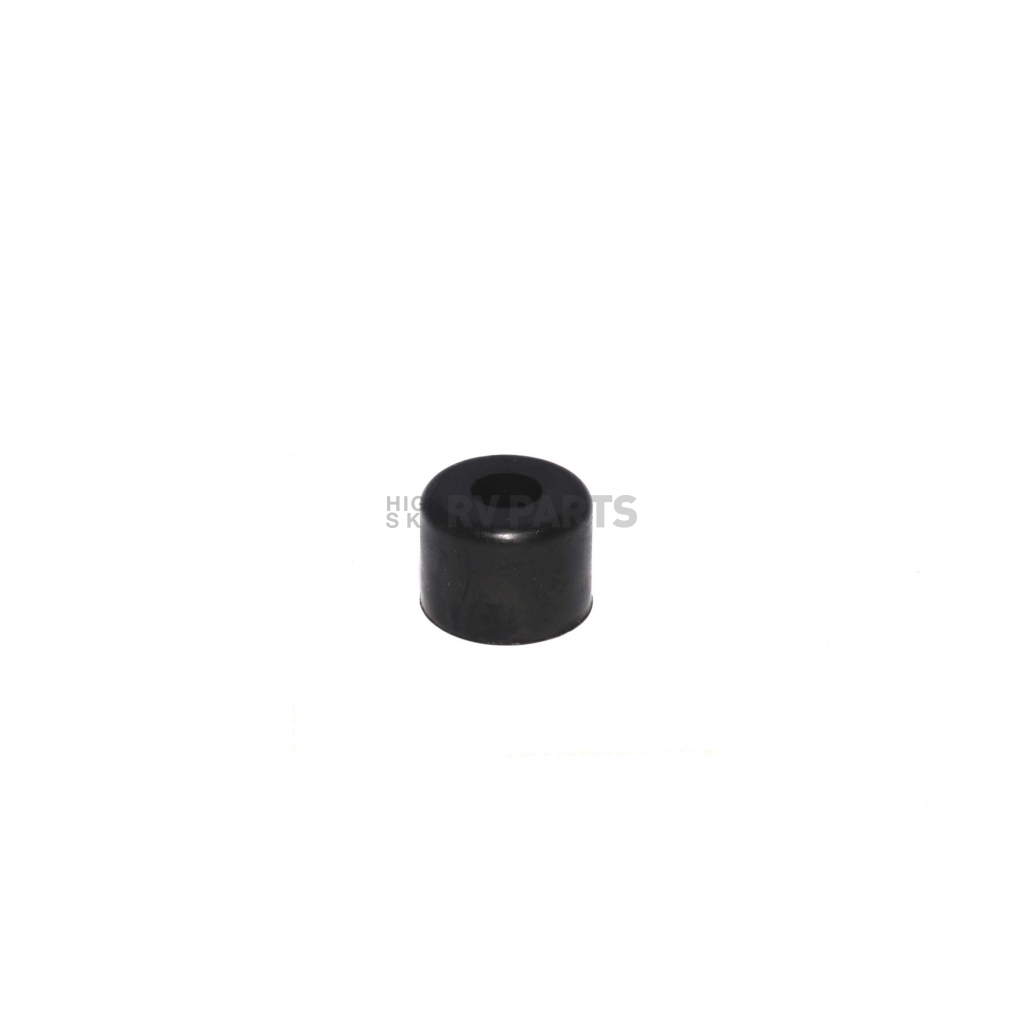

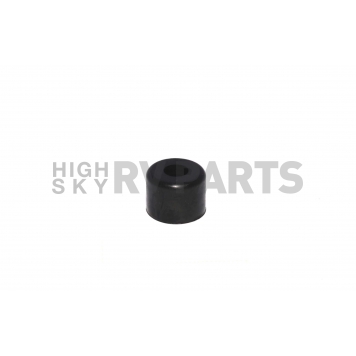

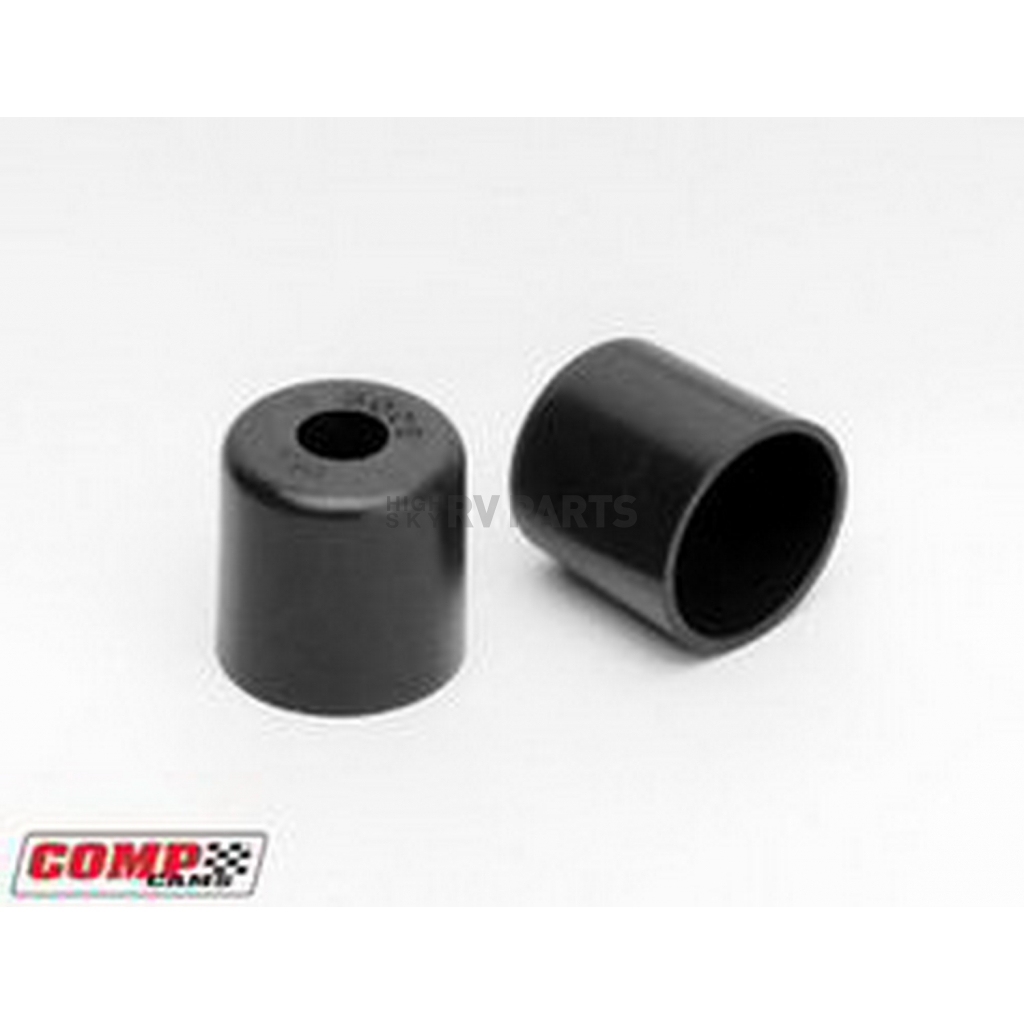

COMP Cams Valve Stem Seal - 504-1
Material
Rubber
Outside Diameter
0.88 Inch
Quantity
Single
Type
Umbrella
Valve Guide Diameter
Stock
Valve Stem Diameter
3/8 Inch
Share this page
COMP Cams Valve Stem Seal
Valve Stem Seal; Umbrella; Rubber; 3/8 Inch Valve Stem Diameter; Stock Guide Outside Diameter; Single
MPN: 5041
COMP Cams® offers a complete line of valve stem seals, from the stock GM O-Ring to the positive-stop Teflon seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The O-Ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop Teflon seal is used. We also have a smaller diameter Viton seal available for triple spring applications. Both the O-Ring and the umbrella seals require no machining, but with the Teflon seal it is necessary to disassemble the heads and machine the top of the guide with a special 0.53 Inch diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals.
Type: Umbrella
Material: Rubber
Outside Diameter: 0.88 Inch
Valve Stem Diameter: 3/8 Inch
Valve Guide Diameter: Stock
Quantity: Single
Features
- Limited 1 Year Warranty
| Specifications of COMP Cams Valve Stem Seal - 504-1 | |
| Material | Rubber |
| Outside Diameter | 0.88 Inch |
| Quantity | Single |
| Type | Umbrella |
| Valve Guide Diameter | Stock |
| Valve Stem Diameter | 3/8 Inch |
