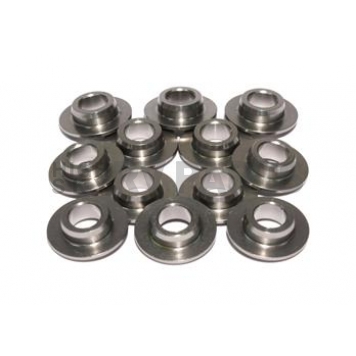

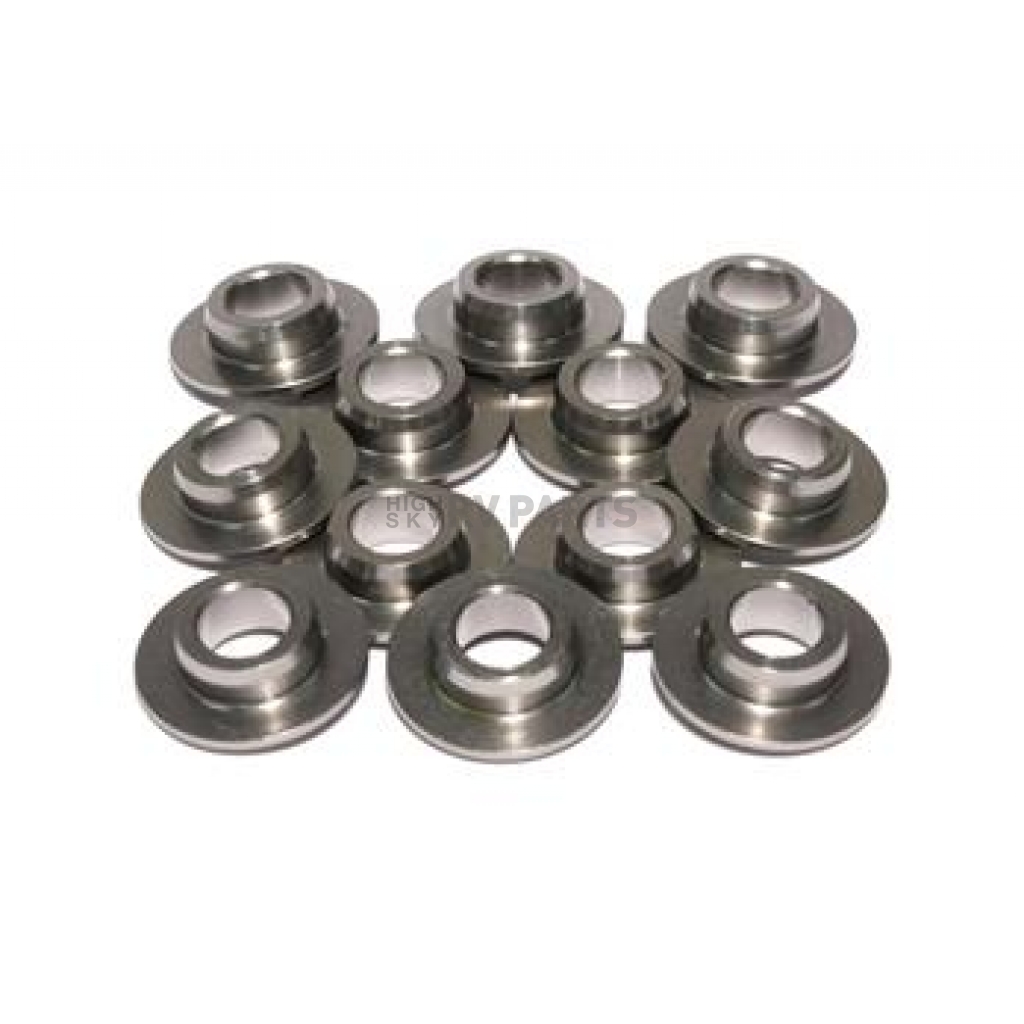

COMP Cams Valve Spring Retainer - 772-12

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 772-12
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 13
Retail: $323.39
Price: $307.99
You Save: $15.40
Inner Diameter Of Retainer (IN)
0.64 Inch
Intermediate Diameter Of Retainer (IN)
Not Applicable
Lock Angle
7 Degree
Material
Titanium 6AL4V Alloy
Outer Diameter Of Retainer (IN)
1.03 Inch
Quantity
Set Of 12
Spring Type
Single
Valve Spring Diameter (IN)
1.055 Inch
Valve Stem Size
8 Millimeter
Share this page

COMP Cams Valve Spring Retainer

Valve Spring Retainer; 1.055 Inch Valve Spring Diameter; 1.030 Inch/ 0.640 Inch Retainer Diameters; 7 Degree Lock Angle; Single Spring; 8 Millimeter Valve Stem; Set of 12

MPN: 77212

Upgrading to COMP Cams(R) titanium Valve Spring retainers will often allow you to gain speed and power because titanium retainers are lighter and stronger than most Steel ones. Additionally, our Super Lock™ titanium design gives you confidence. No longer will you be preoccupied with splitting a retainer and tearing up an Engine when turning 10,000 RPM. COMP Cams(R) titanium retainers are made from the finest 6AL4V alloy for maximum stiffness and minimal warpage. The 6AL4V alloy is heat treated and processed to a stringent tolerance that makes it so strong that it is even used in the aircraft industry. Other manufacturers purchase titanium from metal brokers and produce “cheap” retainers, but COMP Cams(R) titanium retainers will not deform. From a standing idle to the most extreme RPM, our titanium retainers perform flawlessly and without compromise. Better material consistency, superior grain structure, bullet proof durability and designed for both 7 Degree and 10 Degree lock angles.
Material: Titanium 6AL4V Alloy
Lock Angle: 7 Degree
Valve Stem Size: 8 Millimeter
Spring Type: Single
Valve Spring Diameter (IN): 1.055 Inch
Outer Diameter Of Retainer (IN): 1.03 Inch
Intermediate Diameter Of Retainer (IN): Not Applicable
Inner Diameter Of Retainer (IN): 0.64 Inch
Quantity: Set Of 12

Features

  • Inspected According To Tough Military Specs Using A Digital Coordinate Measuring Machine
  • 6AL4V Alloy For Maximum Strength And Toughness
  • Precision Machined For Optimum Load Distribution And Greater Strength
  • Works Best With Comp Cams® Valve Locks And Optional Lash Caps For An Unbeatable Combination
  • Precision Machined Using Tight Tolerances
  • Valve Angle Section Is Ball Checked To Ensure Consistent Spring Setup Heights
  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring Retainer - 772-12
Inner Diameter Of Retainer (IN) 0.64 Inch
Intermediate Diameter Of Retainer (IN) Not Applicable
Lock Angle 7 Degree
Material Titanium 6AL4V Alloy
Outer Diameter Of Retainer (IN) 1.03 Inch
Quantity Set Of 12
Spring Type Single
Valve Spring Diameter (IN) 1.055 Inch
Valve Stem Size 8 Millimeter
