COMP Cams Valve Spring Locator - 4784-16

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 4784-16
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $89.24
Price: $84.99
You Save: $4.25
Inner Spring Diameter (IN)
0.735 Inch
Inside Diameter (IN)
0.57 Inch
Locating Shoulder Type
Inside Diameter Locator
Material
Steel
Outside Diameter (IN)
1-1/2 Inch
Quantity
Set Of 16
Thickness (IN)
0.06 Inch
Share this page

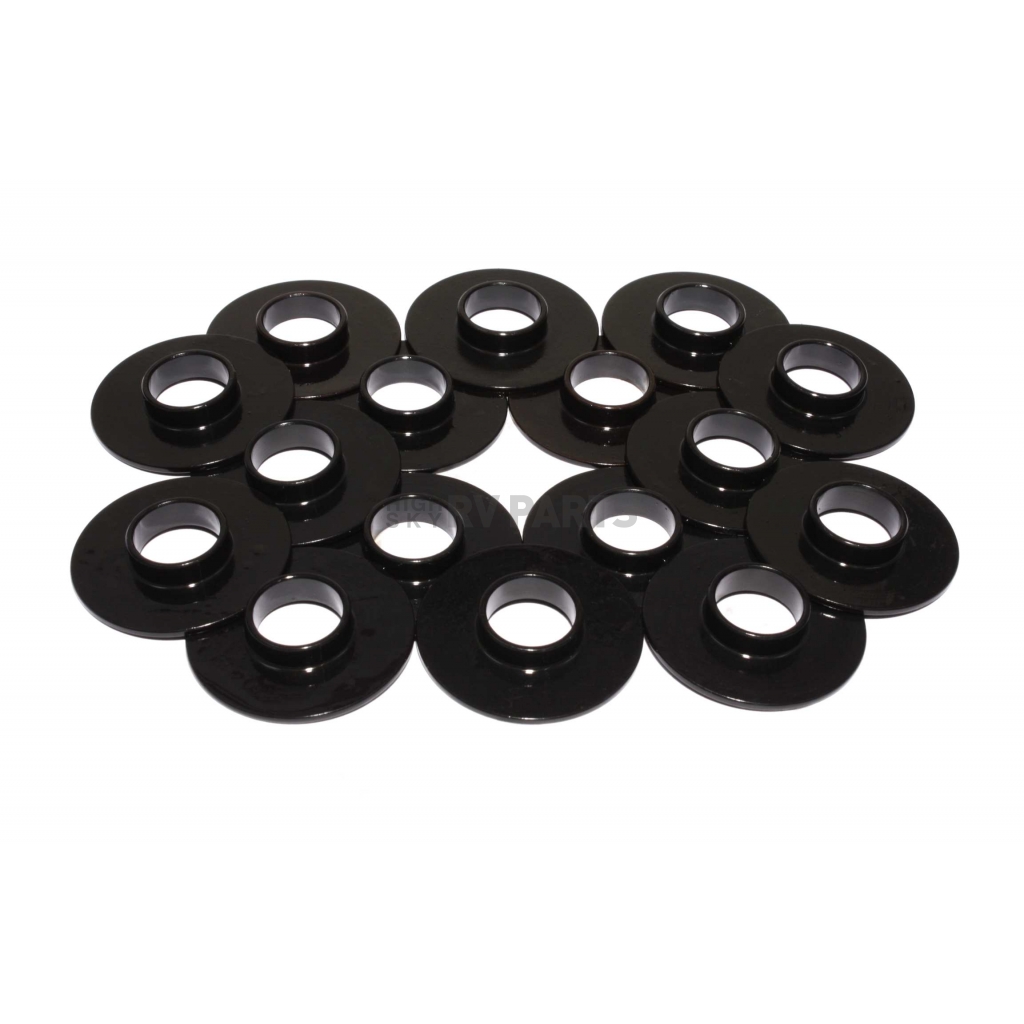

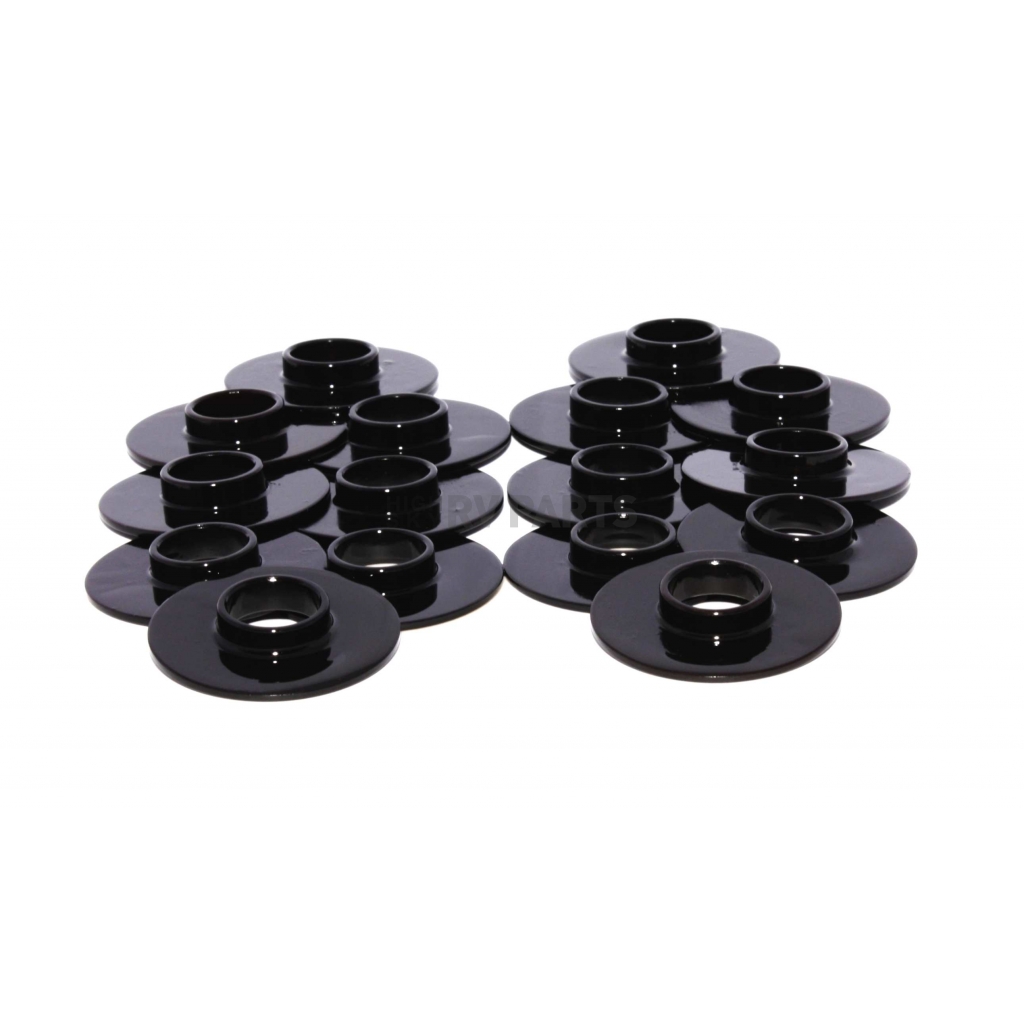

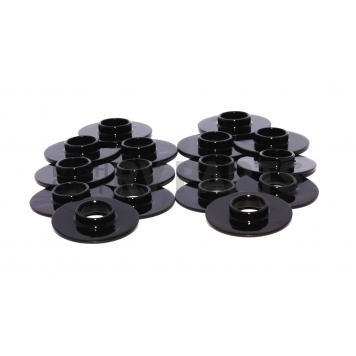

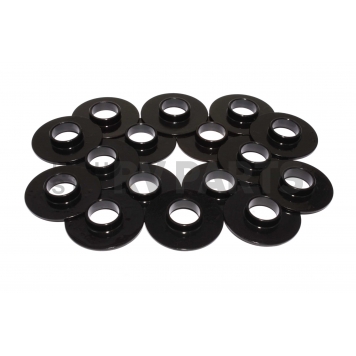

COMP Cams Valve Spring Locator

Valve Spring Locator; Inside Diameter Locator; 0.735 Inch Diameter of Spring; 0.060 Inch Thick; Steel; Set of 16

MPN: 478416

The old standard Shims will not hold up to the extreme Spring pressures and high RPM in today’s race Engines. COMP Cams® offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the Spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP® now offers an Inside Diameter locator with the locating shoulder on the inside, as well as the Spring cup.
Locating Shoulder Type: Inside Diameter Locator
Inner Spring Diameter (IN): 0.735 Inch
Inside Diameter (IN): 0.57 Inch
Outside Diameter (IN): 1-1/2 Inch
Thickness (IN): 0.06 Inch
Material: Steel
Quantity: Set Of 16

Features

  • Provide A Thin, Hardened Steel Alloy Seat That Will Not Only Protect The Head And Shim, But Also Locate And Hold The Spring In Place
  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring Locator - 4784-16
Inner Spring Diameter (IN) 0.735 Inch
Inside Diameter (IN) 0.57 Inch
Locating Shoulder Type Inside Diameter Locator
Material Steel
Outside Diameter (IN) 1-1/2 Inch
Quantity Set Of 16
Thickness (IN) 0.06 Inch
