COMP Cams Valve Spring Locator - 4713-100

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 4713-100
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 08
Retail: $733.94
Price: $698.99
You Save: $34.95
Inner Spring Diameter (IN)
1-1/8 Inch
Inside Diameter (IN)
0.535 Inch
Locating Shoulder Type
Inside Diameter Locator
Material
Steel
Outside Diameter (IN)
1.565 Inch
Quantity
Set Of 100
Thickness (IN)
0.1 Inch
Share this page

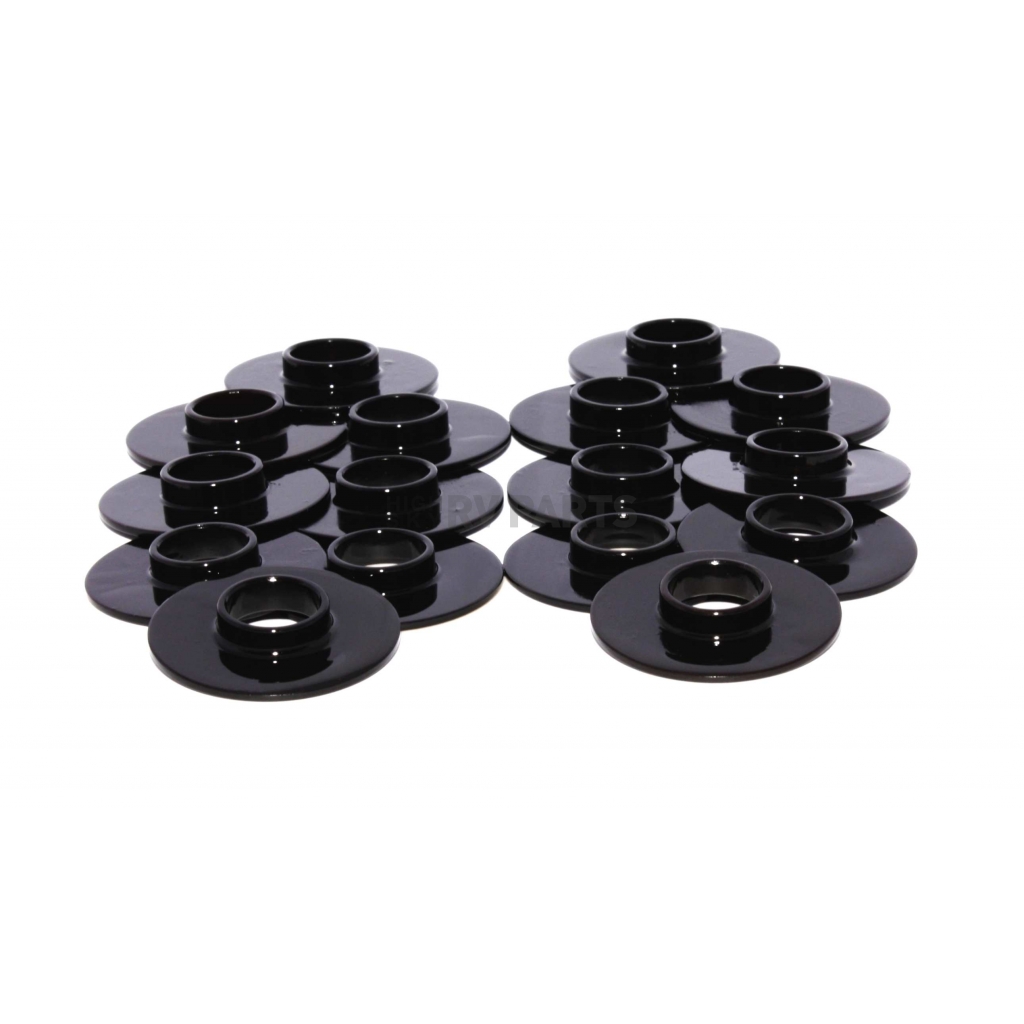

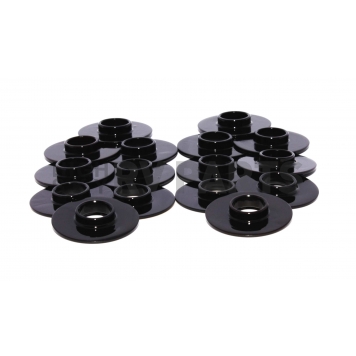

COMP Cams Valve Spring Locator

Valve Spring Locator; Inside Diameter Locator; 1.125 Inch Inside Diameter of Spring; 0.100 Inch Thick; Steel; Set of 100

MPN: 4713100

As with all other parts in the Valve Train, the area where the Spring sits also takes a beating. The old standard Shims simply will not hold up to the extreme Spring pressures and high RPMs found in racing Engines being built today. COMP Cams® offers a simple but effective solution to this nasty problem. A thin, hardened Steel alloy seat which will not only protect the head and shim, but also locate and hold the Spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup. A new cup with the locating shoulder on the inside is now available.
Locating Shoulder Type: Inside Diameter Locator
Inner Spring Diameter (IN): 1-1/8 Inch
Inside Diameter (IN): 0.535 Inch
Outside Diameter (IN): 1.565 Inch
Thickness (IN): 0.1 Inch
Material: Steel
Quantity: Set Of 100

Features

  • Provide A Thin, Hardened Steel Alloy Seat That Will Not Only Protect The Head And Shim, But Also Locate And Hold The Spring In Place
  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring Locator - 4713-100
Inner Spring Diameter (IN) 1-1/8 Inch
Inside Diameter (IN) 0.535 Inch
Locating Shoulder Type Inside Diameter Locator
Material Steel
Outside Diameter (IN) 1.565 Inch
Quantity Set Of 100
Thickness (IN) 0.1 Inch
