COMP Cams Valve Spring Locator - 4704-1

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 4704-1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $23.09
Price: $21.99
You Save: $1.10
Inside Diameter (IN)
0.64 Inch
Locating Shoulder Type
Spring Cup
Material
Steel
Outer Spring Diameter (IN)
1.475 Inch
Outside Diameter (IN)
1.57 Inch
Quantity
Single
Thickness (IN)
0.06 Inch
Share this page

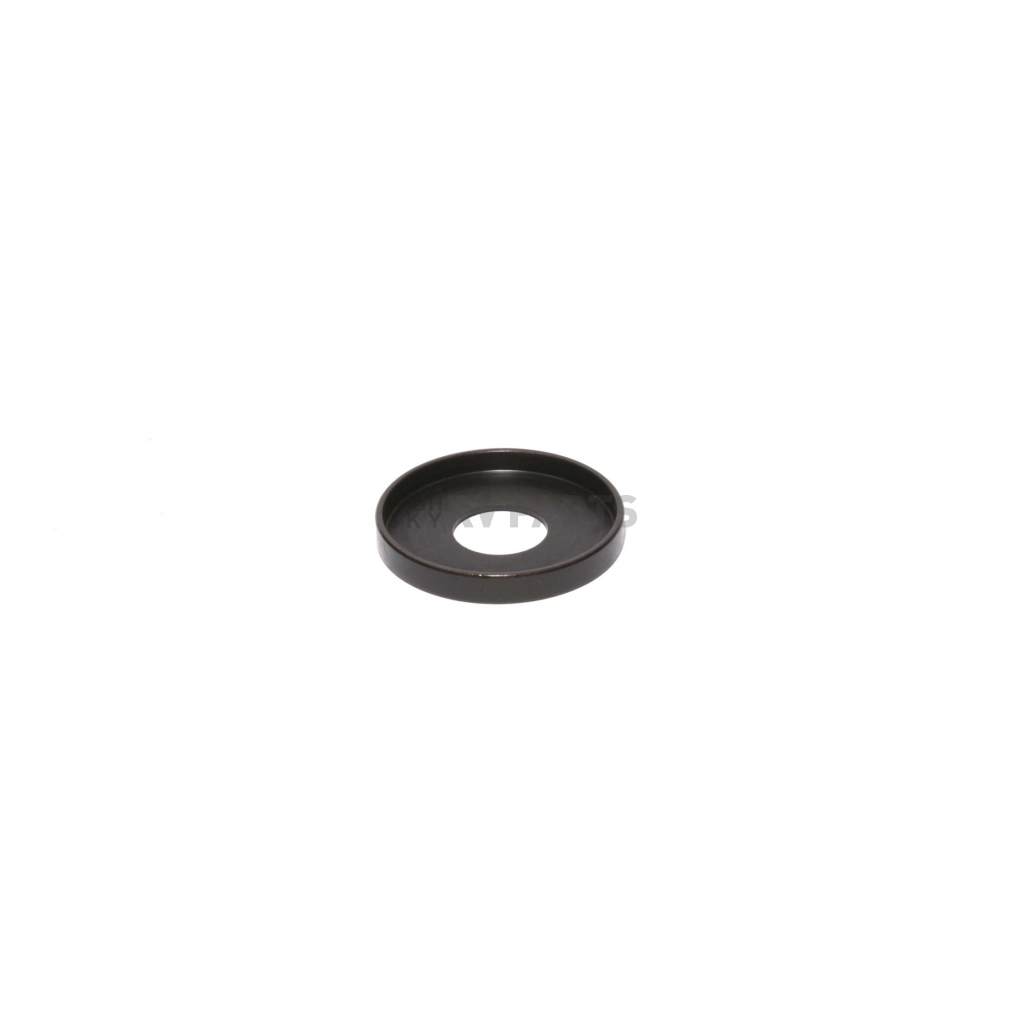

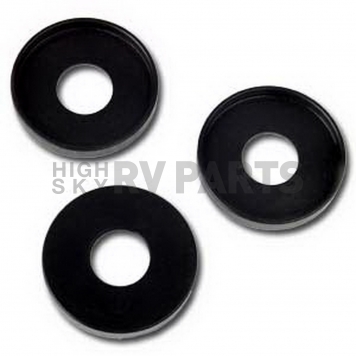

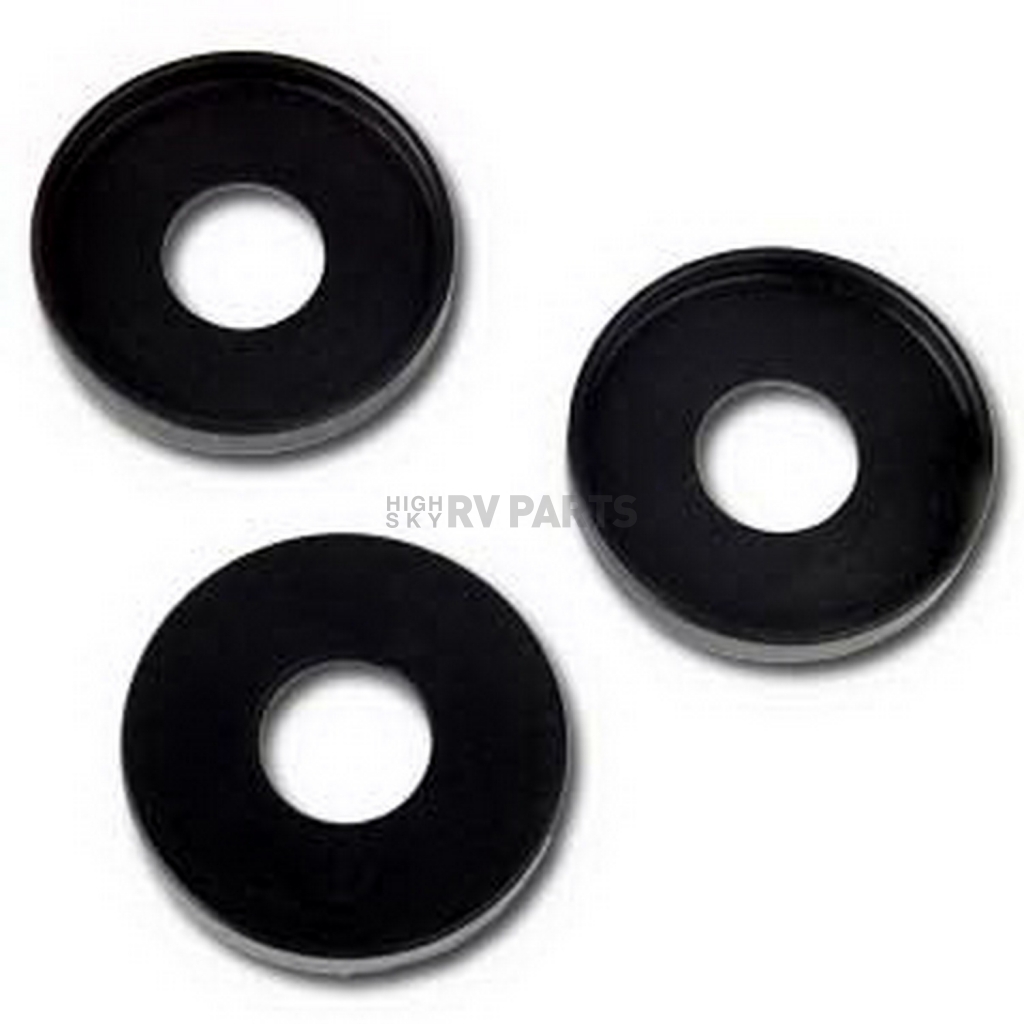

COMP Cams Valve Spring Locator

Valve Spring Locator; Spring Cup; 1.475 Inch Outside Diameter of Spring; 0.060 Inch Thick; Steel; Single

MPN: 47041

As with all other parts in the Valve Train, the area where the Spring sits also takes a beating. The old standard Shims simply will not hold up to the extreme Spring pressures and high RPMs found in racing Engines being built today. COMP Cams® offers a simple but effective solution to this nasty problem. A thin, hardened Steel alloy seat which will not only protect the head and shim, but also locate and hold the Spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup. A new cup with the locating shoulder on the inside is now available.
Locating Shoulder Type: Spring Cup
Outer Spring Diameter (IN): 1.475 Inch
Inside Diameter (IN): 0.64 Inch
Outside Diameter (IN): 1.57 Inch
Thickness (IN): 0.06 Inch
Material: Steel
Quantity: Single

Features

  • A Thin, Hardened Steel Alloy Seat Which Will Not Only Protect The Head And Shim, But Also Locate And Hold The Spring In Place
  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring Locator - 4704-1
Inside Diameter (IN) 0.64 Inch
Locating Shoulder Type Spring Cup
Material Steel
Outer Spring Diameter (IN) 1.475 Inch
Outside Diameter (IN) 1.57 Inch
Quantity Single
Thickness (IN) 0.06 Inch
