COMP Cams Valve Spring Locator - 4702-1

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 4702-1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $23.09
Price: $21.99
You Save: $1.10
Inside Diameter (IN)
0.64 Inch
Locating Shoulder Type
Spring Cup
Material
Steel
Outer Spring Diameter (IN)
1-21/32 Inch
Outside Diameter (IN)
1.73 Inch
Quantity
Single
Thickness (IN)
0.06 Inch
Share this page

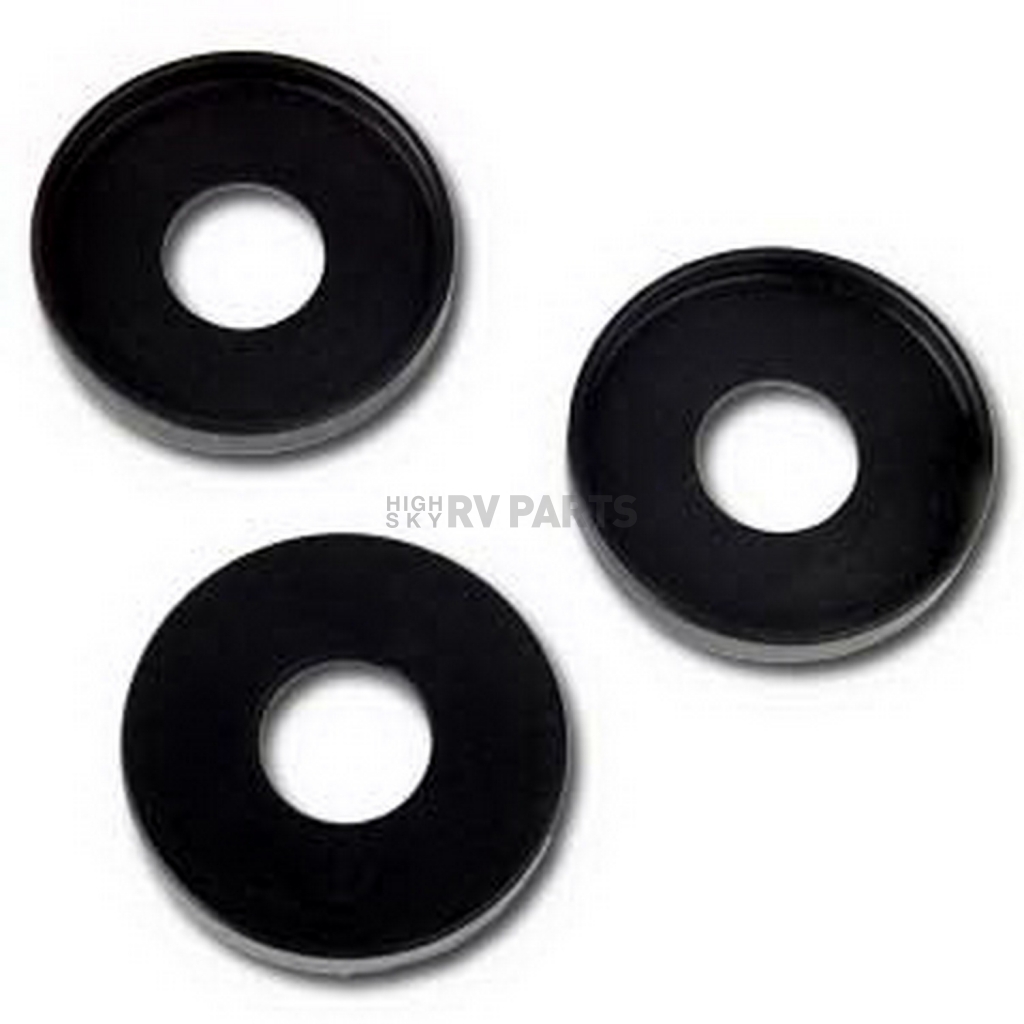

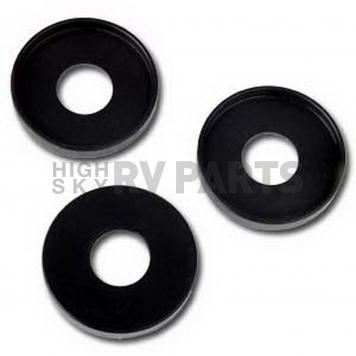

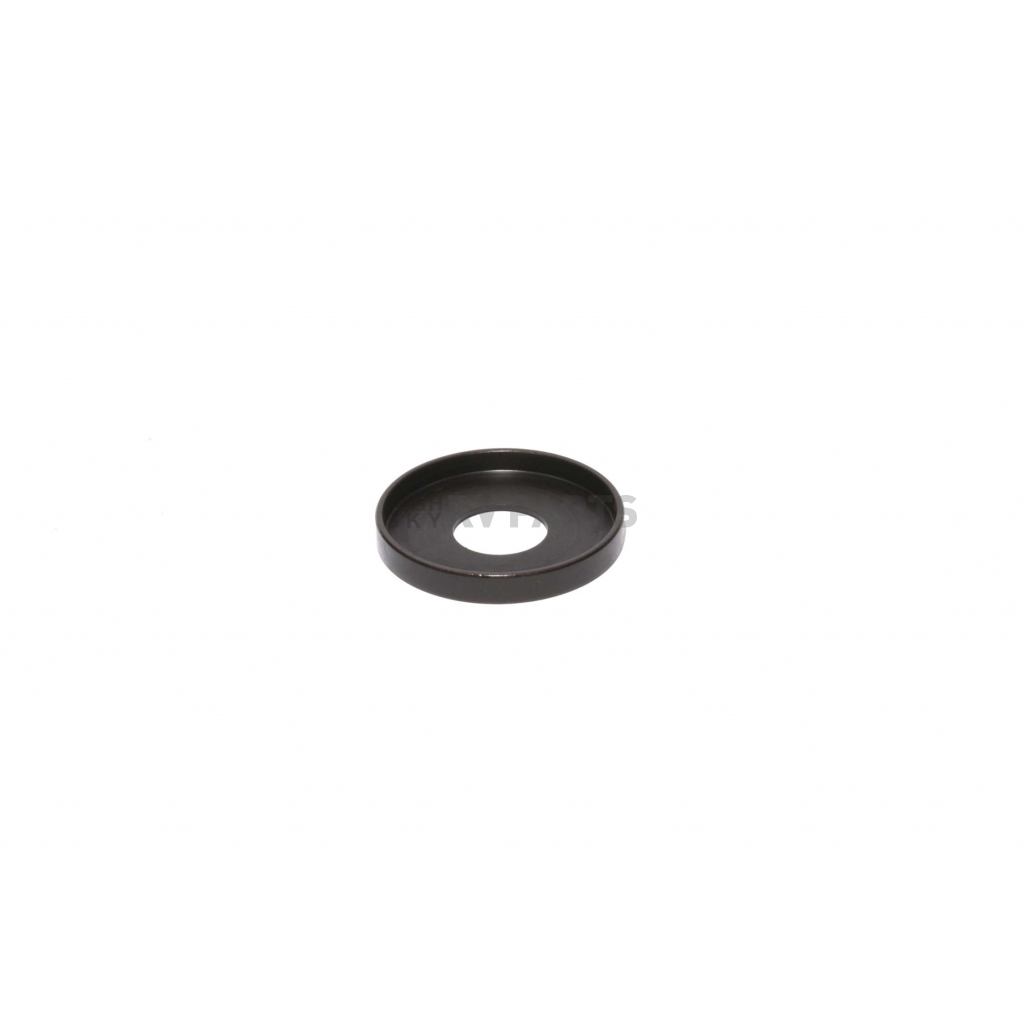

COMP Cams Valve Spring Locator

Valve Spring Locator; Spring Cup; 1.650 Inch Outside Diameter of Spring; 0.060 Inch Thick; Steel; Single

MPN: 47021

As with all other parts in the Valve Train, the area where the Spring sits also takes a beating. The old standard Shims simply will not hold up to the extreme Spring pressures and high RPMs found in racing Engines being built today. COMP Cams® offers a simple but effective solution to this nasty problem. A thin, hardened Steel alloy seat which will not only protect the head and shim, but also locate and hold the Spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup. A new cup with the locating shoulder on the inside is now available.
Locating Shoulder Type: Spring Cup
Outer Spring Diameter (IN): 1-21/32 Inch
Inside Diameter (IN): 0.64 Inch
Outside Diameter (IN): 1.73 Inch
Thickness (IN): 0.06 Inch
Material: Steel
Quantity: Single

Features

  • A Thin, Hardened Steel Alloy Seat Which Will Not Only Protect The Head And Shim, But Also Locate And Hold The Spring In Place
  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring Locator - 4702-1
Inside Diameter (IN) 0.64 Inch
Locating Shoulder Type Spring Cup
Material Steel
Outer Spring Diameter (IN) 1-21/32 Inch
Outside Diameter (IN) 1.73 Inch
Quantity Single
Thickness (IN) 0.06 Inch
