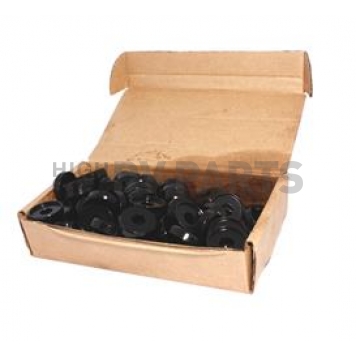

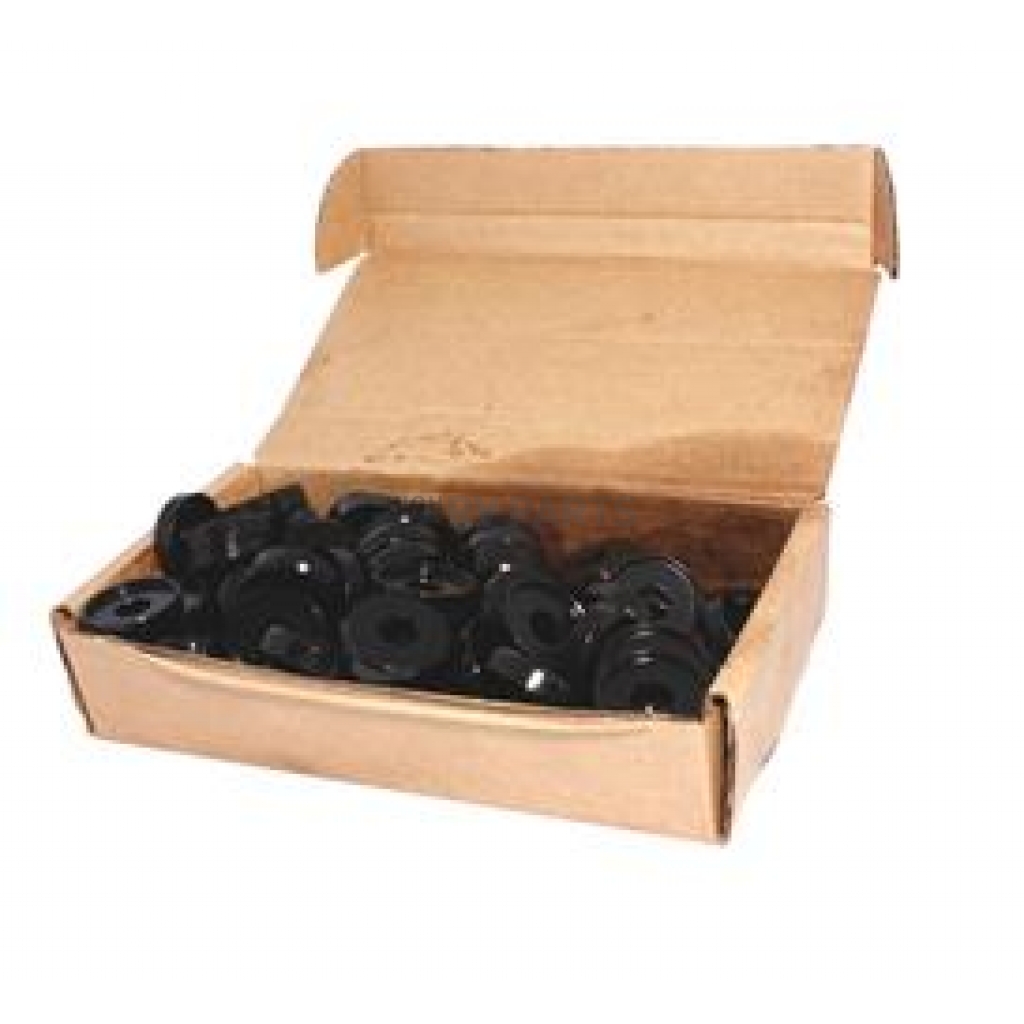

COMP Cams Valve Spring Locator - 4698-100

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 4698-100
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 08
Retail: $518.69
Price: $493.99
You Save: $24.70
Inner Spring Diameter (IN)
0.623 Inch
Inside Diameter (IN)
0.63 Inch
Locating Shoulder Type
Spring Cup
Material
Steel
Outer Spring Diameter (IN)
1.568 Inch
Outside Diameter (IN)
1.732 Inch
Quantity
Set Of 100
Thickness (IN)
0.3 Inch
Share this page

COMP Cams Valve Spring Locator

Valve Spring Locator; Spring Cup; 0.623 Inch Spring Inside Diameter/ 1.568 Inch Spring Outside Diameter; 0.300 Inch Thick; Set of 100

MPN: 4698100

Big Block Chevrolet seat spacers are 0.3 Inch thick and have a 1.732 Inch Outer Diameter They fit springs with a 1.468 Inch Outer Diameter and 0.63 Inch Inner Diameter Late model Big Block Chevrolet engines are originally equipped with exhaust valve rotators. Until now, the only way to make up for the rotator was to stack 0.3 Inch of shims under the spring. This was sloppy but also did not fit as well as these seat spacers. These will locate the spring with an outside step so the spring cannot “walk” around on the head.
Locating Shoulder Type: Spring Cup
Inner Spring Diameter (IN): 0.623 Inch
Outer Spring Diameter (IN): 1.568 Inch
Inside Diameter (IN): 0.63 Inch
Outside Diameter (IN): 1.732 Inch
Thickness (IN): 0.3 Inch
Material: Steel
Quantity: Set Of 100

Features

  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring Locator - 4698-100
Inner Spring Diameter (IN) 0.623 Inch
Inside Diameter (IN) 0.63 Inch
Locating Shoulder Type Spring Cup
Material Steel
Outer Spring Diameter (IN) 1.568 Inch
Outside Diameter (IN) 1.732 Inch
Quantity Set Of 100
Thickness (IN) 0.3 Inch
