COMP Cams Valve Spring Locator - 4698-1

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 4698-1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $23.09
Price: $21.99
You Save: $1.10
Inner Spring Diameter (IN)
0.623 Inch
Inside Diameter (IN)
0.63 Inch
Locating Shoulder Type
Spring Cup
Material
Steel
Outer Spring Diameter (IN)
1.568 Inch
Outside Diameter (IN)
1.732 Inch
Quantity
Single
Thickness (IN)
0.3 Inch
Share this page

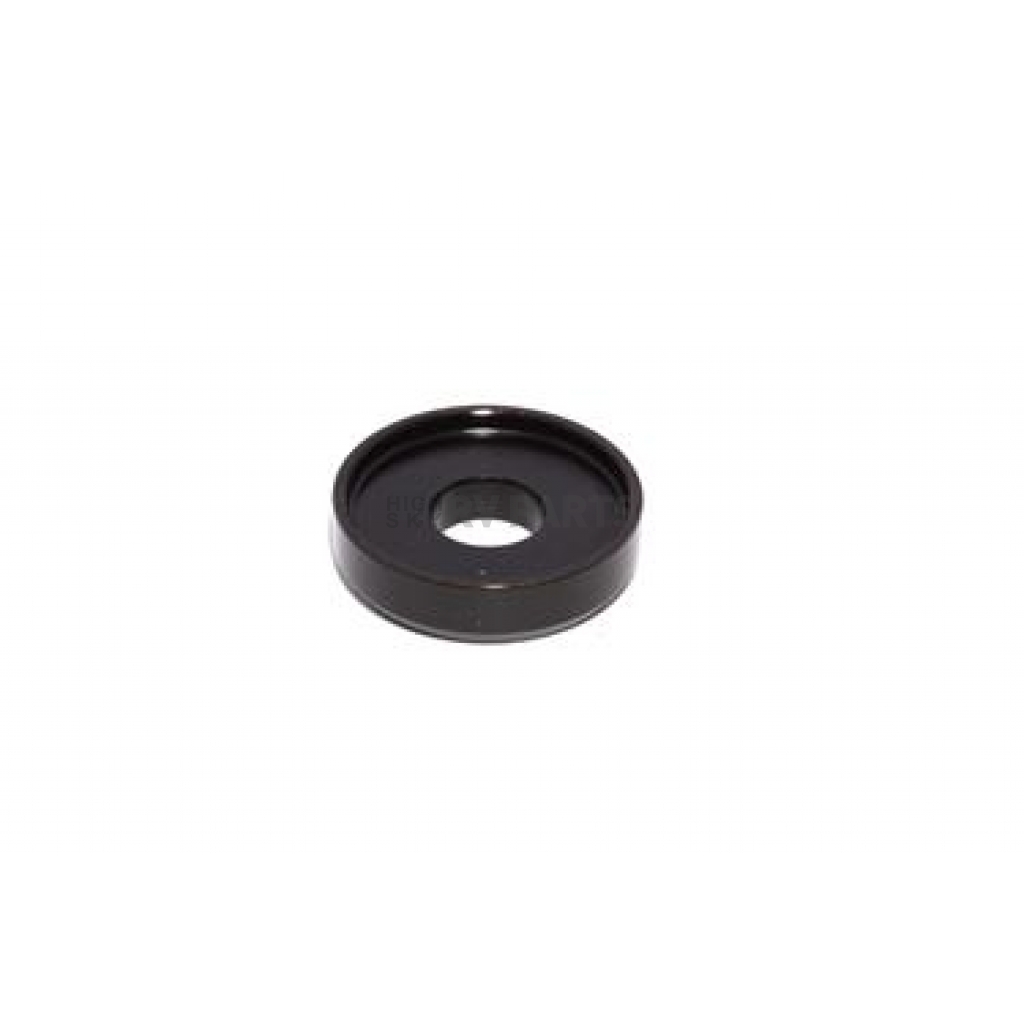

COMP Cams Valve Spring Locator

Valve Spring Locator; Spring Cup; 0.623 Inch Spring Inside Diameter/ 1.568 Inch Spring Outside Diameter; 0.300 Inch Thick; Single

MPN: 46981

Big Block Chevrolet seat spacers are 0.3 Inch thick and have a 1.732 Inch Outer Diameter They fit springs with a 1.468 Inch Outer Diameter and 0.63 Inch Inner Diameter Late model Big Block Chevrolet engines are originally equipped with exhaust valve rotators. Until now, the only way to make up for the rotator was to stack 0.3 Inch of shims under the spring. This was sloppy but also did not fit as well as these seat spacers. These will locate the spring with an outside step so the spring cannot “walk” around on the head.
Locating Shoulder Type: Spring Cup
Inner Spring Diameter (IN): 0.623 Inch
Outer Spring Diameter (IN): 1.568 Inch
Inside Diameter (IN): 0.63 Inch
Outside Diameter (IN): 1.732 Inch
Thickness (IN): 0.3 Inch
Material: Steel
Quantity: Single

Features

  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring Locator - 4698-1
Inner Spring Diameter (IN) 0.623 Inch
Inside Diameter (IN) 0.63 Inch
Locating Shoulder Type Spring Cup
Material Steel
Outer Spring Diameter (IN) 1.568 Inch
Outside Diameter (IN) 1.732 Inch
Quantity Single
Thickness (IN) 0.3 Inch
