COMP Cams Valve Spring - 26095-16

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 26095-16
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 16
Retail: $643.64
Price: $612.99
You Save: $30.65
Coil Bind Height (IN)
1.13 Inch
Engine Compatibility
Universal
Finish
Natural
Includes Damper
No
Inside Diameter Of Outer Spring (IN)
0.731 And 1.135 Inch
Installed Height (IN)
2 Inch
Material
Steel
Outside Diameter Of Outer Spring (IN)
1.185 And 1.589 Inch
Quantity
Set Of 16
Spring Rate
300 Pounds Per Inch
Type
Beehive
Share this page

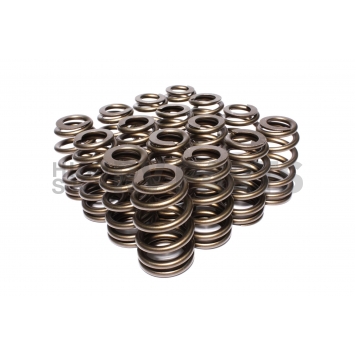

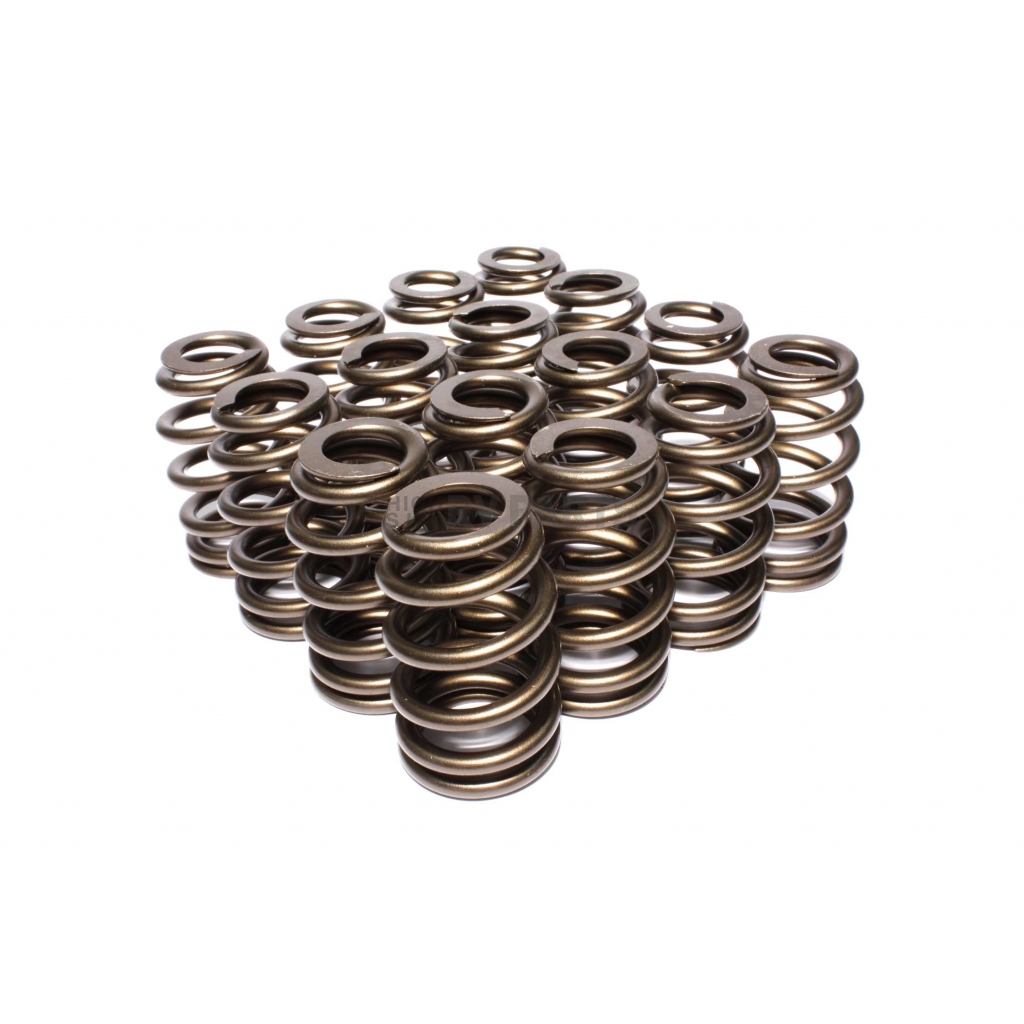

COMP Cams Valve Spring

Valve Spring; Street and Strip; Universal; Steel; Beehive Spring; Without Dampener; 1.185 and 1.589 Inch Outside Diameter/ 0.731 and 1.135 Inch Inside Diameter; 300 Pounds Per Inch Spring Rate; 2.000 Inch Installed Height; Natural; Set of 16

MPN: 2609516

With a 0.75 Inch maximum lift, these Beehive™ Valve Springs are recommended for high lift solid flat tappet and hydraulic roller cams. They were designed for high performance street and track capabilities, and are used in Harley Davidson engines. COMP Cams(R) Beehive™ Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive™ shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM Horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive™ design, the valve train can handle more RPM and more aggressive cam profiles.
Engine Compatibility: Universal
Type: Beehive
Finish: Natural
Material: Steel
Includes Damper: No
Installed Height (IN): 2 Inch
Coil Bind Height (IN): 1.13 Inch
Inside Diameter Of Outer Spring (IN): 0.731 And 1.135 Inch
Outside Diameter Of Outer Spring (IN): 1.185 And 1.589 Inch
Spring Rate: 300 Pounds Per Inch
Quantity: Set Of 16

Features

  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring - 26095-16
Coil Bind Height (IN) 1.13 Inch
Engine Compatibility Universal
Finish Natural
Includes Damper No
Inside Diameter Of Outer Spring (IN) 0.731 And 1.135 Inch
Installed Height (IN) 2 Inch
Material Steel
Outside Diameter Of Outer Spring (IN) 1.185 And 1.589 Inch
Quantity Set Of 16
Spring Rate 300 Pounds Per Inch
Type Beehive
