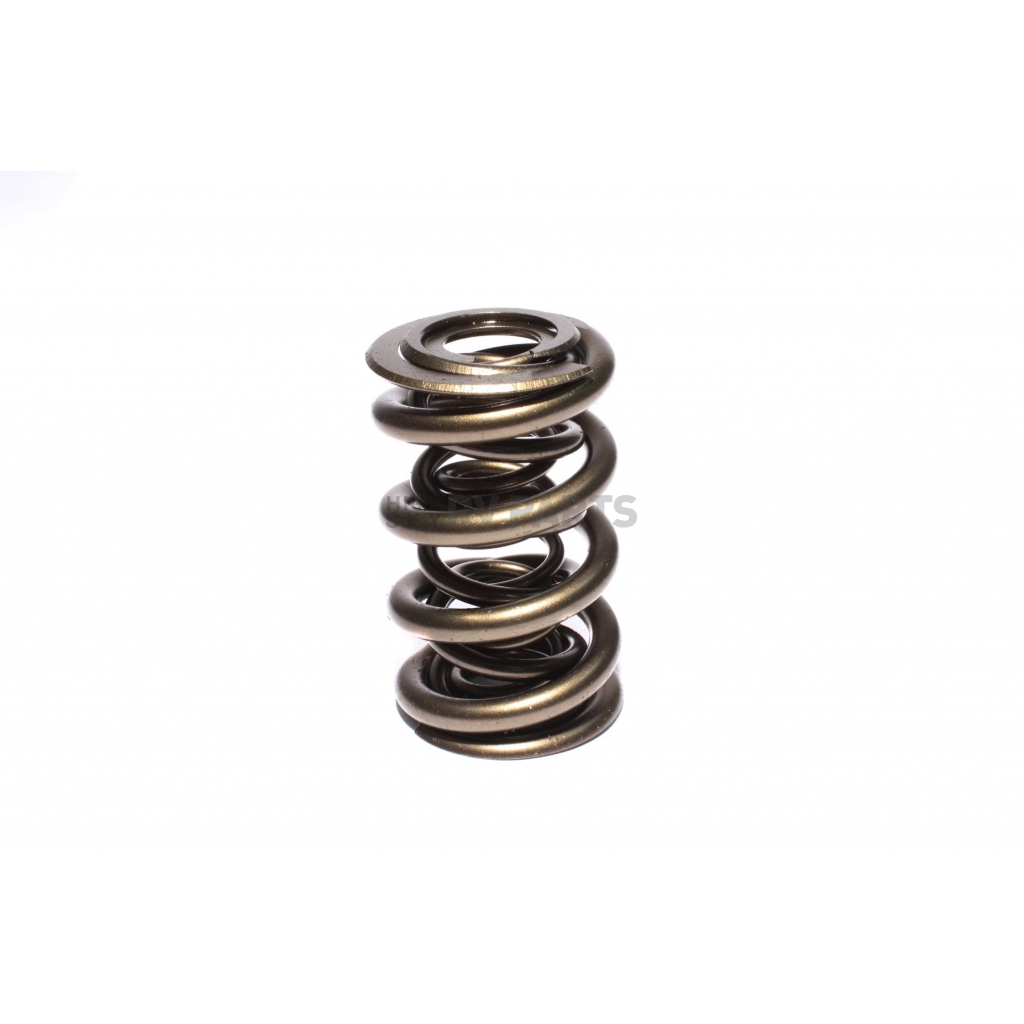

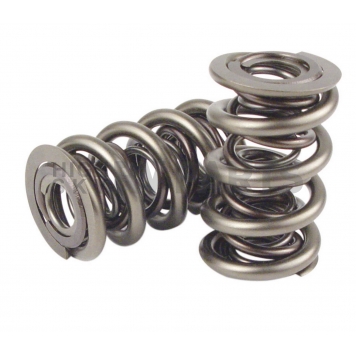

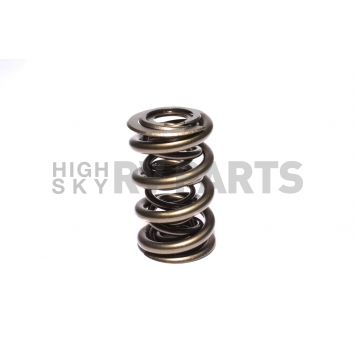

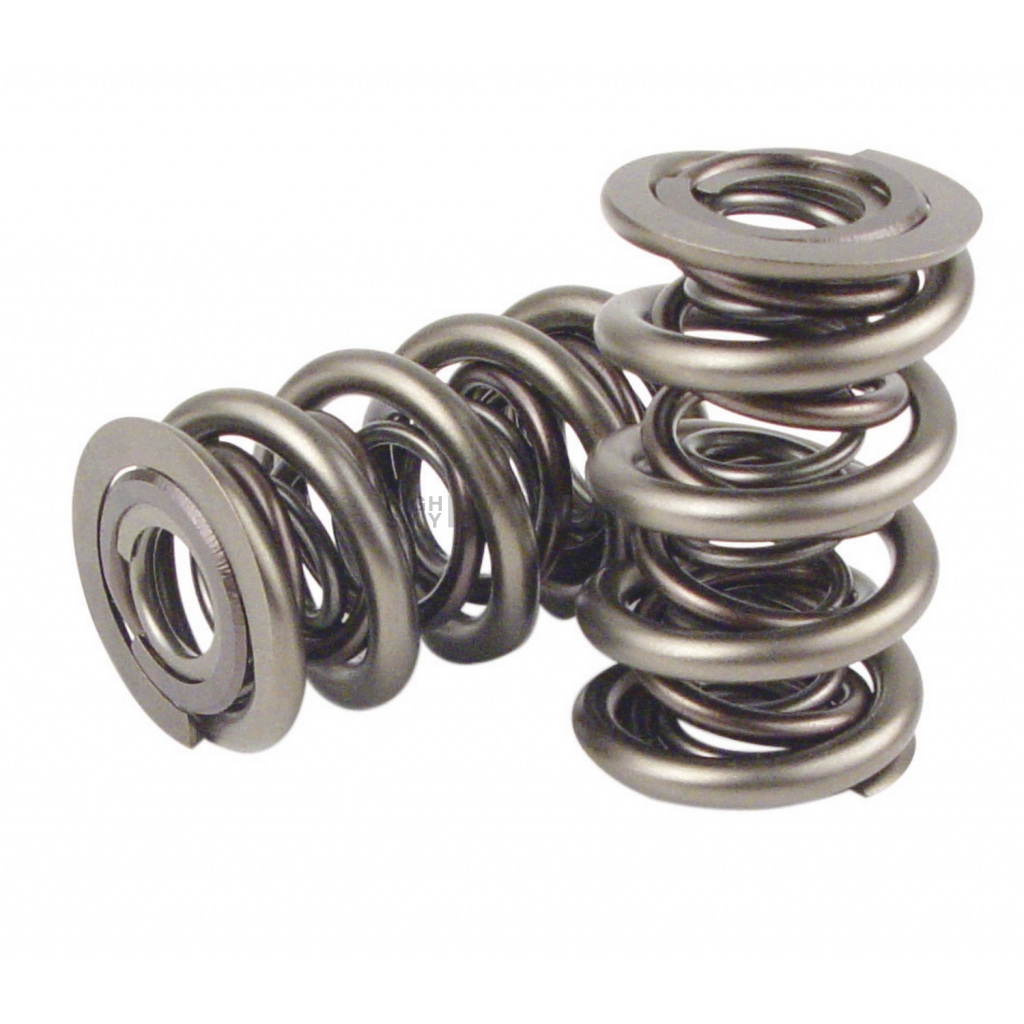

COMP Cams Valve Spring - 26028-1

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 26028-1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $92.39
Price: $87.99
You Save: $4.40
Coil Bind Height (IN)
1.142 Inch
Engine Compatibility
Universal
Finish
Natural
Includes Damper
No
Inside Diameter Of Inner Spring (IN)
0.635 Inch
Inside Diameter Of Outer Spring (IN)
1.195 Inch
Installed Height (IN)
2.2 Inch
Material
Steel
Outside Diameter Of Outer Spring (IN)
1.677 Inch
Quantity
Single
Spring Rate
728 Pounds Per Inch
Share this page

COMP Cams Valve Spring

Valve Spring; Elite Race; Universal; Steel; Triple Spring; Without Dampener; 1.677 Inch Outside Diameter/ 1.195 Inch Inside Diameter of Outer Spring and 0.635 Inch Inside Diameter of Inner Spring; 728 Pounds Per Inch Spring Rate; 2.200 Inch Installed Height; Natural; Single

MPN: 260281

Elite Race™ Triple Valve Springs from COMP Cams(R) have a 1 Inch maximum lift and outside diameter of 1.677 Inch. Designed for use with roller cams and with a 9,000 to 10,000 RPM capacity, they are widely used in Pro Stock and Competition Eliminator, as well as marine and tractor pull applications. The metallurgists at COMP Cams(R) scrutinize every piece of metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring steel is the COMP Cams(R) standard when selecting materials.
Engine Compatibility: Universal
Type: Triple
Finish: Natural
Material: Steel
Includes Damper: No
Installed Height (IN): 2.2 Inch
Coil Bind Height (IN): 1.142 Inch
Inside Diameter Of Inner Spring (IN): 0.635 Inch
Inside Diameter Of Outer Spring (IN): 1.195 Inch
Outside Diameter Of Outer Spring (IN): 1.677 Inch
Spring Rate: 728 Pounds Per Inch
Quantity: Single

Features

  • Limited 1 Year Warranty
Specifications of COMP Cams Valve Spring - 26028-1
Coil Bind Height (IN) 1.142 Inch
Engine Compatibility Universal
Finish Natural
Includes Damper No
Inside Diameter Of Inner Spring (IN) 0.635 Inch
Inside Diameter Of Outer Spring (IN) 1.195 Inch
Installed Height (IN) 2.2 Inch
Material Steel
Outside Diameter Of Outer Spring (IN) 1.677 Inch
Quantity Single
Spring Rate 728 Pounds Per Inch
Type Triple
