COMP Cams Engine Pushrod - 8309-16

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 8309-16
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 16
Retail: $360.14
Price: $342.99
You Save: $17.15
Bottom Tip Diameter (IN)
5/16 Inch
Bottom Tip Style
Ball
Cam Type
Various Camshaft
For Use With Guideplates
Yes
Heat-Treated
Yes
Material
Chromemoly
Oiling
Yes
One-Piece Push Rod
Yes
Overall Length (IN)
7-1/2 Inch
Position
Intake and Exhaust
Quantity
Set Of 16
Share this page

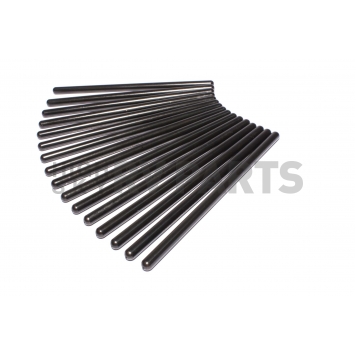

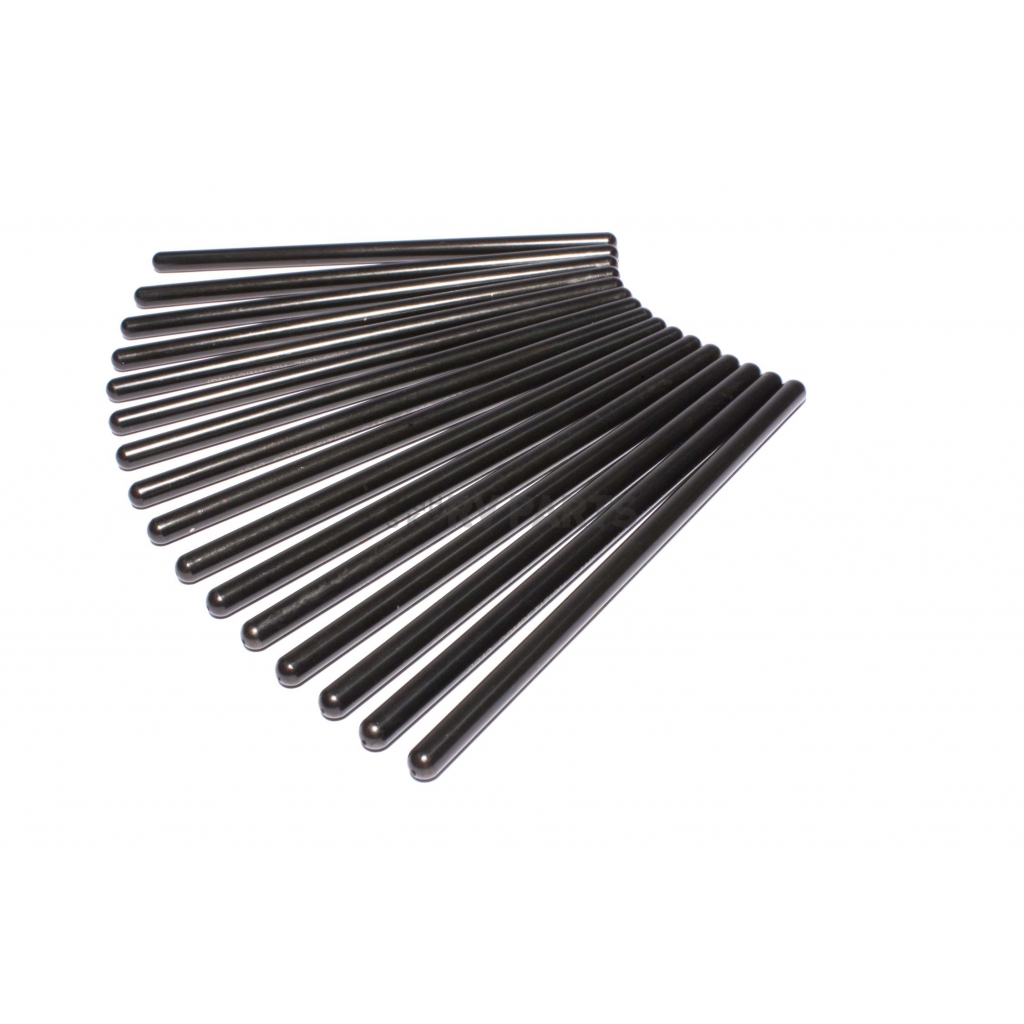

COMP Cams Engine Pushrod

Engine Pushrod; Hi-Tech ™; Street Performance or Race Applications/ Wall Pushrods; Intake and Exhaust; 5/16 Inch Diameter; 7.500 Inch Length; Chromoly; Set of 16

MPN: 830916

COMP Cams(R) Hi-Tech™ Oil Restricting Pushrods feature 0.050 Inch oil holes, which are half the size of standard Hi-Tech™ Pushrods. These pushrods maintain the consistent Hi-Tech™ Pushrod features, including one-piece 4130 chromemoly material with a wall thickness of .080 Inch and a 60 Rockwell hardness. To avoid confusion, each oil restricted pushrod is clearly labeled with length and Diameter. For each Engine platform COMP Cams(R) offers five different pushrod lengths to meet any need.
Recommended Use: Street Performance Or Race Applications
Position: Intake and Exhaust
Quantity: Set Of 16
Cam Type: Various Camshaft
Tubing Diameter (IN): 5/16 Inch
Tapered: No
Top Tip Diameter (IN): 5/16 Inch
Top Tip Style: Ball
Bottom Tip Diameter (IN): 5/16 Inch
Bottom Tip Style: Ball
Overall Length (IN): 7-1/2 Inch
One-Piece Push Rod: Yes
Material: Chromemoly
Heat-Treated: Yes
Oiling: Yes
For Use With Guideplates: Yes
Tip Attachment: Formed

Features

  • Oil Holes Are 0.05 Inch To Restrict Flow
  • Wall Thickness Of 0.08 Inch And A 60 Rockwell Hardness
  • Engineered From 4130 Chromemoly, Heat Treated Steel
  • Length And Diameter Clearly Labeled For Easy Identification
  • Limited 1 Year Warranty
Specifications of COMP Cams Engine Pushrod - 8309-16
Bottom Tip Diameter (IN) 5/16 Inch
Bottom Tip Style Ball
Cam Type Various Camshaft
For Use With Guideplates Yes
Heat-Treated Yes
Material Chromemoly
Oiling Yes
One-Piece Push Rod Yes
Overall Length (IN) 7-1/2 Inch
Position Intake and Exhaust
Quantity Set Of 16
Recommended Use Street Performance Or Race Applications
Tapered No
Tip Attachment Formed
Top Tip Diameter (IN) 5/16 Inch
Top Tip Style Ball
Tubing Diameter (IN) 5/16 Inch

1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro

1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette

1900 Chevrolet LT1/LT4 Small Block 1993-1997

2005 Chevrolet SSR
2006 Chevrolet SSR

2006 Chevrolet Trailblazer
2007 Chevrolet Trailblazer
2008 Chevrolet Trailblazer
2009 Chevrolet Trailblazer
