COMP Cams Engine Pushrod - 7736-1

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 7736-1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $59.84
Price: $56.99
You Save: $2.85
Bottom Tip Diameter (IN)
5/16 Inch
Bottom Tip Style
Ball
Cam Type
Various Camshaft
For Use With Guideplates
Yes
Heat-Treated
Yes
Material
Chromemoly
Oiling
Yes
One-Piece Push Rod
Yes
Overall Length (IN)
8.1 Inch
Position
Intake and Exhaust
Quantity
Single
Share this page

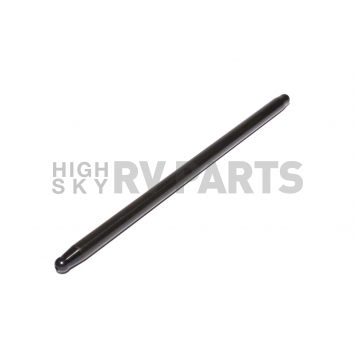

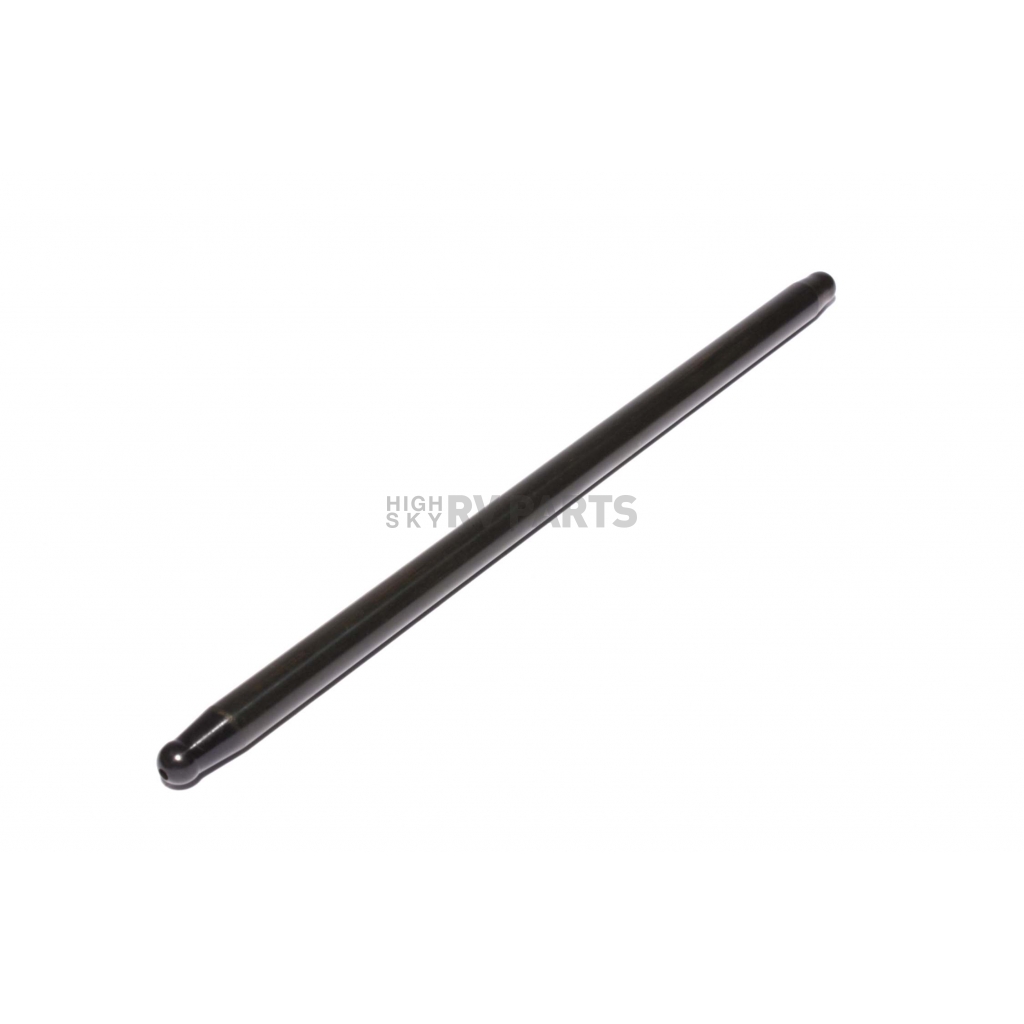

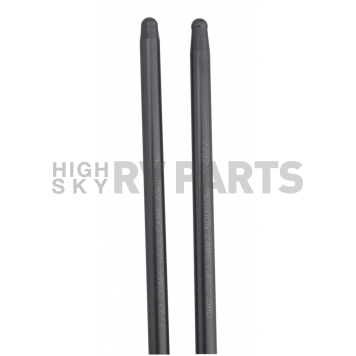

COMP Cams Engine Pushrod

Engine Pushrod; Hi-Tech ™; High Lift Street Performance or Race Applications; Intake and Exhaust; 3/8 Inch Diameter; 8.100 Inch Length; Chromoly; Single

MPN: 77361

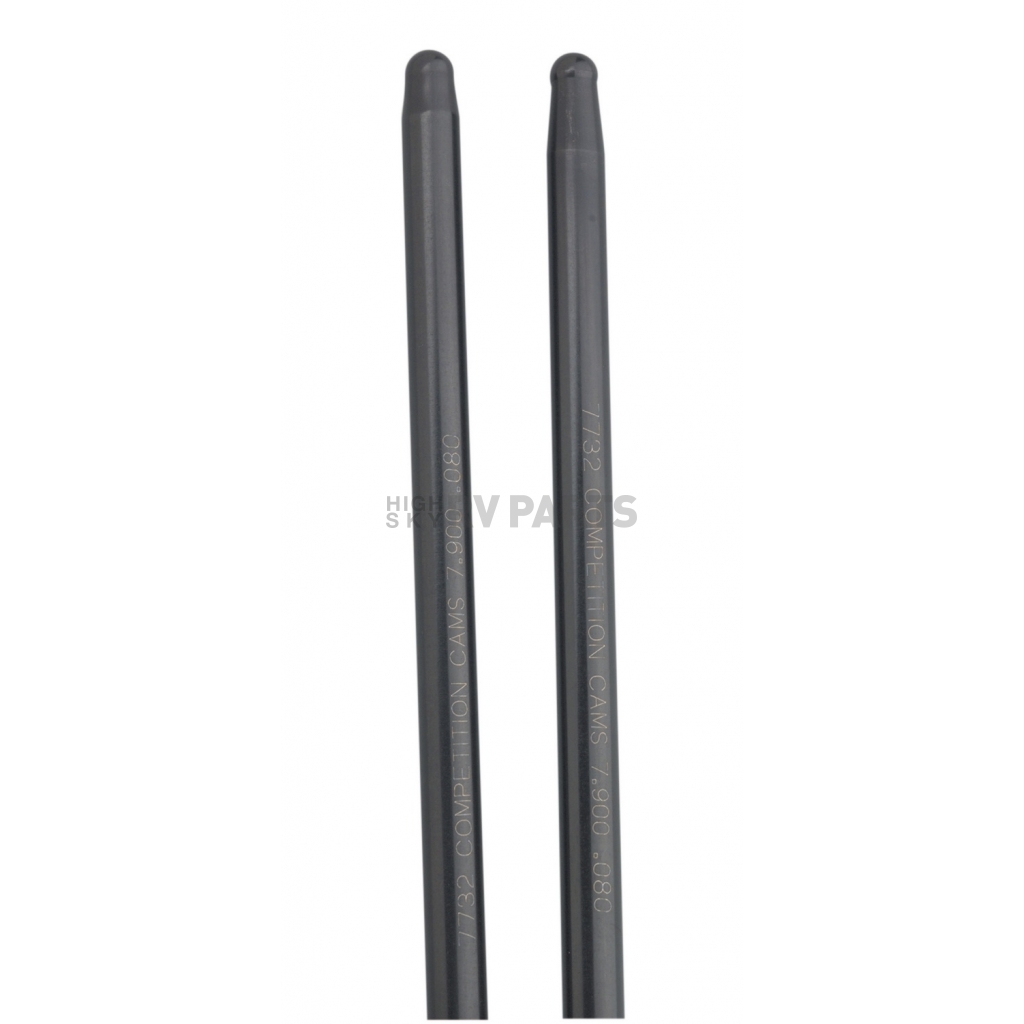

Designed for high lift applications where pushrod and seat interference are problems at maximum lift, Hi-Tech 210 Degree Radius Pushrods work well with Rocker Arms that feature cup type adjusters and applications that demand pushrods with more load bearing surface. Hi-Tech 210 Degree Radius Pushrods have the same features as other Hi-Tech™ Pushrods, with the addition of a 210 Degree radius rather than standard 180 Degree radius. Featuring a one-piece design from 0.08 Inch wall, seamless chromemoly tubing that ensures exceptional durability, the pushrods are heat treated for maximum strength, Outside Diameter ground for consistency and black oxide finished with length and part number laser etched on for easy identification.
Recommended Use: High Lift Street Performance Or Race Applications
Position: Intake and Exhaust
Quantity: Single
Cam Type: Various Camshaft
Tubing Diameter (IN): 3/8 Inch
Tapered: No
Top Tip Diameter (IN): 5/16 Inch
Top Tip Style: Ball
Bottom Tip Diameter (IN): 5/16 Inch
Bottom Tip Style: Ball
Overall Length (IN): 8.1 Inch
One-Piece Push Rod: Yes
Material: Chromemoly
Heat-Treated: Yes
Oiling: Yes
For Use With Guideplates: Yes
Tip Attachment: Formed

Features

  • Designed For High Lift Applications Where Pushrod And Seat Interference Are Problems At Maximum Lift
  • Work Well With Rocker Arms That Feature Cup Type Adjusters And Applications Requiring More Load Bearing Surface From The Pushrod
  • Same Features As Other Hi-Tech™ Pushrods With Addition Of 210 Degree Radius
  • Custom Lengths Available By Special Order
  • Limited 1 Year Warranty
Specifications of COMP Cams Engine Pushrod - 7736-1
Bottom Tip Diameter (IN) 5/16 Inch
Bottom Tip Style Ball
Cam Type Various Camshaft
For Use With Guideplates Yes
Heat-Treated Yes
Material Chromemoly
Oiling Yes
One-Piece Push Rod Yes
Overall Length (IN) 8.1 Inch
Position Intake and Exhaust
Quantity Single
Recommended Use High Lift Street Performance Or Race Applications
Tapered No
Tip Attachment Formed
Top Tip Diameter (IN) 5/16 Inch
Top Tip Style Ball
Tubing Diameter (IN) 3/8 Inch
