Cloyes Timing Gear Set - 9-3146A

Brand: Cloyes
0 reviews
  • Have a product question? Ask us
  • Part Number: 9-3146A
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $426.29
Price: $405.99
You Save: $20.30
Adjustable
Yes
Attachment Type
3 Keyway Crankshaft Gear
Drive Type
Chain Drive
Includes Chain
Yes
Share this page

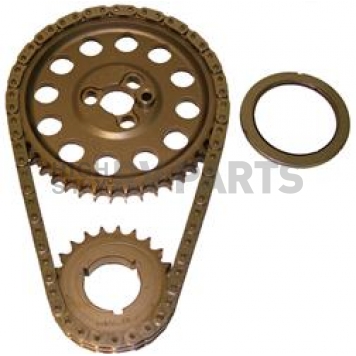

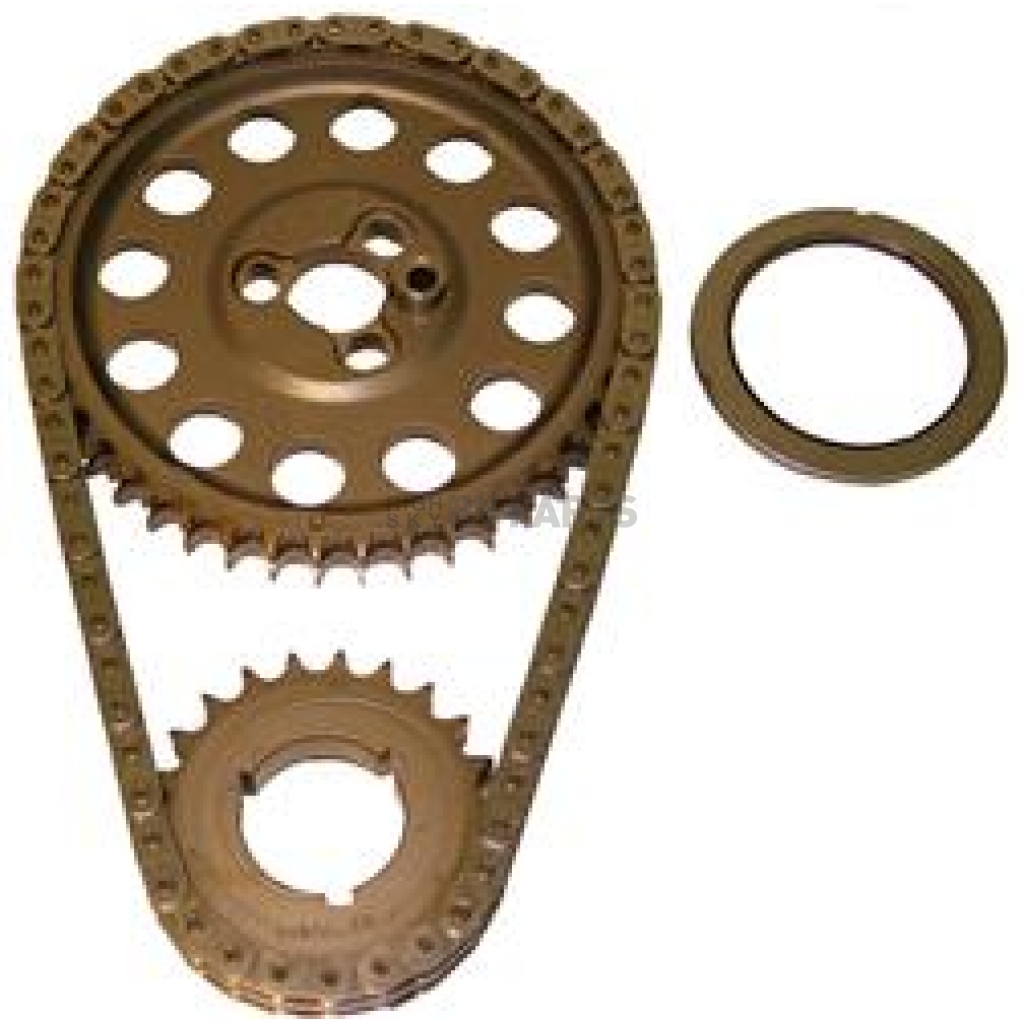

Cloyes Timing Gear Set

Timing Gear Set; Hex-A-Just; For Use With Small Block Chevy Rocket Block; Chain Drive; 0.250 Inch Premium True Roller Chain; Adjustable +/- 6 Degrees; 3 Keyway Crankshaft Gear; Heat Treated Billet Steel Cam Sprocket/ Heat Treated Billet Steel Crank Sprocket; With Camshaft Gear/ Crankshaft Gear/ Timing Chain

MPN: 93146A

An industry breakthrough when introduced in 1992. Since then the accuracy and simplicity of our Hex-A-Just(R) system remains unmatched by our competitors. The Hex-A-Just(R) True(R) Roller Set is infinitely adjustable to plus/minus 6 Degrees. No machining required and no fumbling with offset bushings. Simply dial in your cam timing with the turn of a wrench, then tighten the cam bolts to lock the cam position in place. When combined with our Quick Button™ Two Piece Timing Cover, this Cloyes patented technology will save you hours of valuable set up time. Sprockets are machined from premium billet steel on our state of the art CNC equipment. Both sprockets are then induction hardened and oil quenched using our in house multi stage heat treat process. Our Premium True(R) Roller chain features superior strength with full roller action. Side plates are cut and shaved from high strength steel and heat treated for maximum fatigue resistance. The 0.250 Inch rollers are “Cold Rolled” and hardened to exacting standards increasing load and RPM capabilities. An additional feature on Chevrolet applications is the Cloyes patented “Cheater” sprocket tooth profile that provides improved chain wrap and smoother transition. Whether your destination is the street or the track, Hex-A-Just(R) will get you there faster.
Drive Type: Chain Drive
Adjustable: Yes
Attachment Type: 3 Keyway Crankshaft Gear
Includes Chain: Yes

Features

  • Patented Hex-A-Just® Allows Plus/Minus 6 Degrees
  • Set Includes Induction Heat Treated, Billet Steel Sprockets, Three Keyway Billet Steel Crank Sprocket, Premium True® Roller Chain With 0.250 Inch Diameter Rollers
  • Hand Matched To Qualify Both Center Distance And Run Out
  • Limited 90 Day Warranty
Specifications of Cloyes Timing Gear Set - 9-3146A
Adjustable Yes
Attachment Type 3 Keyway Crankshaft Gear
Drive Type Chain Drive
Includes Chain Yes
