Centerforce Dual Friction Clutch Set - LM017010
Disc Diameter
11 Inch
Disc Friction Face Design
Puck
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
No
Input Shaft Size
1-1/8 Inch X 26 Spline
Share this page

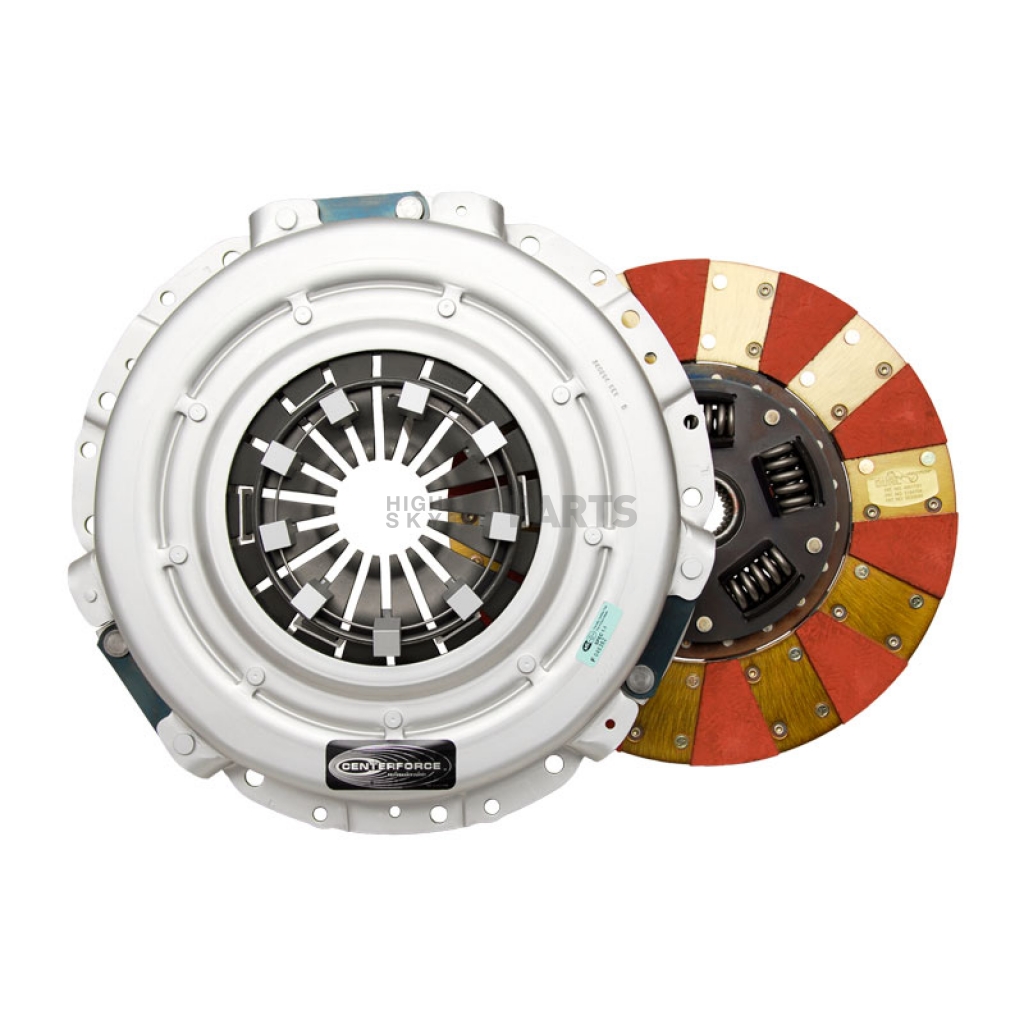

Clutch Set; LMC Series; 11 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Pressure Plate/ Clutch Disc/ Alignment Tool
MPN: LM017010
LMC series clutches were engineered for the car enthusiast seeking lightweight for street or optimum acceleration on the road course. Similar to the performance of the dual friction clutch, this clutch is compatible with aftermarket heads, cams, performance exhaust, air filters, etc. plus the use of aftermarket turbo, supercharger and mild nitrous systems. Performance gear ratios are recommended for maximum results.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 11 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: Yes
Disc Friction Face Design: Puck
Includes Alignment Tool: Yes
Features
- The Centerforce LMC Series Is A Specifically Designed Low Inertia Performance Clutch That Dramatically Reduces Engine Rotating Mass
- Centerforce Machines These Special Pressure Plates From High Strength Aircraft Grade Billet Aluminum And Then Attach A Special Heat Treated Replaceable Friction Surface
- The Centerforce LMC Series Friction Disc Utilizes A Dual Segmented Carbon Composite Lining For Improved Cooling And Excellent Torque Capacity
- The New Series Of LMC Series Uses Their Patented Ball Bearing Actuated Diaphragm And Centrifugal Weight System For Maximum Grip While Maintaining A Comfortable And Controllable Clutch Pedal
- Limited 90 Day Warranty
| Specifications of Centerforce Dual Friction Clutch Set - LM017010 | |
| Disc Diameter | 11 Inch |
| Disc Friction Face Design | Puck |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1-1/8 Inch X 26 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
1998 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
2004 Pontiac GTO
