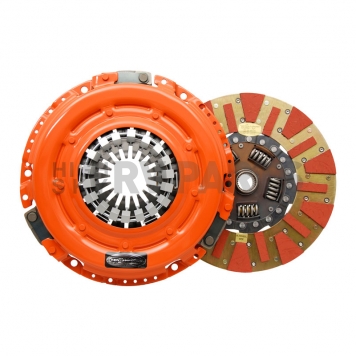

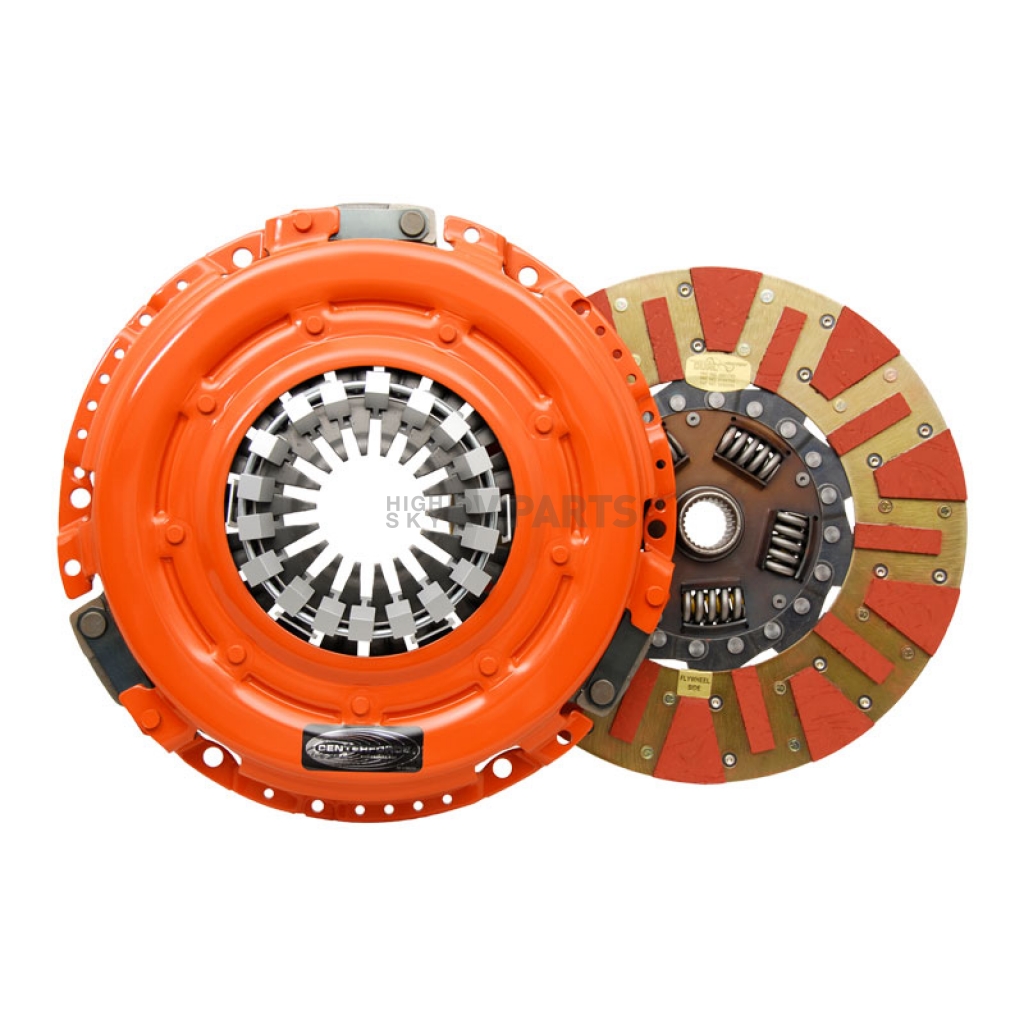

Centerforce Dual Friction Clutch Set - DF504076
Disc Diameter
9-11/16 Inch
Disc Friction Face Design
Full Face And Puck
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
No
Input Shaft Size
1-1/8 Inch X 26 Spline
Share this page
Clutch Set; Dual Friction ®; 9-11/16 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face And Puck Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool
MPN: DF504076
Dual friction assemblies are engineered for maximum street performance. This clutch is compatible with aftermarket heads, cams, performance exhaust, air filters, etc. plus the use of aftermarket turbos, supercharger and mild nitrous systems. Also works well for towing application with heavy load. Performance gear ratios are recommended for maximum results.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9-11/16 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face And Puck
Includes Alignment Tool: Yes
Features
- The Centerforce Dual Friction Clutch Set Is A Performance Matched Pressure Plate And Disc Combination
- Pressure Plates Feature Their Patented Centrifugal Weight System And Specialized Machining Processes To Provide A Performance Clutch That Offers Exceptional Street Characteristics
- Centerforce Dual Friction Pressure Plates Offers Outstanding Holding Capacity And Durability
- The Centerforce Dual Friction Disc Has A Full Facing On The Pressure Plate Side For Drivability And Longevity
- Carbon Composite Puck Style (Segmented) Facing Is Used On The Flywheel Side For A Positive Engagement And Increased Holding Capacity
- Dual Friction Is Engineered For Those Who Are Looking For The Ultimate In Street Or Strip Holding Power And Performance Without Sacrificing Pedal Effort And Driver Control
- Limited 90 Day Warranty
| Specifications of Centerforce Dual Friction Clutch Set - DF504076 | |
| Disc Diameter | 9-11/16 Inch |
| Disc Friction Face Design | Full Face And Puck |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1-1/8 Inch X 26 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1995 Pontiac Firebird
1996 Pontiac Firebird
1997 Pontiac Firebird
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
1996 Pontiac Firebird
1997 Pontiac Firebird
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
