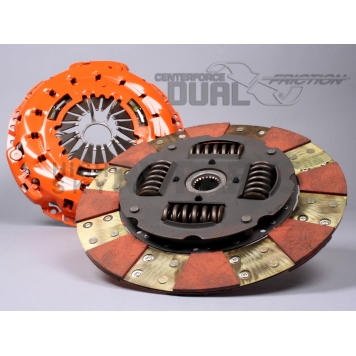

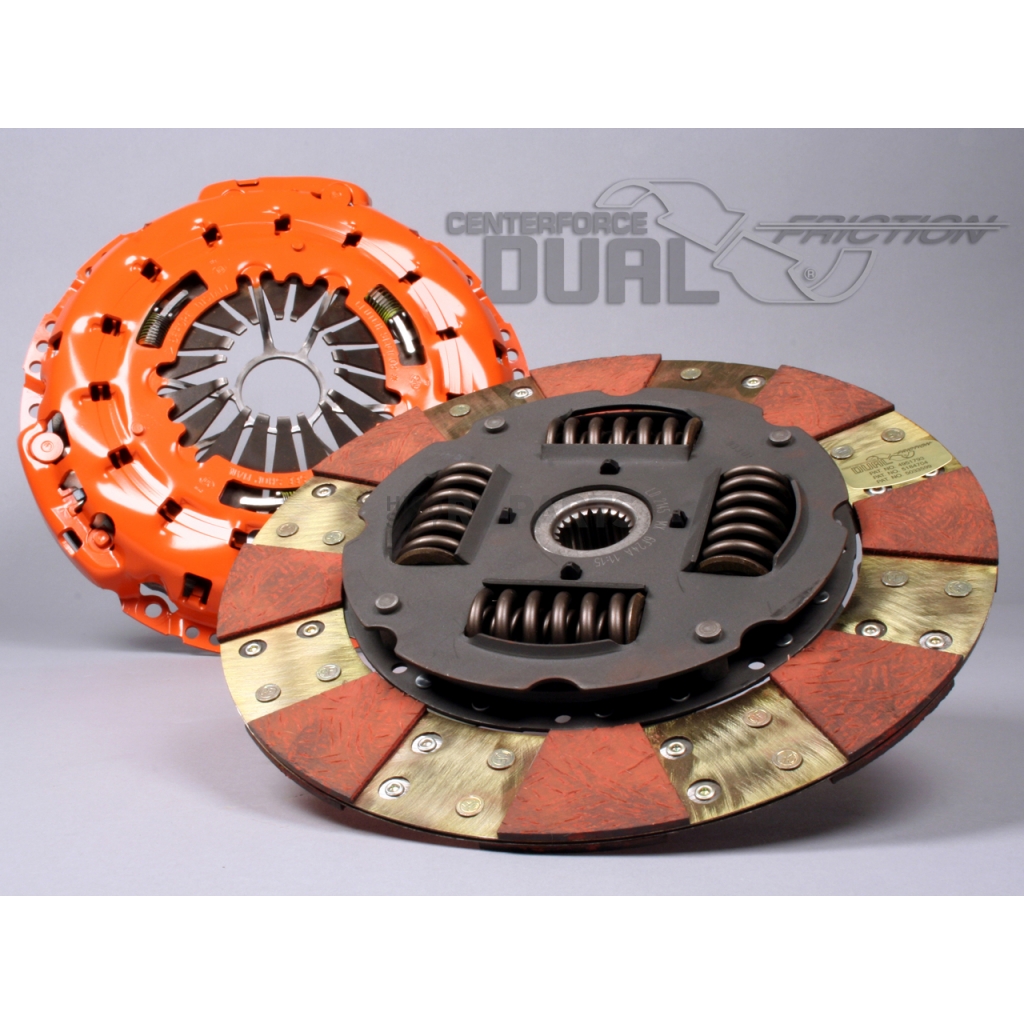

Centerforce Dual Friction Clutch Set - DF145117

Authorized Dealer
Brand: Centerforce Centerforce
0 reviews
  • Have a product question? Ask us
  • Part Number: DF145117
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $660.44
Price: $628.99
You Save: $31.45
Disc Diameter
 10-1/8 Inch
Disc Friction Face Design
 Full Face And Puck
Disc Friction Material
 Organic
Disc Hub Design
 Sprung
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1 Inch X 23 Spline
Share this page

Clutch Set; Dual Friction ®; 10-1/8 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face And Puck Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: DF145117

Dual friction assemblies are engineered for maximum street performance. This clutch is compatible with aftermarket heads, cams, performance exhaust, air filters, etc. plus the use of aftermarket turbos, supercharger and mild nitrous systems. Also works well for towing application with heavy load. Performance gear ratios are recommended for maximum results.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/8 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face And Puck
Includes Alignment Tool: Yes

Features

  • The Centerforce Dual Friction Clutch Set Is A Performance Matched Pressure Plate And Disc Combination
  • Pressure Plates Feature Their Patented Centrifugal Weight System And Specialized Machining Processes To Provide A Performance Clutch That Offers Exceptional Street Characteristics
  • Centerforce Dual Friction Pressure Plates Offers Outstanding Holding Capacity And Durability
  • The Centerforce Dual Friction Disc Has A Full Facing On The Pressure Plate Side For Drivability And Longevity
  • Carbon Composite Puck Style (Segmented) Facing Is Used On The Flywheel Side For A Positive Engagement And Increased Holding Capacity
  • Dual Friction Is Engineered For Those Who Are Looking For The Ultimate In Street Or Strip Holding Power And Performance Without Sacrificing Pedal Effort And Driver Control
  • Limited 90 Day Warranty
Specifications of Centerforce Dual Friction Clutch Set - DF145117
Disc Diameter  10-1/8 Inch
Disc Friction Face Design  Full Face And Puck
Disc Friction Material  Organic
Disc Hub Design  Sprung
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1 Inch X 23 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Diaphragm

2001 Ford Explorer
2002 Ford Explorer
2003 Ford Explorer

2001 Ford Explorer Sport
2002 Ford Explorer Sport
2003 Ford Explorer Sport

2001 Ford Explorer Sport Trac
2002 Ford Explorer Sport Trac
2003 Ford Explorer Sport Trac

2001 Ford Ranger
2002 Ford Ranger
2003 Ford Ranger
2004 Ford Ranger
2005 Ford Ranger
2006 Ford Ranger
2007 Ford Ranger
2008 Ford Ranger
2009 Ford Ranger
