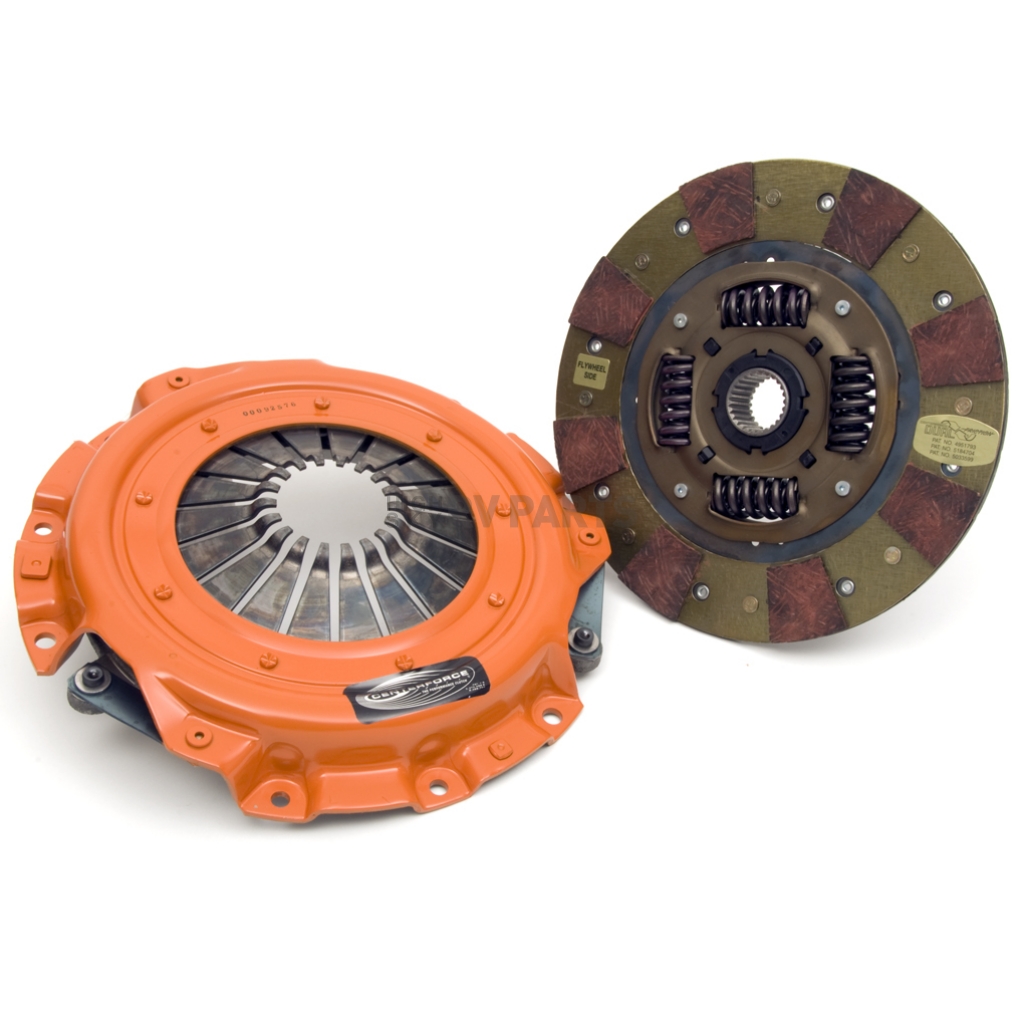

Centerforce Dual Friction Clutch Set - DF120170
Disc Diameter
9-1/4 Inch
Disc Friction Face Design
Full Face And Puck
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
No
Input Shaft Size
1-1/8 Inch X 26 Spline
Share this page
Clutch Set; Dual Friction ®; 9-1/4 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face And Puck Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool
MPN: DF120170
Dual friction assemblies are engineered for maximum street performance. This clutch is compatible with aftermarket heads, cams, performance exhaust, air filters, etc. plus the use of aftermarket turbos, supercharger and mild nitrous systems. Also works well for towing application with heavy load. Performance gear ratios are recommended for maximum results.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9-1/4 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face And Puck
Includes Alignment Tool: Yes
Features
- The Centerforce Dual Friction Clutch Set Is A Performance Matched Pressure Plate And Disc Combination
- Pressure Plates Feature Their Patented Centrifugal Weight System And Specialized Machining Processes To Provide A Performance Clutch That Offers Exceptional Street Characteristics
- Centerforce Dual Friction Pressure Plates Offers Outstanding Holding Capacity And Durability
- The Centerforce Dual Friction Disc Has A Full Facing On The Pressure Plate Side For Drivability And Longevity
- Carbon Composite Puck Style (Segmented) Facing Is Used On The Flywheel Side For A Positive Engagement And Increased Holding Capacity
- Dual Friction Is Engineered For Those Who Are Looking For The Ultimate In Street Or Strip Holding Power And Performance Without Sacrificing Pedal Effort And Driver Control
- Limited 90 Day Warranty
| Specifications of Centerforce Dual Friction Clutch Set - DF120170 | |
| Disc Diameter | 9-1/4 Inch |
| Disc Friction Face Design | Full Face And Puck |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1-1/8 Inch X 26 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
1994 Chevrolet S10
1995 Chevrolet S10
1996 Chevrolet S10
1997 Chevrolet S10
1998 Chevrolet S10
1999 Chevrolet S10
2000 Chevrolet S10
2001 Chevrolet S10
2002 Chevrolet S10
2003 Chevrolet S10
1995 Chevrolet S10
1996 Chevrolet S10
1997 Chevrolet S10
1998 Chevrolet S10
1999 Chevrolet S10
2000 Chevrolet S10
2001 Chevrolet S10
2002 Chevrolet S10
2003 Chevrolet S10
1994 GMC Sonoma
1995 GMC Sonoma
1996 GMC Sonoma
1997 GMC Sonoma
1998 GMC Sonoma
1999 GMC Sonoma
2000 GMC Sonoma
2001 GMC Sonoma
2002 GMC Sonoma
2003 GMC Sonoma
1995 GMC Sonoma
1996 GMC Sonoma
1997 GMC Sonoma
1998 GMC Sonoma
1999 GMC Sonoma
2000 GMC Sonoma
2001 GMC Sonoma
2002 GMC Sonoma
2003 GMC Sonoma
1996 Isuzu Hombre
1997 Isuzu Hombre
1998 Isuzu Hombre
1999 Isuzu Hombre
2000 Isuzu Hombre
1997 Isuzu Hombre
1998 Isuzu Hombre
1999 Isuzu Hombre
2000 Isuzu Hombre
