Centerforce DYAD DS 10.4 Clutch Set - 413234818

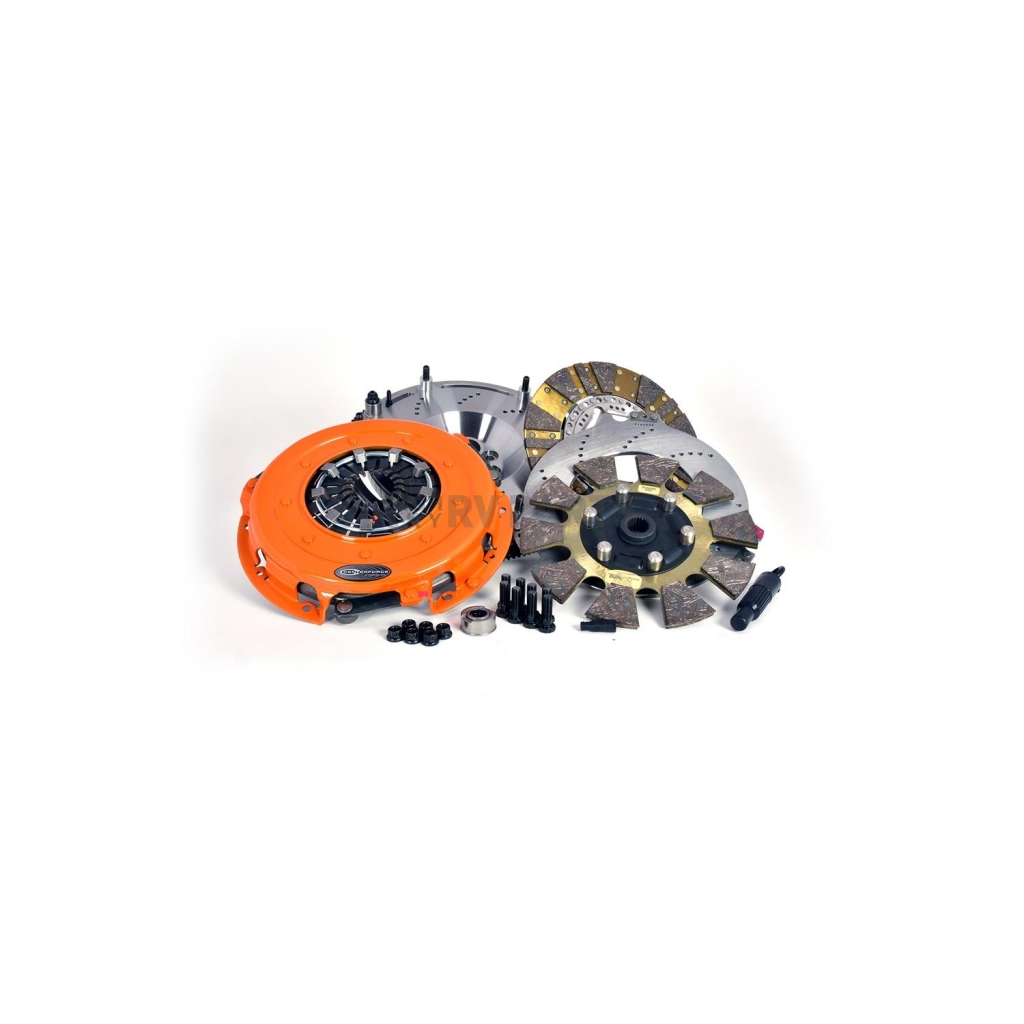

Clutch Set; 10.4 Inch Clutch Diameter; 1 Inch Shaft Diameter; Nodular Iron Pressure Plate; Dual Disc; Organic Friction Material; 164 Tooth Billet Steel Flywheel; With Cover/ Discs/ Floater/ Flywheel/ Bolts/ Pilot Bearing/ Align Tool
MPN: 413234818

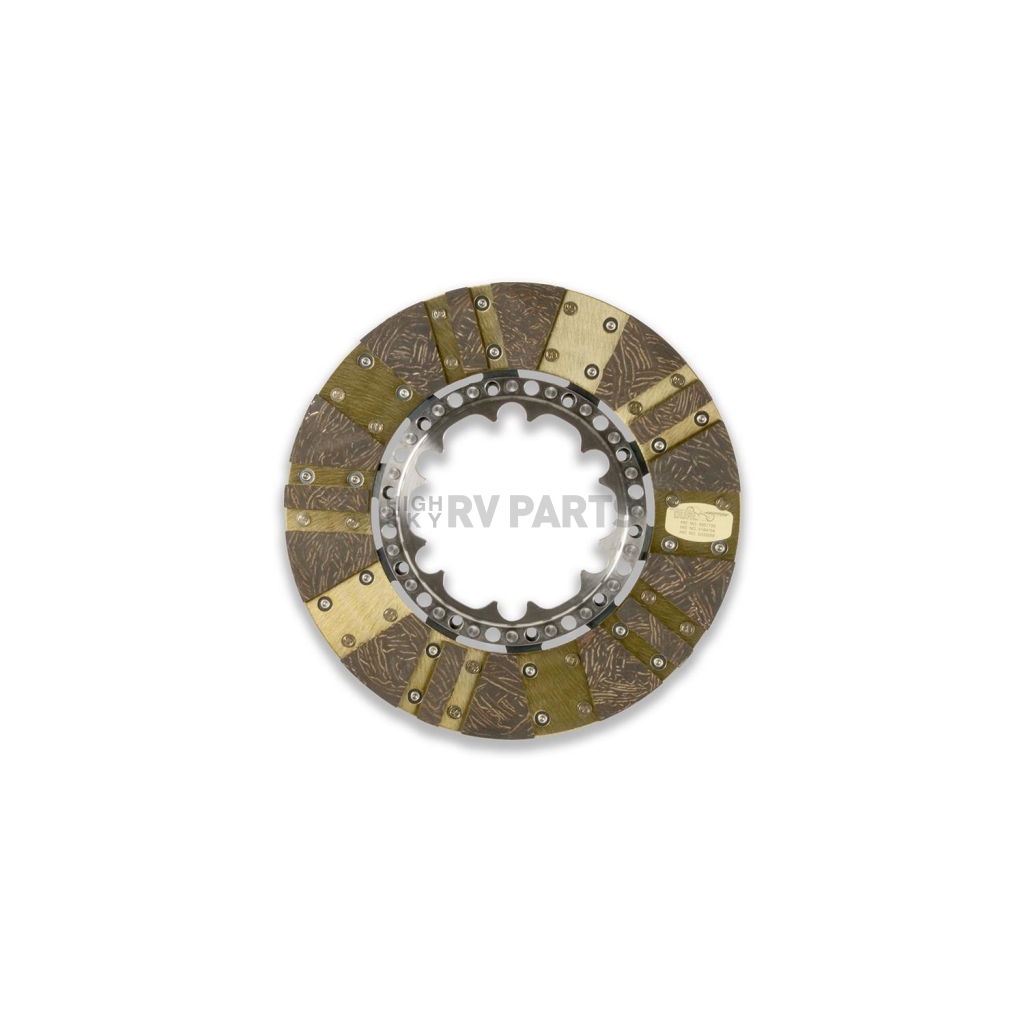

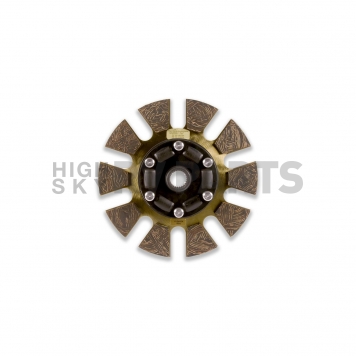

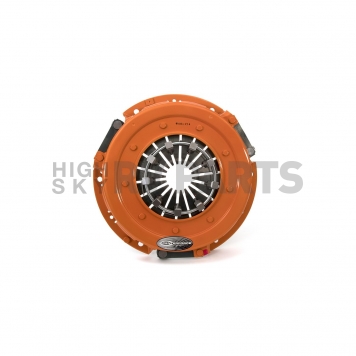

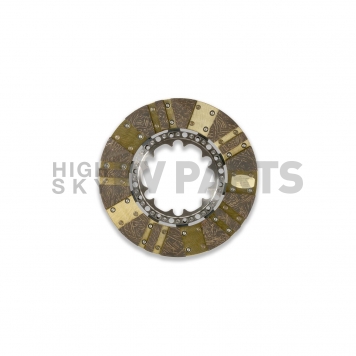

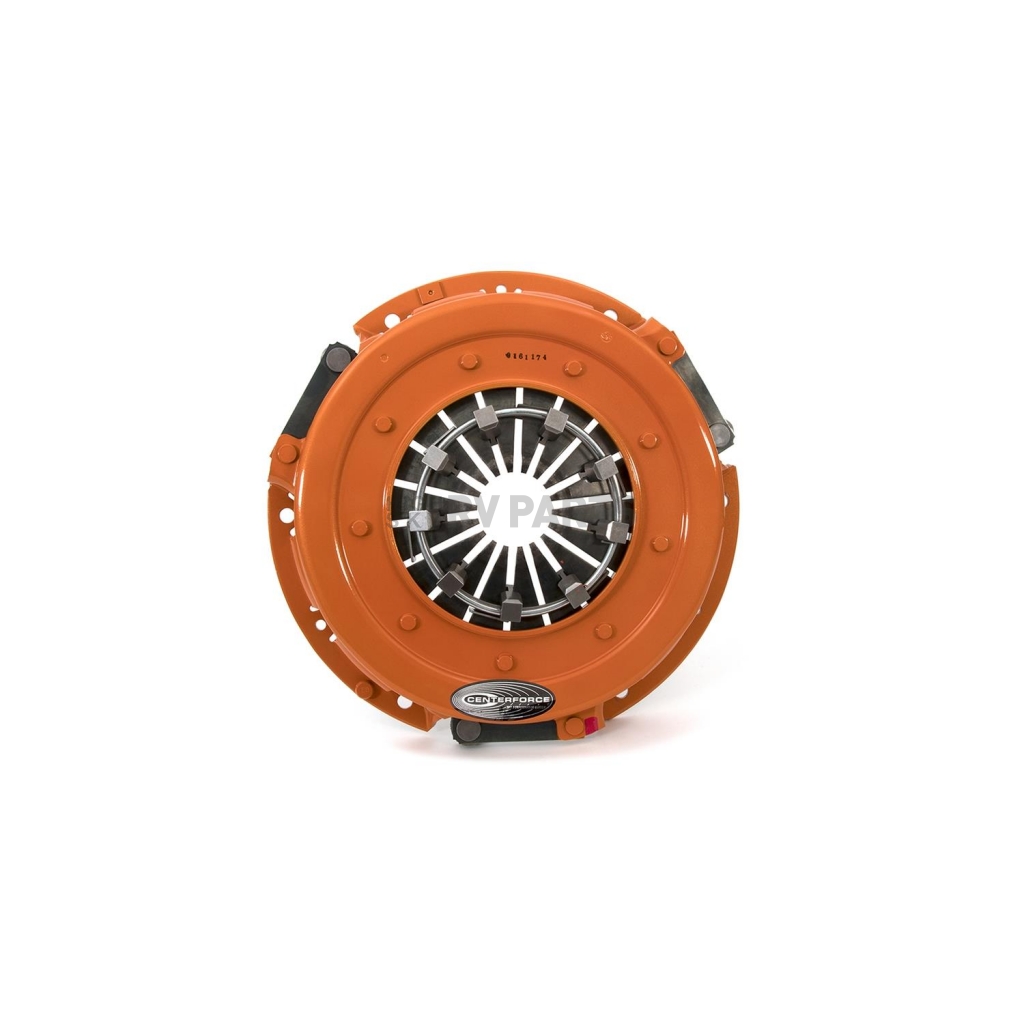

The Center force ® DYAD DS 10.4 Inch twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 Foot Per Pound of Torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.Features
- Ball Bearing Design
- Patented Multi-Disc Design
- Quiet, Positive Drive Floater
- Smooth And Light Pedal Effort
- Holds 500 To 1300 Foot Per Pound Of Torque
- Precision Balanced And Simple Install
- Limited 1 Year Warranty
Specifications of Centerforce DYAD DS 10.4 Clutch Set - 413234818 | |
Disc Diameter | 10.4 Inch |
Disc Friction Face Design | Full Face |
Disc Friction Material | Organic |
Disc Hub Design | Sprung Hub |
Flywheel Material | Steel |
Flywheel Tooth Count | 164 |
Includes Alignment Tool | Yes |
Includes Pilot Bearing | Yes |
Includes Throwout Bearing | No |
Input Shaft Size | 1 Inch |
Number Of Friction Discs | Dual Disc |
Pressure Plate Design | Diaphragm |
Pressure Plate Material | Nodular Iron |
2019 Ford Mustang
2020 Ford Mustang
