Cardone (A1) Industries CV Axle Shaft - 66-5272
Condition
New
Inboard Joint Spline Count
34
Includes ABS Rig
No
Length (IN)
26.22 Inch
Material
OEM
Outboard Joint Spline Count
36
Share this page

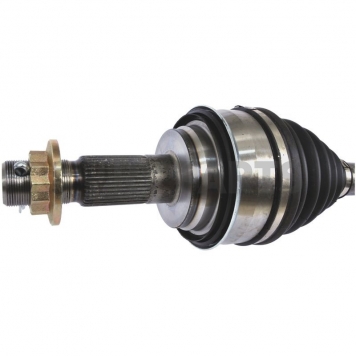

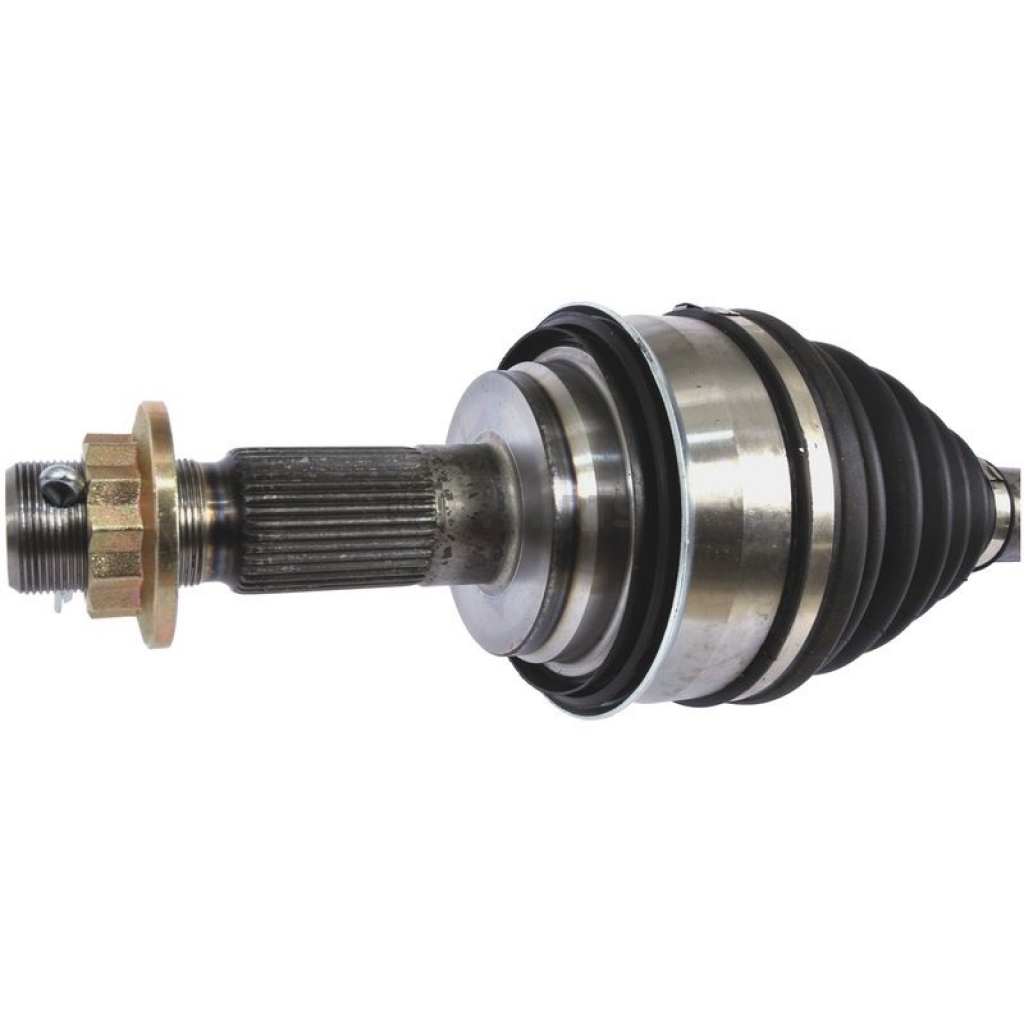

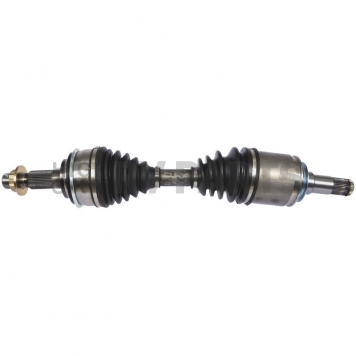

Cardone (A1) Industries CV Axle Shaft
CV Axle Shaft; OE Replacement; New; 26.22 Inch Compressed Length; With Spindle Nut
MPN: 665272
Cardone's extensive experience in testing and engineering CV Drive Axles is the foundation behind our proprietary method of engineering a product that meets and even exceed O.E. performance. We have researched the reasons why original CVs typically fail and designed new solutions to avoid repeat failure. For example, our Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and ozone cracking - the leading cause of boot failure. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.
Condition: New
Inboard Joint Spline Count: 34
Outboard Joint Spline Count: 36
Length (IN): 26.22 Inch
Includes ABS Rig: No
Material: OEM
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Neoprene Boots Ensure Excellent Environmental Stress Resistance, Which Eliminates Cracking - A Leading Cause Of Boot Failure
- Boot Clamps Are Pneumatically Crimped Creating A Perfect Seal Between The Boot And Housing
- High Quality Grease Withstands High-Temperature And Pressure Extremes, Which Extends Joint Life
- Transmission Seal Diameter Is Precision-Machined After Heat Treatment To Ensure Correct Surface Finish, Promoting Long Seal Life
- HD Suffix Are Severe-Duty Applications And Include A Thermoplastic Outboard Boot For Increased Life And Durability Versus A Traditional Neoprene Boot
- CV Drive Axle Measurements Are Validated After Assembly To Ensure A Proper Fit
- Splines Are Precision Rolled To Ensure Proper Fit Of CV Drive Axle Into The Mating Hub And Transmission, Which Eliminates Installation Hassles
- Threads Are Precision Rolled To Ensure Proper Fit When Axle Nut Is Installed
- A New Axle Retaining Nut Is Supplied With Every Unit For A Hassle-Free Installation, Due To The Likelihood That The Original Retaining Nut Is Worn Or Stripped
- Limited Lifetime Warranty
Specifications of Cardone (A1) Industries CV Axle Shaft - 66-5272 | |
Condition | New |
Inboard Joint Spline Count | 34 |
Includes ABS Rig | No |
Length (IN) | 26.22 Inch |
Material | OEM |
Outboard Joint Spline Count | 36 |
2008 Lexus LX570
2009 Lexus LX570
2010 Lexus LX570
2011 Lexus LX570
2009 Lexus LX570
2010 Lexus LX570
2011 Lexus LX570
2013 Lexus LX570
2014 Lexus LX570
2015 Lexus LX570
2016 Lexus LX570
2017 Lexus LX570
2018 Lexus LX570
2019 Lexus LX570
2020 Lexus LX570
2021 Lexus LX570
2014 Lexus LX570
2015 Lexus LX570
2016 Lexus LX570
2017 Lexus LX570
2018 Lexus LX570
2019 Lexus LX570
2020 Lexus LX570
2021 Lexus LX570
2008 Toyota Land Cruiser
2009 Toyota Land Cruiser
2010 Toyota Land Cruiser
2011 Toyota Land Cruiser
2009 Toyota Land Cruiser
2010 Toyota Land Cruiser
2011 Toyota Land Cruiser
2013 Toyota Land Cruiser
2014 Toyota Land Cruiser
2015 Toyota Land Cruiser
2016 Toyota Land Cruiser
2017 Toyota Land Cruiser
2018 Toyota Land Cruiser
2019 Toyota Land Cruiser
2020 Toyota Land Cruiser
2021 Toyota Land Cruiser
2014 Toyota Land Cruiser
2015 Toyota Land Cruiser
2016 Toyota Land Cruiser
2017 Toyota Land Cruiser
2018 Toyota Land Cruiser
2019 Toyota Land Cruiser
2020 Toyota Land Cruiser
2021 Toyota Land Cruiser
