Cardone (A1) Industries CV Axle Shaft - 66-3802

Name: Cardone (A1) Industries CV Axle Shaft - 66-3802
Brand: Cardone Industries
SKU: 66-3802
Price: 184.99 USD
Availability: InStock

Brand:

Cardone Industries

0 reviews

Have a product question? Ask us
Part Number: 66-3802
Part Location: U.S.
Availability: *Special Order
Delivery: 3 - 4 Weeks

Retail: $194.24

Price: $184.99

You Save: $9.25

Condition

New

Inboard Joint Spline Count

Includes ABS Rig

Length (IN)

25.19 Inch

Material

OEM

Outboard Joint Spline Count

Share this page

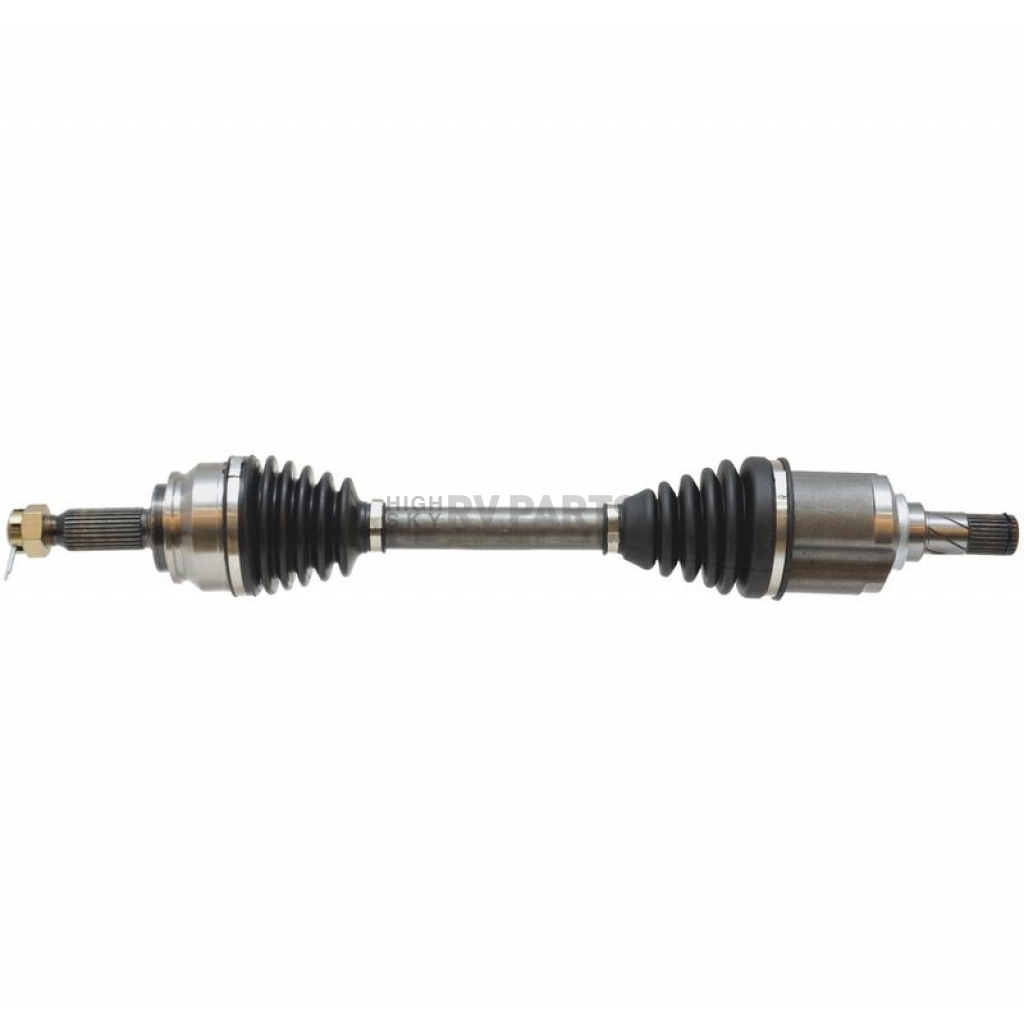

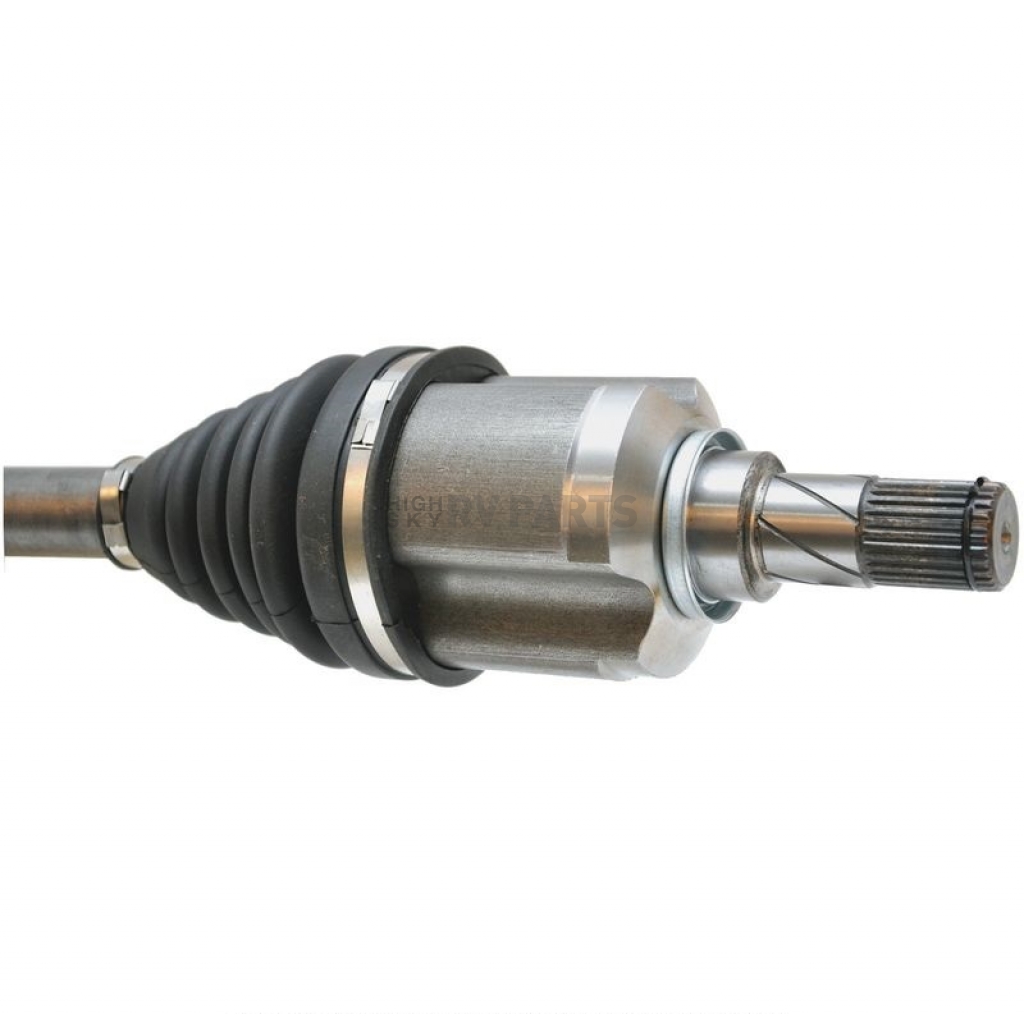

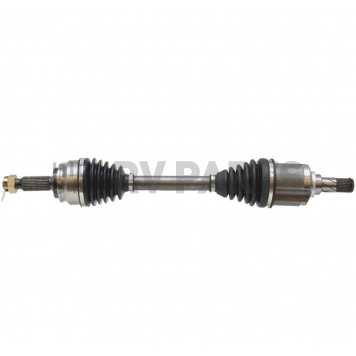

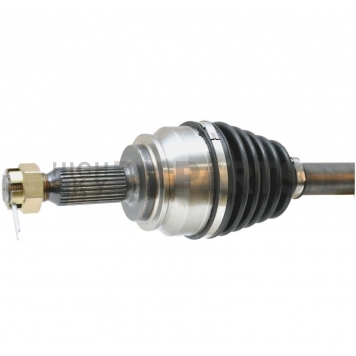

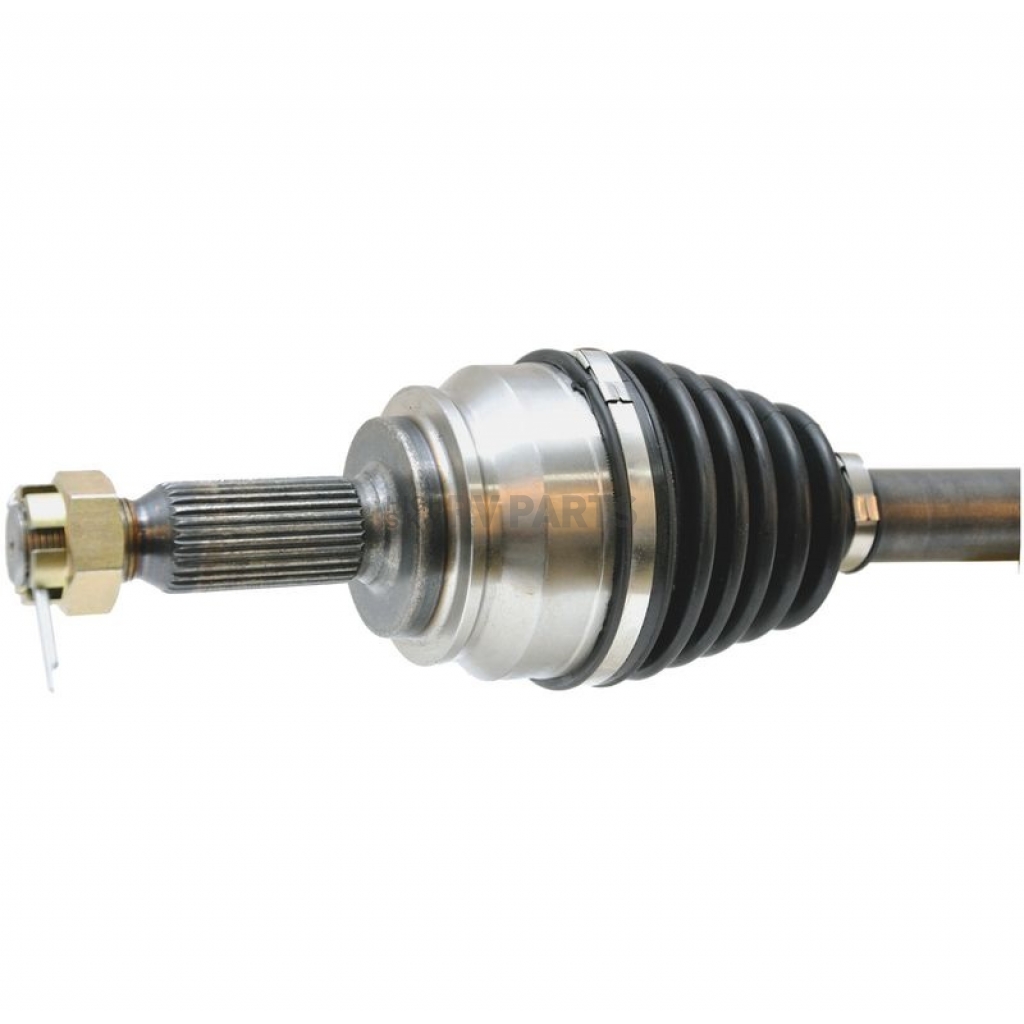

Cardone (A1) Industries CV Axle Shaft

CV Axle Shaft; OE Replacement; New; 25.197 Inch Compressed Length; With Spindle Nut

MPN: 663802

Cardone's extensive experience in testing and engineering CV Drive Axles is the foundation behind our proprietary method of engineering a product that meets and even exceed O.E. performance. We have researched the reasons why original CVs typically fail and designed new solutions to avoid repeat failure. For example, our Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and ozone cracking - the leading cause of boot failure. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.

Condition: New

Inboard Joint Spline Count: 28

Outboard Joint Spline Count: 27

Length (IN): 25.19 Inch

Includes ABS Rig: No

Material: OEM

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Neoprene Boots Ensure Excellent Environmental Stress Resistance, Which Eliminates Cracking - A Leading Cause Of Boot Failure
Boot Clamps Are Pneumatically Crimped Creating A Perfect Seal Between The Boot And Housing
High Quality Grease Withstands High-Temperature And Pressure Extremes, Which Extends Joint Life
Transmission Seal Diameter Is Precision-Machined After Heat Treatment To Ensure Correct Surface Finish, Promoting Long Seal Life
HD Suffix Are Severe-Duty Applications And Include A Thermoplastic Outboard Boot For Increased Life And Durability Versus A Traditional Neoprene Boot
CV Drive Axle Measurements Are Validated After Assembly To Ensure A Proper Fit
Splines Are Precision Rolled To Ensure Proper Fit Of CV Drive Axle Into The Mating Hub And Transmission, Which Eliminates Installation Hassles
Threads Are Precision Rolled To Ensure Proper Fit When Axle Nut Is Installed
A New Axle Retaining Nut Is Supplied With Every Unit For A Hassle-Free Installation, Due To The Likelihood That The Original Retaining Nut Is Worn Or Stripped
Limited Lifetime Warranty

Specifications of Cardone (A1) Industries CV Axle Shaft - 66-3802
Condition	New
Inboard Joint Spline Count	28
Includes ABS Rig	No
Length (IN)	25.19 Inch
Material	OEM
Outboard Joint Spline Count	27
