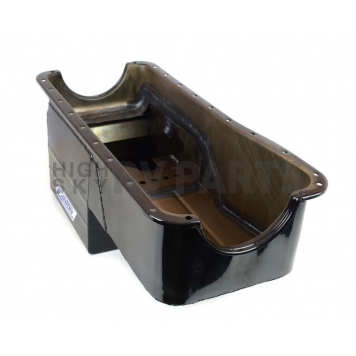

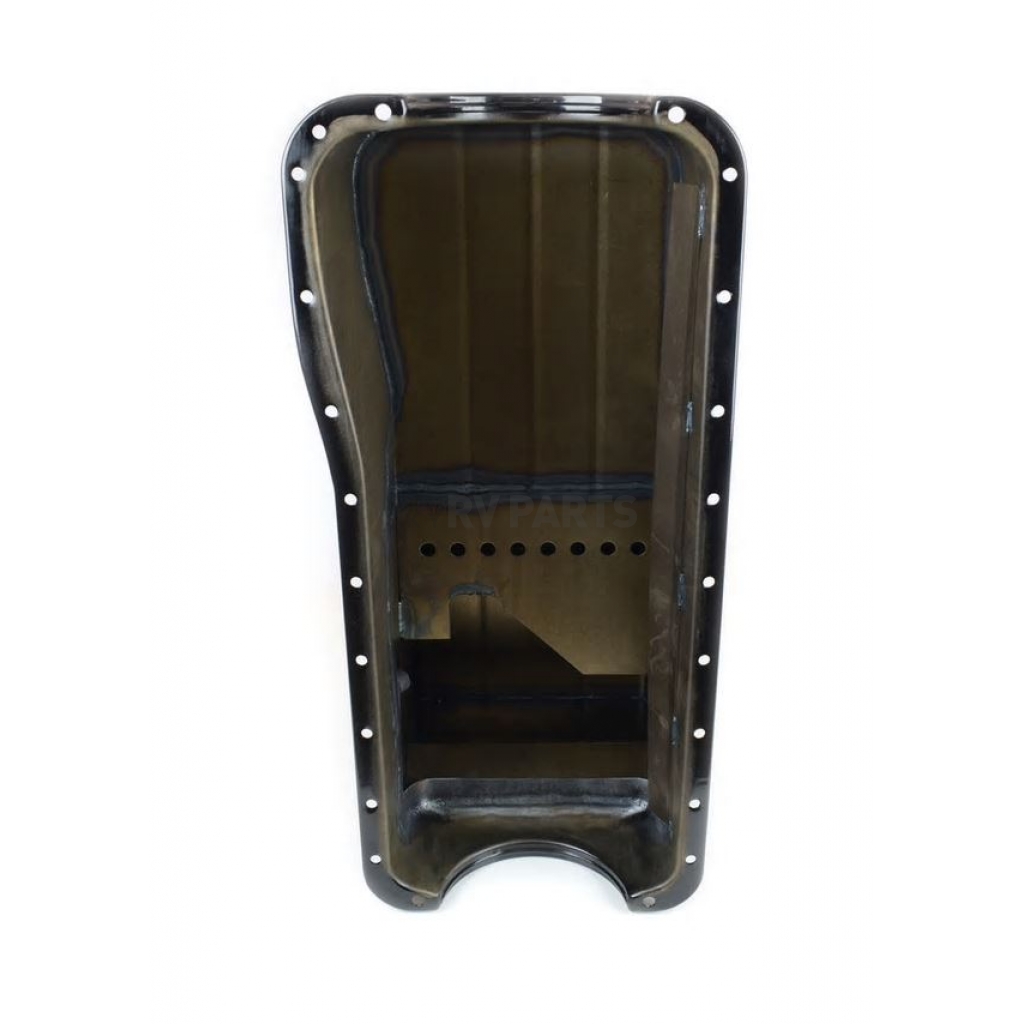

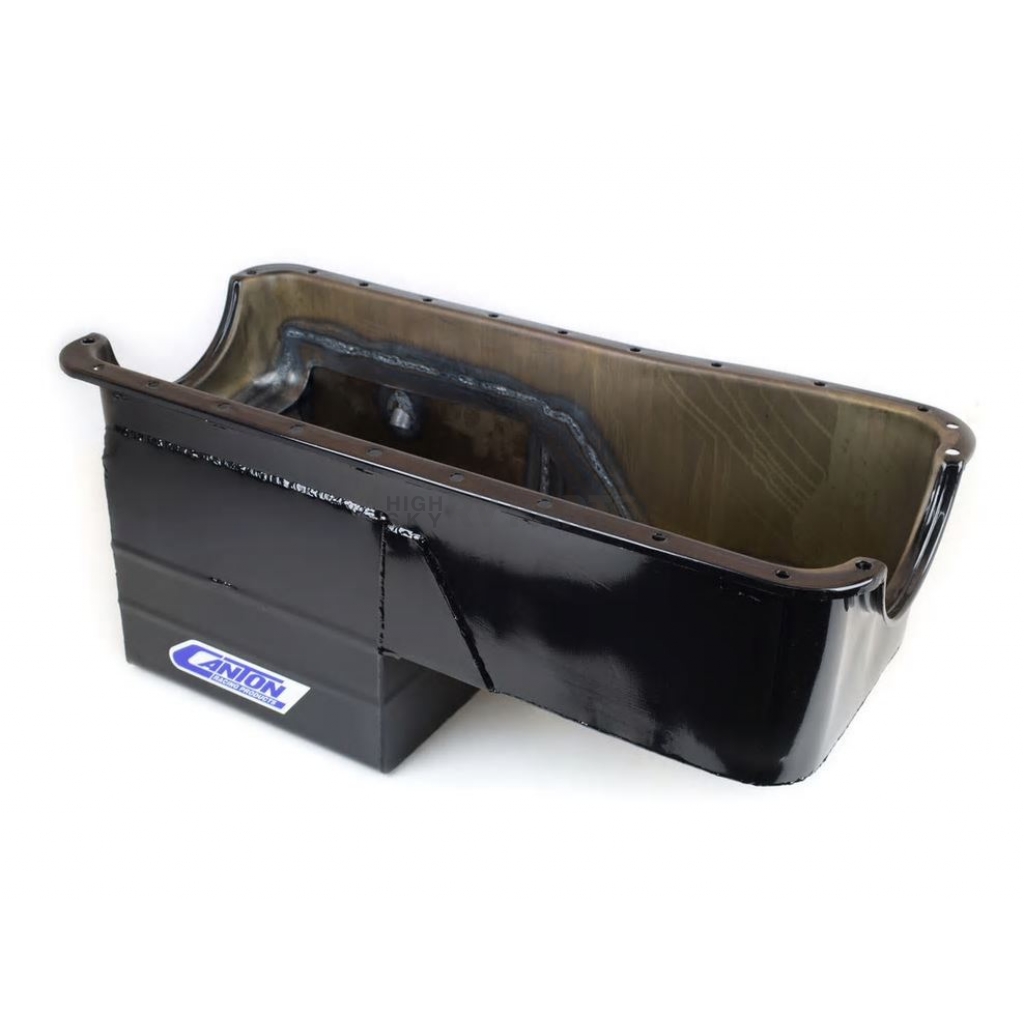

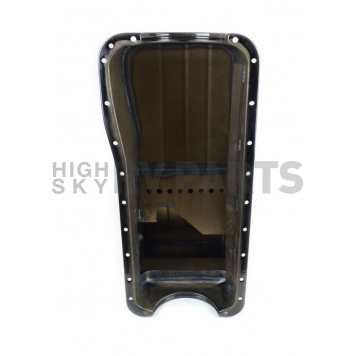

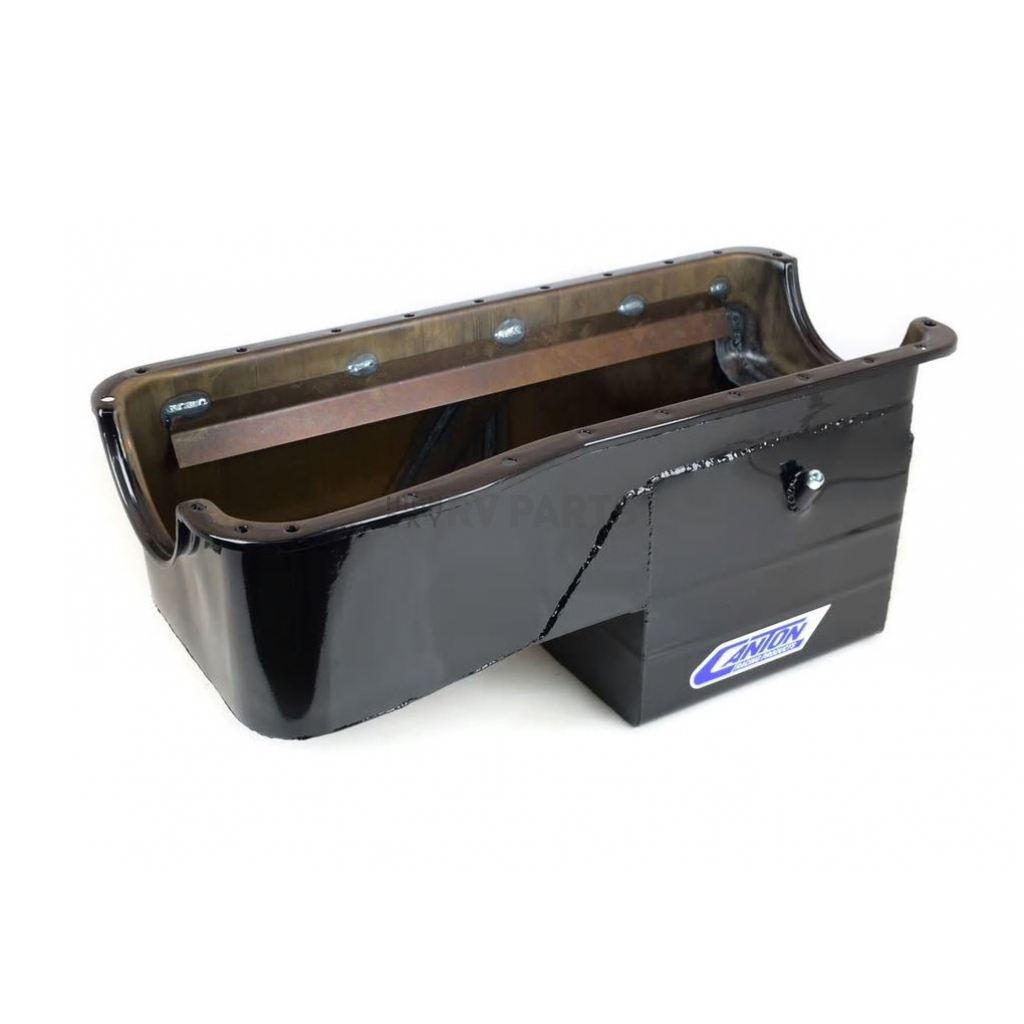

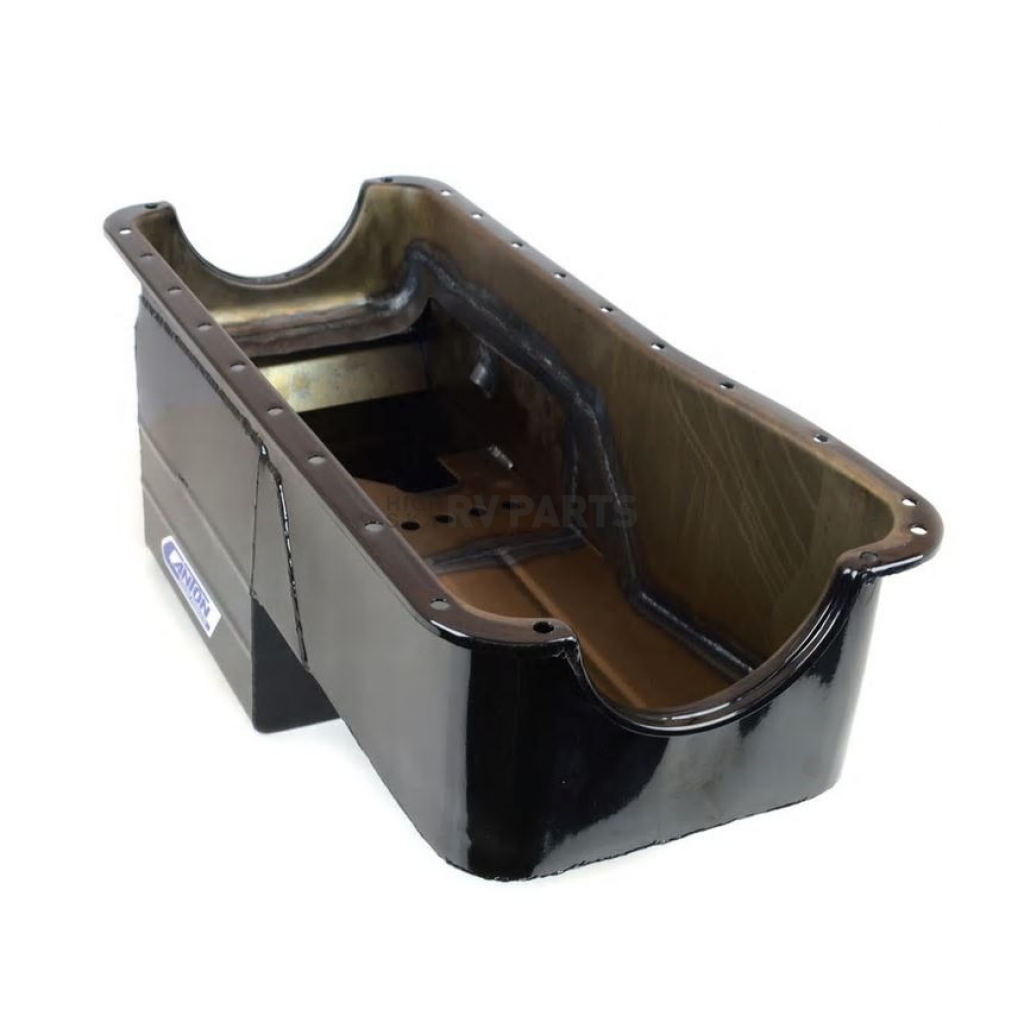

Canton Racing Wet Sump Oil Pan - 16-774
Baffled
Yes
Capacity
8 Quart
Color
Black
Depth (IN)
10-3/4 Inch
Dipstick Location
Driver Side
Dipstick Provision
Yes
Drain Plug Thread Size
1/2 Inch-20
Finish
Powder Coated
Includes Crank Scraper
Yes
Includes Pickup
No
Includes Windage Tray
No
Share this page
Oil Pan; Big Block Ford 429-460; 4 X 4; 7 Quart Capacity; Provisioned For Pan Mount Dipstick; Rear Sump; With Slosh Baffle; Powder Coated; Black; 14 Gauge Steel
MPN: 16-774
Recommended Use: Truck
Finish: Powder Coated
Color: Black
Material: Steel
Capacity: 8 Quart

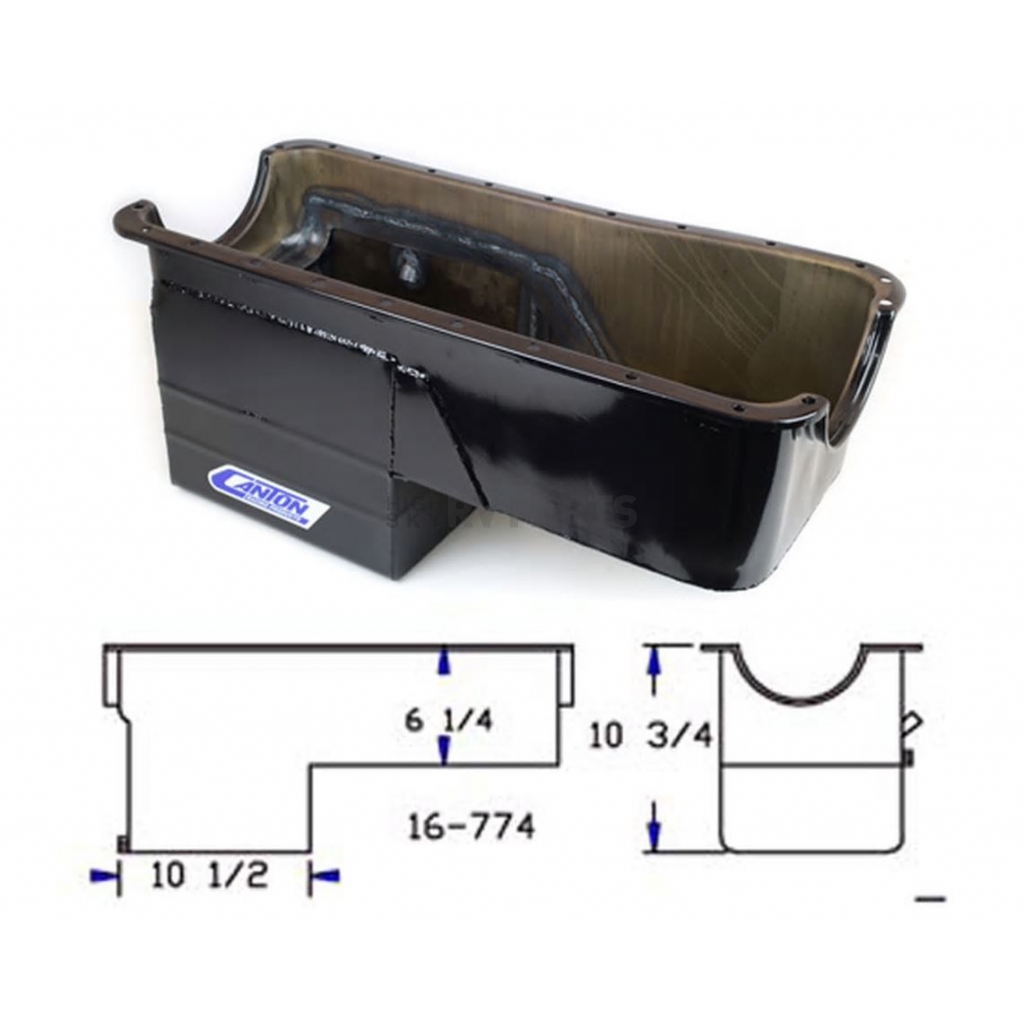

Depth (IN): 10-3/4 Inch
Baffled: Yes
Stroker Clearance: Yes
Drain Plug Thread Size: 1/2 Inch-20
Sump Position: Rear
Sump Style: Deep
Dipstick Provision: Yes
Dipstick Location: Driver Side
Kicked Out: No
Kicked Out Position: No Kicked Out
Includes Pickup: No
Includes Crank Scraper: Yes
Includes Windage Tray: No
Features
- 14 Gauge Steel Sump Construction
- Provision For Pan Mounted Dipstick
- Limited 1 Year Warranty
| Specifications of Canton Racing Wet Sump Oil Pan - 16-774 | |
| Baffled | Yes |
| Capacity | 8 Quart |
| Color | Black |
| Depth (IN) | 10-3/4 Inch |
| Dipstick Location | Driver Side |
| Dipstick Provision | Yes |
| Drain Plug Thread Size | 1/2 Inch-20 |
| Finish | Powder Coated |
| Includes Crank Scraper | Yes |
| Includes Pickup | No |
| Includes Windage Tray | No |
| Kicked Out | No |
| Kicked Out Position | No Kicked Out |
| Material | Steel |
| Recommended Use | Truck |
| Stroker Clearance | Yes |
| Sump Position | Rear |
| Sump Style | Deep |
1900 Ford 429-460
