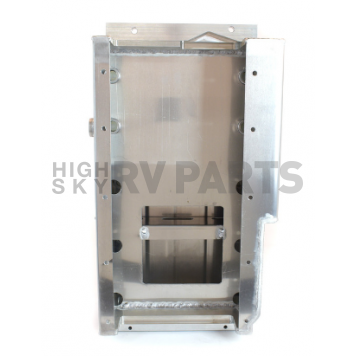

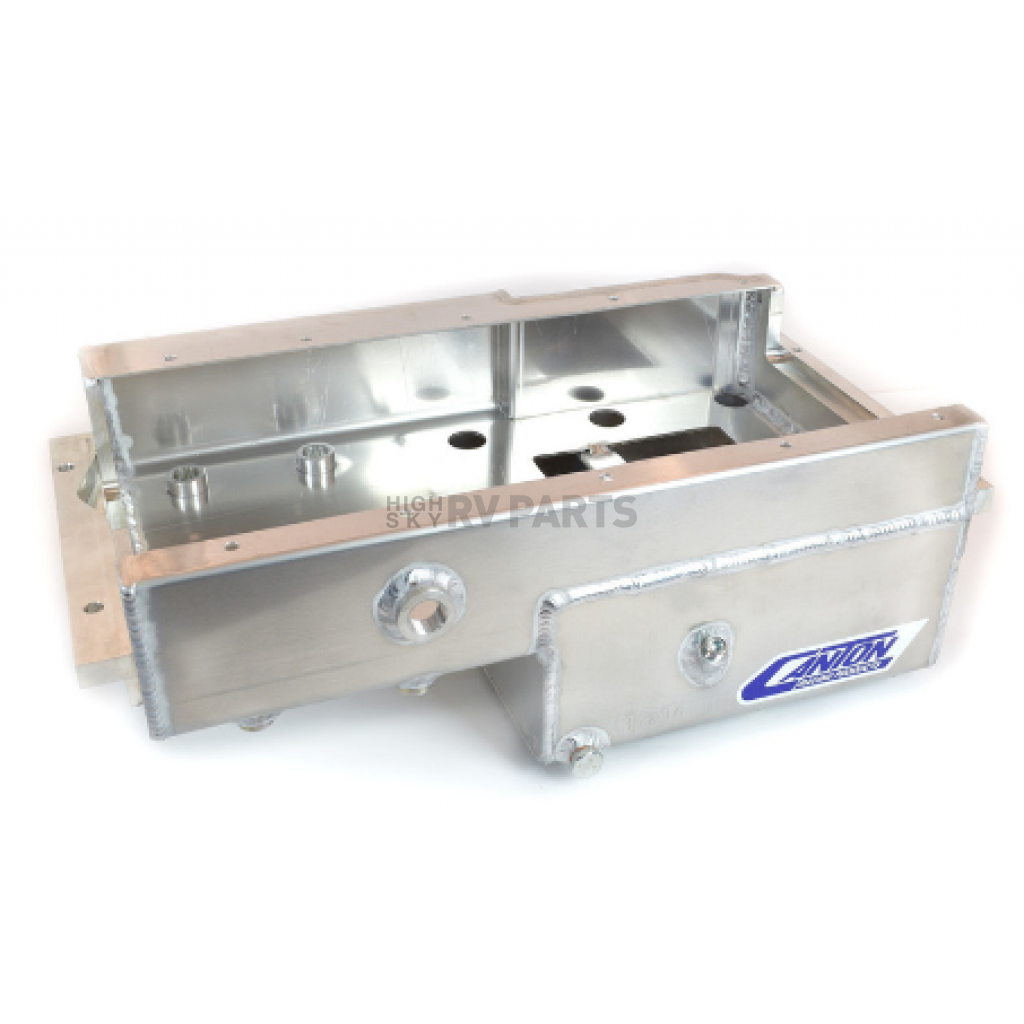

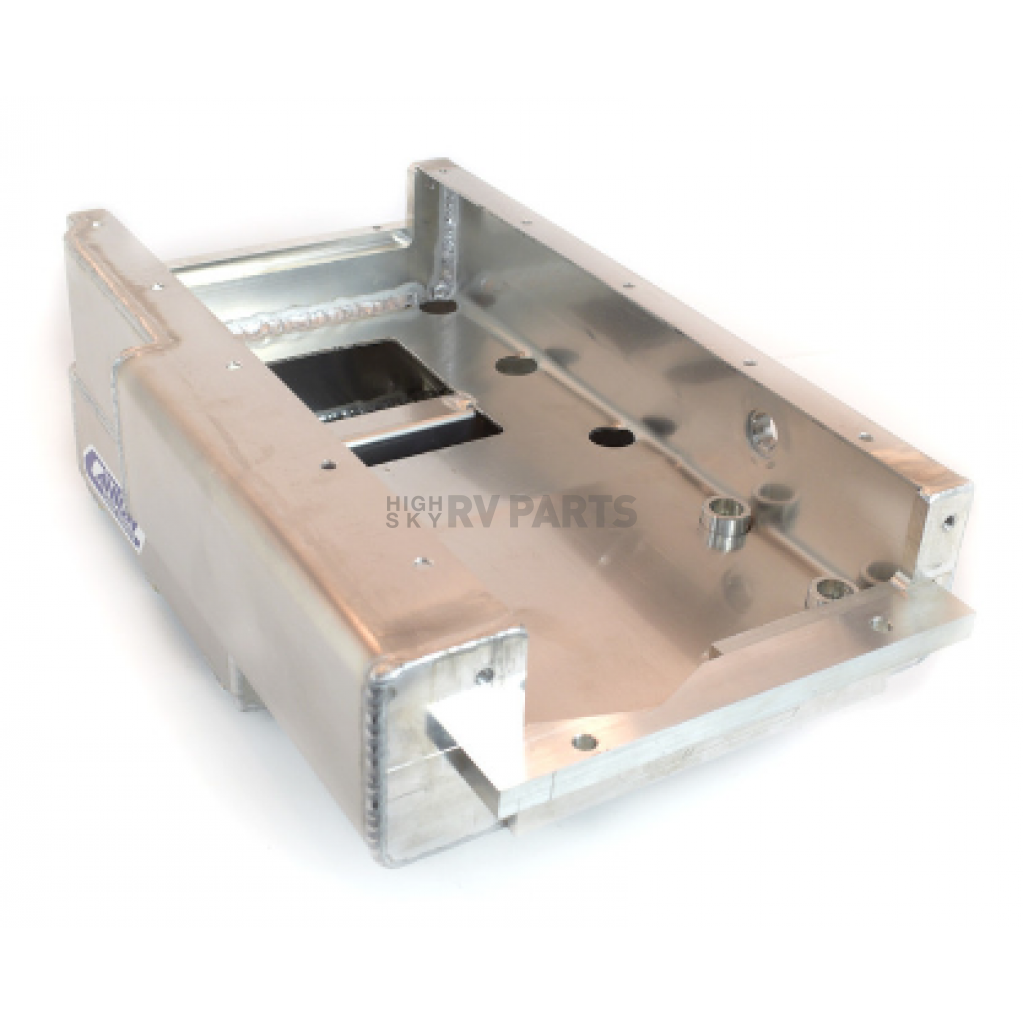

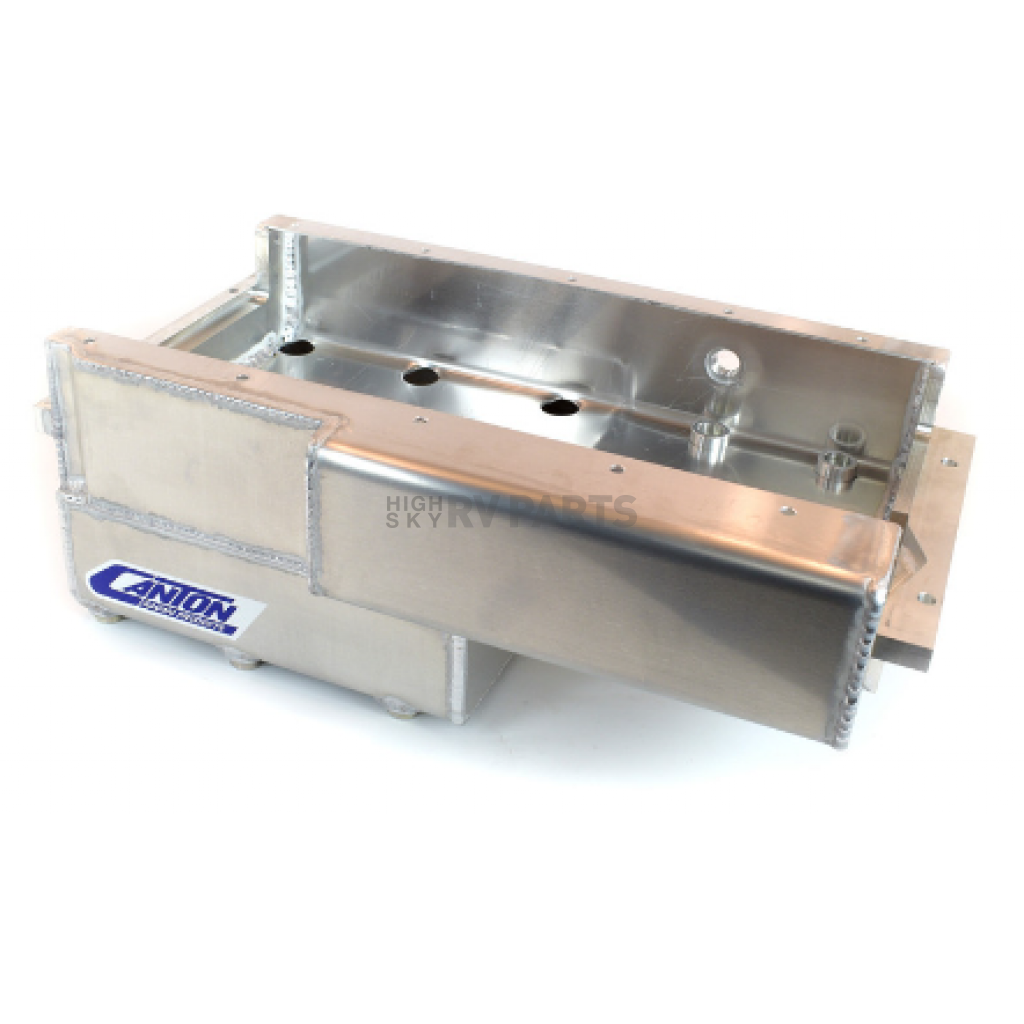

Canton Racing Drag Race Oil Pan - 13-280A
Canton Racing Drag Race Oil Pan
MPN: 13-280A
Our LS NEXT rear sump drag pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-Style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our drag racing baffle is designed to control the oil in street and strip applications of hard acceleration and deceleration. Will not fit on LS Next 2 blocks. This pan requires our pickup part #13-281.Features
* 5.25" Deep from rear engine cover, 7.25" Deep from rail
* 11" long by 11" wide sump
* 6.5 qt Capacity
* Pro Style Oil Recovery Pouch
* Machined Billet Front & Rear Seals
* Built in Slosh Baffle
* Drag Race Trap Door Baffle System
* Magnetic Drain Plug
* Provision for pan mounted dipstick
