Canton Racing Oil Cooler Adapter - 22-550
Includes Fittings
No
Includes O-Ring
Yes
Port Inlet Size (IN)
1/2 Inch
Port Outlet Size (IN)
1/2 Inch
Thermostatic
No
Thickness
1-1/2 Inch
Thread Size
13/16 Inch-16
Type
Sandwich
Share this page

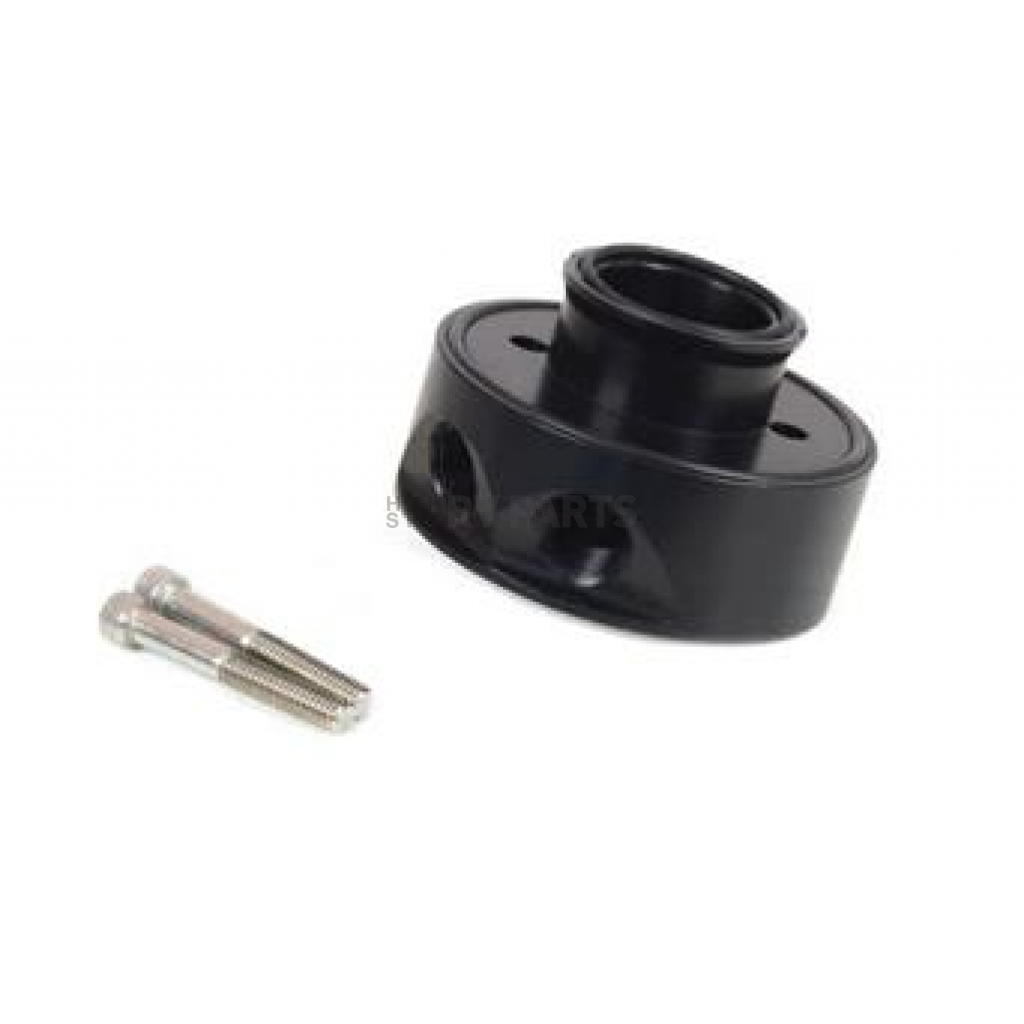

Canton Racing Oil Cooler Adapter
Oil Cooler Adapter; Sandwich Style; 1.5 Inch Thick; 1/2 Inch NPT Ports; With Hardware And O-Ring
MPN: 22550
This sbc oil input adapter and bypass eliminator provides two 1/2 Inch N.P.T. Oil input ports, one before filtration (for an external oil pump) and one after filtration (for an accusump). It mounts between the oil filter and block and bolts into the mounting holes left after the bypass is removed. Removing the stock bypass allows the engine to receive filtered oil all the time. The filter is lowered only 1-1/2 Inch. Comes with hardware and o-rings.
Type: Sandwich
Thread Size: 13/16 Inch-16
Thickness: 1-1/2 Inch
Port Inlet Size (IN): 1/2 Inch
Port Outlet Size (IN): 1/2 Inch
Thermostatic: No
Includes Fittings: No
Includes O-Ring: Yes
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Machined Billet Aluminum
- Mounts Between The Oil Filter And Block, Lowering Your Filter
- It Provides An In And Out Port For Installing An Oil Cooler In Almost Any Application
- Removing The Stock Bypass Allows The Engine To Receive Filtered Oil All The Time
- Limited 1 Year Warranty
| Specifications of Canton Racing Oil Cooler Adapter - 22-550 | |
| Includes Fittings | No |
| Includes O-Ring | Yes |
| Port Inlet Size (IN) | 1/2 Inch |
| Port Outlet Size (IN) | 1/2 Inch |
| Thermostatic | No |
| Thickness | 1-1/2 Inch |
| Thread Size | 13/16 Inch-16 |
| Type | Sandwich |
