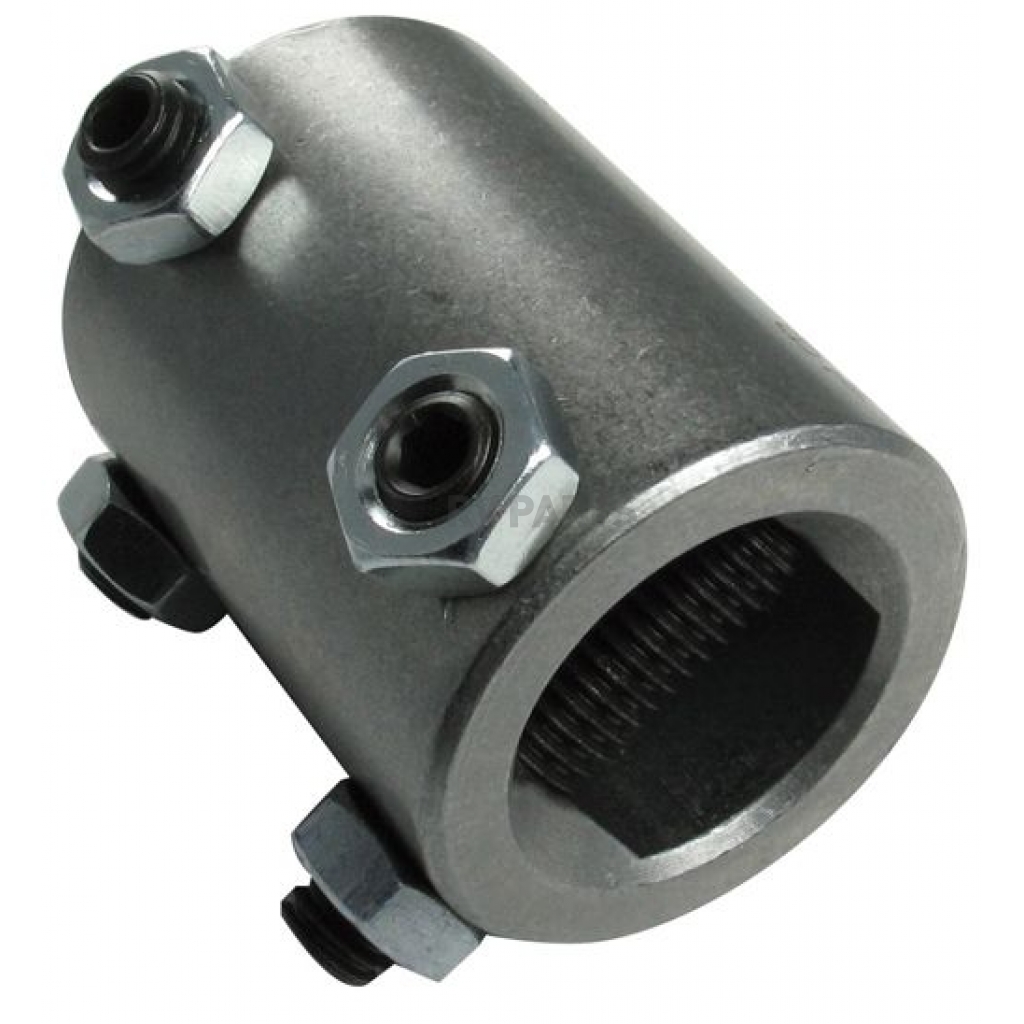

Borgeson Steering Shaft Coupler - 315249
Color
Silver
Compatibility
Borgeson Universal Steering
End Size 1
1 Inch
End Size 2
3/4 Inch
End Type 1
Double D
End Type 2
Double D
Material
Steel
Quantity
Single
Share this page
Steering Shaft Coupler; Universal; 1 Inch DD X 3/4 Inch DD; Steel; Single
MPN: 315249
A U-joint can sometimes be eliminated by using a 2 Inch straight extension, called a coupler, to extend either the steering box, RP shaft or the column shaft. The coupler can be welded and/or pinned to the un-splined end of a shaft. We offer shafts that are splined only on one end in 3 lengths: 5 Inch, 16 Inch and 36 Inch. The 1 Inch- 48 and 1 Inch Double D couplers have a 1-1/4 Inch hole that will accept either an adapter to reduce inside diameter to 3/4 Inch smooth or another splined or 3/4 Inch Double D coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler’s steel is less susceptible to heat damage from welding. Couplers are available in the same spline or double D sizes as our u-joints. Couplers and adapters are available in steel and stainless steel.Compatibility: Borgeson Universal Steering
End Type 1: Double D
End Size 1: 1 Inch
End Type 2: Double D
End Size 2: 3/4 Inch
Color: Silver
Material: Steel
Quantity: Single
Features
- Steel Construction
- Engineered To The Specifications
- Meets The Quality Standards
- Designed For Performance And Durability
- Easy Installation
- No Supplier Warranty
Specifications of Borgeson Steering Shaft Coupler - 315249 | |
Color | Silver |
Compatibility | Borgeson Universal Steering |
End Size 1 | 1 Inch |
End Size 2 | 3/4 Inch |
End Type 1 | Double D |
End Type 2 | Double D |
Material | Steel |
Quantity | Single |
