Borgeson Steering Shaft Coupler - 311200

Authorized Dealer
Brand: Borgeson Borgeson
0 reviews
  • Have a product question? Ask us
  • Part Number: 311200
  • Part Location: U.S.
  • Availability: 100 In Stock
  • Delivery: 2 - 3 Weeks
Retail: $24.15
Price: $23.00
You Save: $1.15
Color
 Silver
End Size 1
 9/16 Inch
End Size 2
 3/4 Inch
End Type 1
 36 Spline
End Type 2
 Smooth Bore
Material
 Steel
Quantity
 Single
Share this page

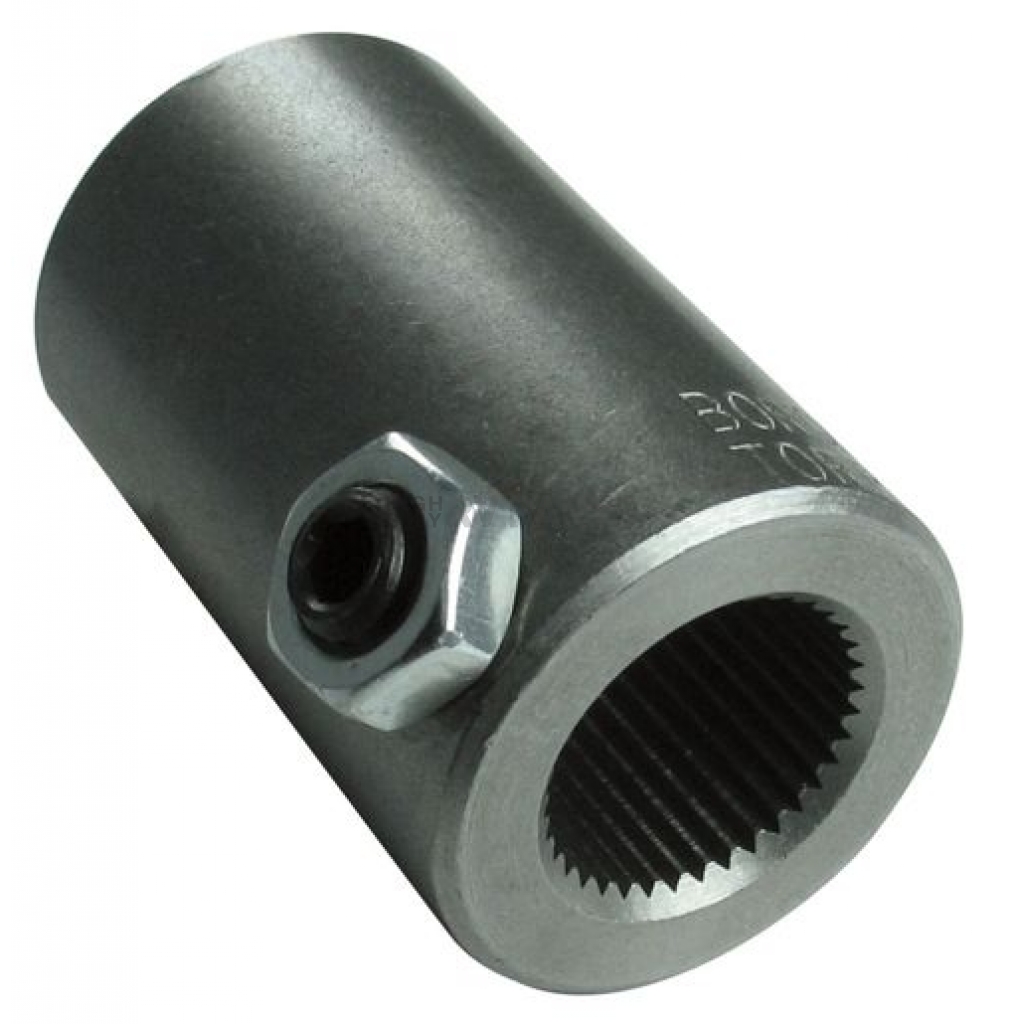

Steering Shaft Coupler; Universal; 9/16 Inch - 36 Spline X 3/4 Inch Smooth Bore; Steel; Single

MPN: 311200

A U-joint can sometimes be eliminated by using a 2 Inch straight extension, called a coupler, to extend either the steering box, RP shaft or the column shaft. The coupler can be welded and/or pinned to the un-splined end of a shaft. We offer shafts that are splined only on one end in 3 lengths: 5 Inch, 16 Inch and 36 Inch. The 1 Inch- 48 and 1 Inch Double D couplers have a 1-1/4 Inch hole that will accept either an adapter to reduce inside diameter to 3/4 Inch smooth or another splined or 3/4 Inch Double D coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler’s steel is less susceptible to heat damage from welding. Couplers are available in the same spline or double D sizes as our u-joints. Couplers and adapters are available in steel and stainless steel.

End Type 1: 36 Spline
End Size 1: 9/16 Inch
End Type 2: Smooth Bore
End Size 2: 3/4 Inch
Color: Silver
Material: Steel
Quantity: Single

Features

  • A U-Joint Can Sometimes Be Eliminated By Using A Straight Extension, Called A Coupler, To Extend Either The Steering Box, RP Shaft Or The Column Shaft
  • Couplers Have A Hole That Will Accept Either An Adapter To Reduce Inside Diameter Smooth Or Another Splined Or Double D Coupler
  • Welding The Coupler Is Acceptable Because There Are No Moving Parts To Damage, And The Coupler’s Steel Is Less Susceptible To Heat Damage From Welding
  • Limited 5 Year Warranty
Specifications of Borgeson Steering Shaft Coupler - 311200
Color  Silver
End Size 1  9/16 Inch
End Size 2  3/4 Inch
End Type 1  36 Spline
End Type 2  Smooth Bore
Material  Steel
Quantity  Single
