BMR Suspension Torque Arm - TA012R
Color
Red
Installation Type
Tunnel Mount
Material
Steel
Share this page

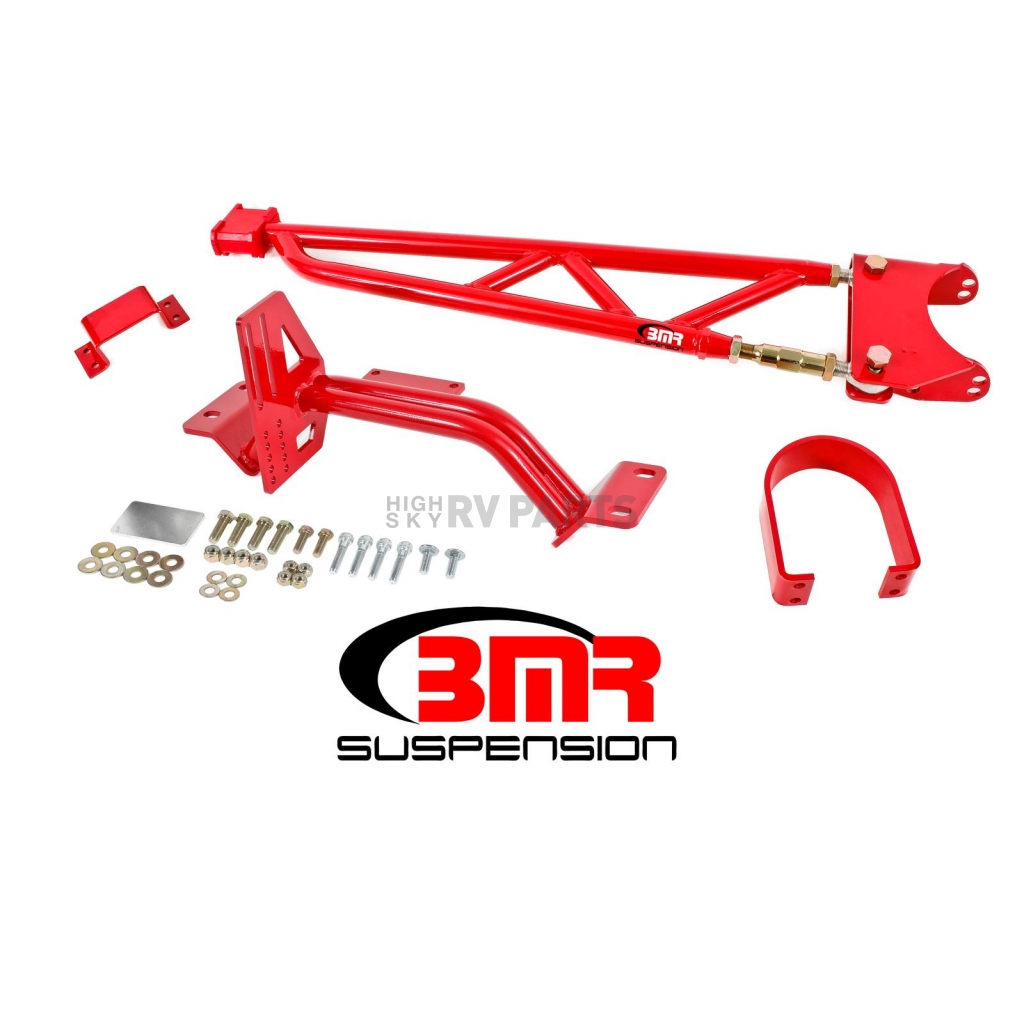

BMR Suspension Torque Arm
Torque Arm; Tunnel Mount; Powder coated; Red; 1.25 X 0.120 Inch Steel Tubing
MPN: TA012R
Improve handling, reduce wheel hop, and add strength and adjustability to your 4th-Gen GM F-body with Tunnel Mounted Torque Arms from BMR Suspension. The factory stamped steel torque arm deflects tremendously, even with mild amounts of horsepower and torque. Manufactured from heavy-duty 1.25 Inch, 0.120 Inch wall DOM steel tubing and heavy-duty 1/4 Inch, laser cut, CNC-formed steel plate, BMR’s Tunnel Mounted Torque Arms add strength and adjustability over the weak factory torque arm. The front mount utilizes a 95-duromter polyurethane bushing for long, quiet, and trouble free operation. The torque arms use the rear factory mounting locations with heavy-duty rod ends. Instant center and pinion angle is adjustable using five positions on the torque arm cross member and a CNC machined 4130 Chrome-moly adjuster. Mounting the torque arm to the transmission tunnel mount instead of the transmission tail shaft is ideal for high-horsepower applications. The tunnel mount design removes the load from the transmission, which can damage the transmission. This design puts the heavy loads of high-power cars into the chassis. The torque arm cross member provides an adjustable mounting plate for the torque arm, while adding strength to the floor by reinforcing the transmission tunnel.
Color: Red
Material: Steel
Installation Type: Tunnel Mount
Features
- Eliminated The Load On The Transmission Tail Shaft
- Increases Floor Strength
- CNC-Machined, On-Car Torque Arm Adjuster For Pinion Angle
- 95-Durometer Polyurethane Front Mount
- MIG-Welded
- Limited Lifetime Warranty
Specifications of BMR Suspension Torque Arm - TA012R | |
Color | Red |
Installation Type | Tunnel Mount |
Material | Steel |
1993 Chevrolet Camaro
1994 Chevrolet Camaro
1995 Chevrolet Camaro
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1994 Chevrolet Camaro
1995 Chevrolet Camaro
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
