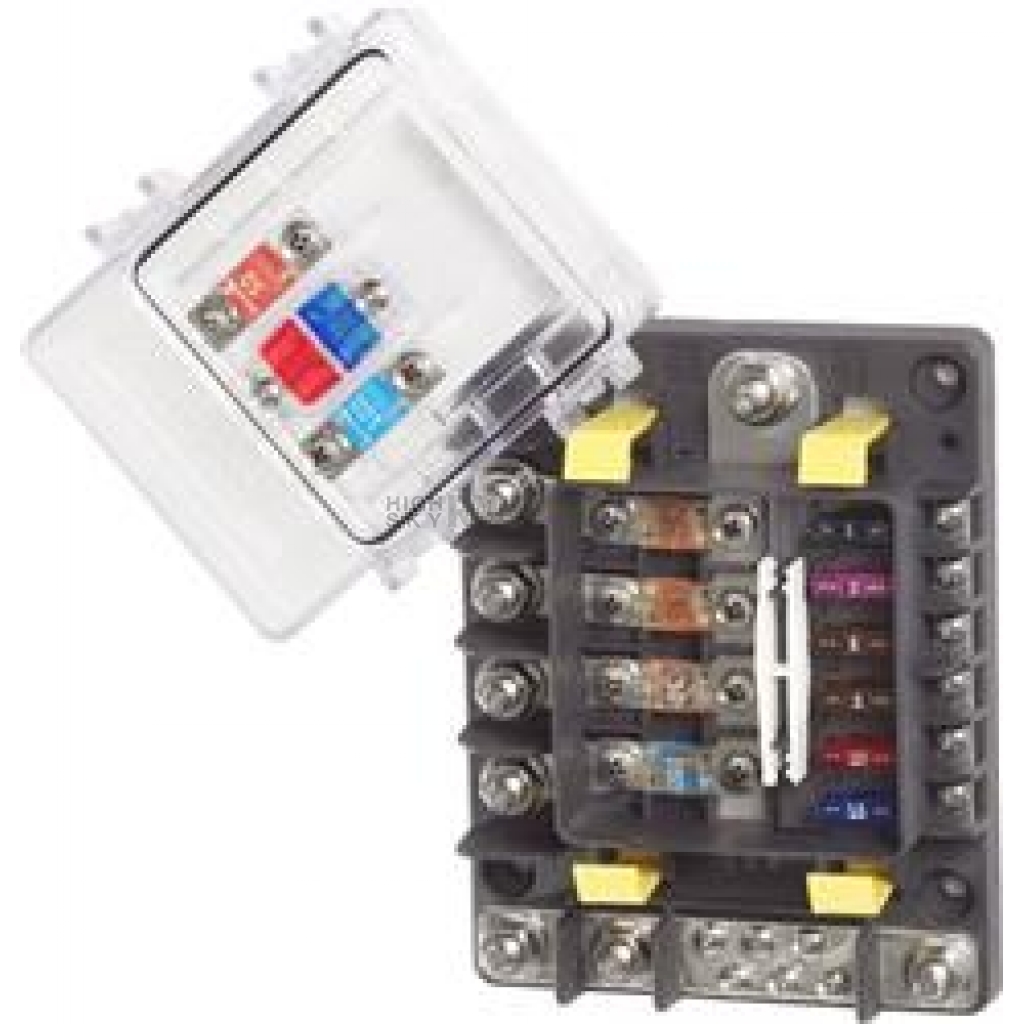

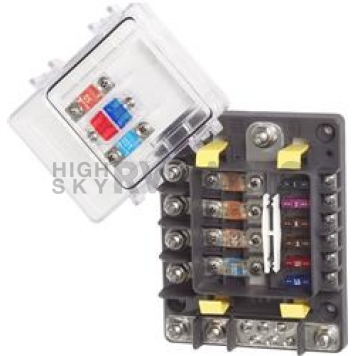

Blue Sea Fuse Block 7748

Brand: Blue Sea Blue Sea
0 reviews
  • Have a product question? Ask us
  • Part Number: 7748
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $175.34
Price: $166.99
You Save: $8.35
Circuit Type
Bilge Pumps, Electronics And Lights
Cover Style
Protective Cover
Fuse Type
AMI/ MIDI/ ATO/ ATC
Includes Flashers
No
Includes Fuses
No
Includes Horn Relay
No
Includes Mounting Brackets
No
Includes Terminals
Yes
Power Rating
32 Volt DC/ 600 Amp
Status Indicator Type
No
Share this page

Blue Sea Fuse Block

Fuse Block; 32 Volts DC; 600 Amps; Uses AMI/ MIDI/ ATO/ ATC Fuse; With 10 Circuits/ Protective Cover/ 8 Write-On Circuit Labels

MPN: 7748

Fuse blocks loaded with fuses protect the wire in electrical circuits. Their robust design makes them ideal for marine and vehicle AC and DC electrical systems.
Power Rating: 32 Volt DC/ 600 Amp
Circuit Type: Bilge Pumps, Electronics And Lights
Fuse Type: AMI/ MIDI/ ATO/ ATC
Status Indicator Type: No
Cover Style: Protective Cover
Includes Flashers: No
Includes Fuses: No
Includes Horn Relay: No
Includes Mounting Brackets: No
Includes Terminals: Yes

Features

  • An Ignition Protected Fuse Block With Screw Termination Safe For Use On Gasoline Powered Boats
  • Accepts Four AMI® Or MIDI® Fuses For High-Ampere Circuits Up To 200 Ampere
  • Accepts Six ATO® Or ATC® Fuses For Circuits Up To 30 Ampere
  • Sealed Cover Protects Fuses From The Harsh Marine Environment And Satisfies ABYC/USCG Insulation Requirements
  • Negative Bus Provides Common Location For Negative Connection
  • Circuit Identification Label With Write-On Capability
  • Fuse Puller Easily Removes ATO® Or ATC® Fuses
  • One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
  • Cover Provides Storage Space For Two Spare ATO® Or ATC® And Two Spare AMI® Or MIDI® Fuses And Mounting Screws
  • Limited 90 Day Warranty
Specifications of Blue Sea Fuse Block 7748
Circuit Type Bilge Pumps, Electronics And Lights
Cover Style Protective Cover
Fuse Type AMI/ MIDI/ ATO/ ATC
Includes Flashers No
Includes Fuses No
Includes Horn Relay No
Includes Mounting Brackets No
Includes Terminals Yes
Power Rating 32 Volt DC/ 600 Amp
Status Indicator Type No
