Blue Sea Fuse Block 5032BSS

Brand: Blue Sea Blue Sea
0 reviews
  • Have a product question? Ask us
  • Part Number: 5032BSS
  • Part Location: U.S.
  • Availability: 22 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $71.39
Price: $67.99
You Save: $3.40
Cover Style
Protective Cover
Fuse Type
ATO/ ATC Blade
Includes Flashers
No
Includes Fuses
No
Includes Horn Relay
No
Includes Mounting Brackets
No
Includes Terminals
Yes
Power Rating
32 Volt DC/ 100 Amp Total/ 30 Amp Per Circuit
Status Indicator Type
No
Share this page

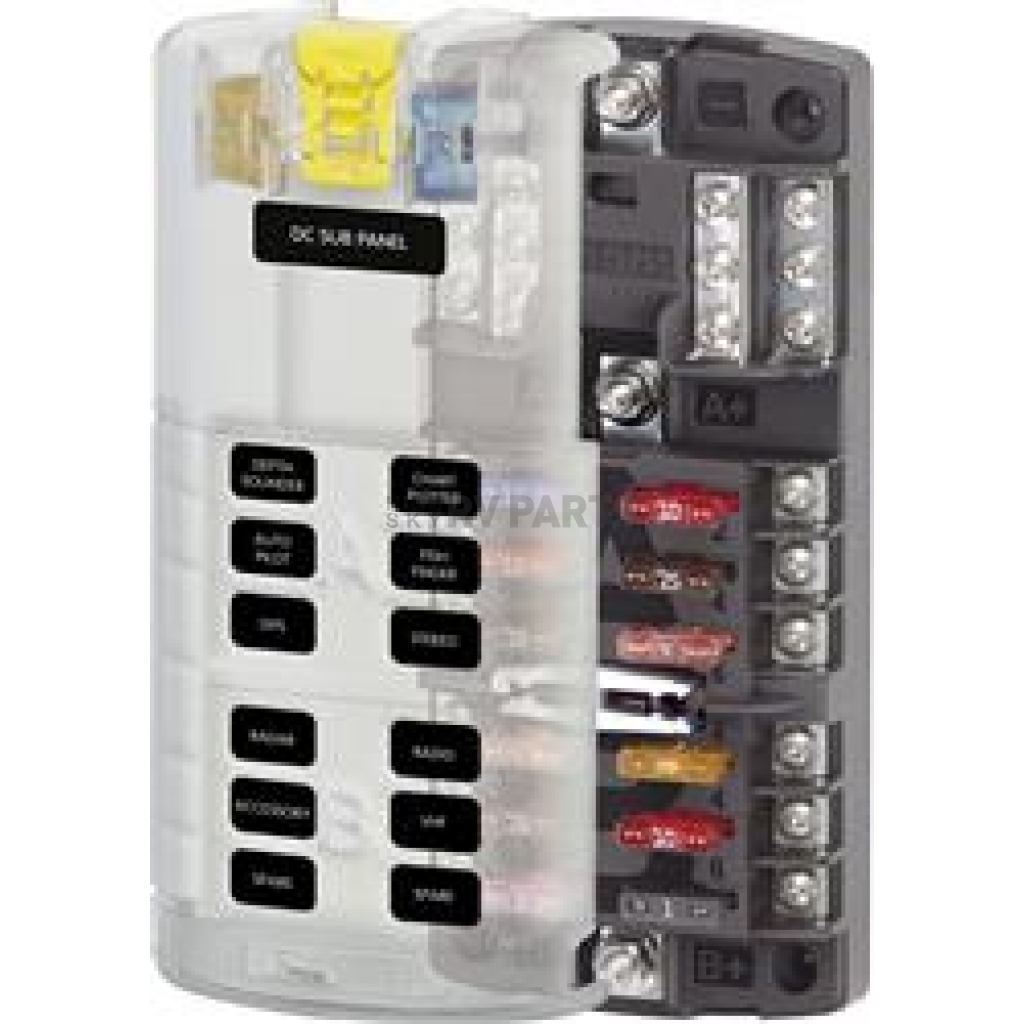

Blue Sea Fuse Block

Fuse Block; 32 Volts DC; 100 Amps Total/ 30 Amps Per Circuit; Uses ATO/ ATC Blade Style Fuse; With 12 Circuits/ Protective Cover; Tin-Plated Copper Buses

MPN: 5032BSS

For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits. Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC and USCG insulation requirements.
Power Rating: 32 Volt DC/ 100 Amp Total/ 30 Amp Per Circuit
Fuse Type: ATO/ ATC Blade
Status Indicator Type: No
Cover Style: Protective Cover
Includes Flashers: No
Includes Fuses: No
Includes Horn Relay: No
Includes Mounting Brackets: No
Includes Terminals: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Tin-Plated Copper Buses And Fuse Clips
  • Provides Two Isolated Groups Of Six ATO ® ATC ® Circuits
  • One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
  • Easy To Open, Push Button Latch For Easy Access To Fuses
  • Screw Terminals For Securing Wires Accept Ring Terminals
  • No Supplier Warranty
Specifications of Blue Sea Fuse Block 5032BSS
Cover Style Protective Cover
Fuse Type ATO/ ATC Blade
Includes Flashers No
Includes Fuses No
Includes Horn Relay No
Includes Mounting Brackets No
Includes Terminals Yes
Power Rating 32 Volt DC/ 100 Amp Total/ 30 Amp Per Circuit
Status Indicator Type No
