Blue Sea Circuit Breaker - 3106100
Ampere Rating
30 Amp
Estimated Install Time (Hours)
0.25
Number of Poles
2
Quantity
Single
Reset Type
Manual
Terminal Connection
Screw
Type
Magnetic Hydraulic
Voltage Rating
120/ 240 Volt
Share this page

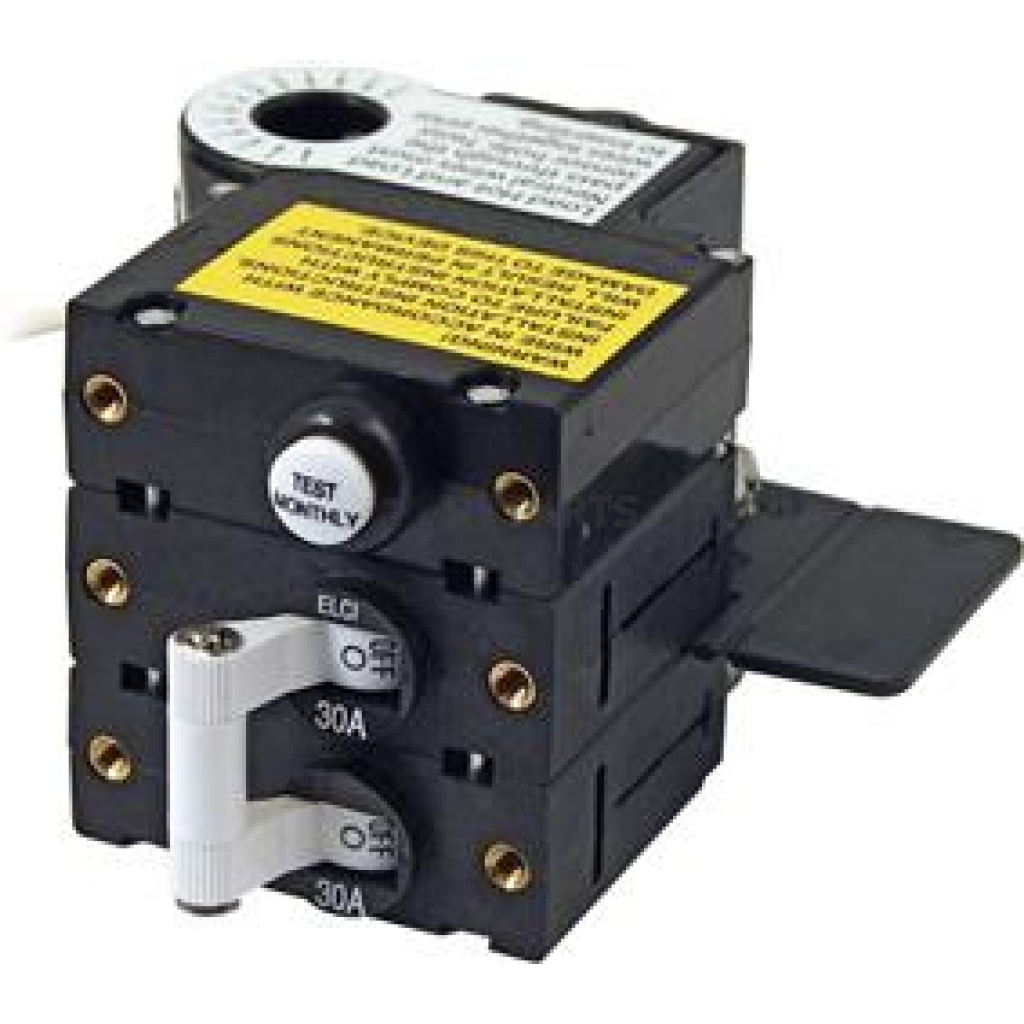

Blue Sea Circuit Breaker
Circuit Breaker; 30 Amps/ 120/ 240 Volt AC; ELCI Main; Double Pole Magnetic Hydraulic Type; Toggle Actuator; Single
MPN: 3106100
Residual Current Devices (RCDs) respond to leakage of electrical current outside of the intended circuit path. When the RCD function is combined with a circuit breaker for over current protection, the device is often referred to as an Residual Circuit Breaker with OverLoad (RCBO). Circuit breakers protect the wire in electrical circuits. Their robust design makes them ideal for marine and vehicle AC and DC electrical systems.
Type: Magnetic Hydraulic
Ampere Rating: 30 Amp
Voltage Rating: 120/ 240 Volt
Number of Poles: 2
Reset Type: Manual
Terminal Connection: Screw
Quantity: Single
Estimated Install Time (Hours): 0.25
Features
- Trips On Short Circuit, Overload, Or Leakage To Ground
- Provides Overcurrent And Leakage Protection Per ABYC E-11 For Whole Boat Shore Power Protection
- Meets UL 1077, UL 1500 And UL 943 A Specifications
- Front Panel Mount - Installed In A Power Distribution Panel
- Limited 90 Day Warranty
| Specifications of Blue Sea Circuit Breaker - 3106100 | |
| Ampere Rating | 30 Amp |
| Estimated Install Time (Hours) | 0.25 |
| Number of Poles | 2 |
| Quantity | Single |
| Reset Type | Manual |
| Terminal Connection | Screw |
| Type | Magnetic Hydraulic |
| Voltage Rating | 120/ 240 Volt |
