Blue Sea Busbar 1992
Ampere
1000 Amps
Length (IN)
11.82 Inch
Material
Tin-Plated Copper Bus
Number Of Terminals
8
Type
Flat Strip
Voltage Rating
150 Volts
Width (IN)
4.59 Inch
With Insulated Cover
Yes
Share this page

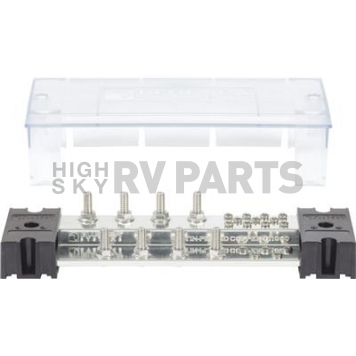

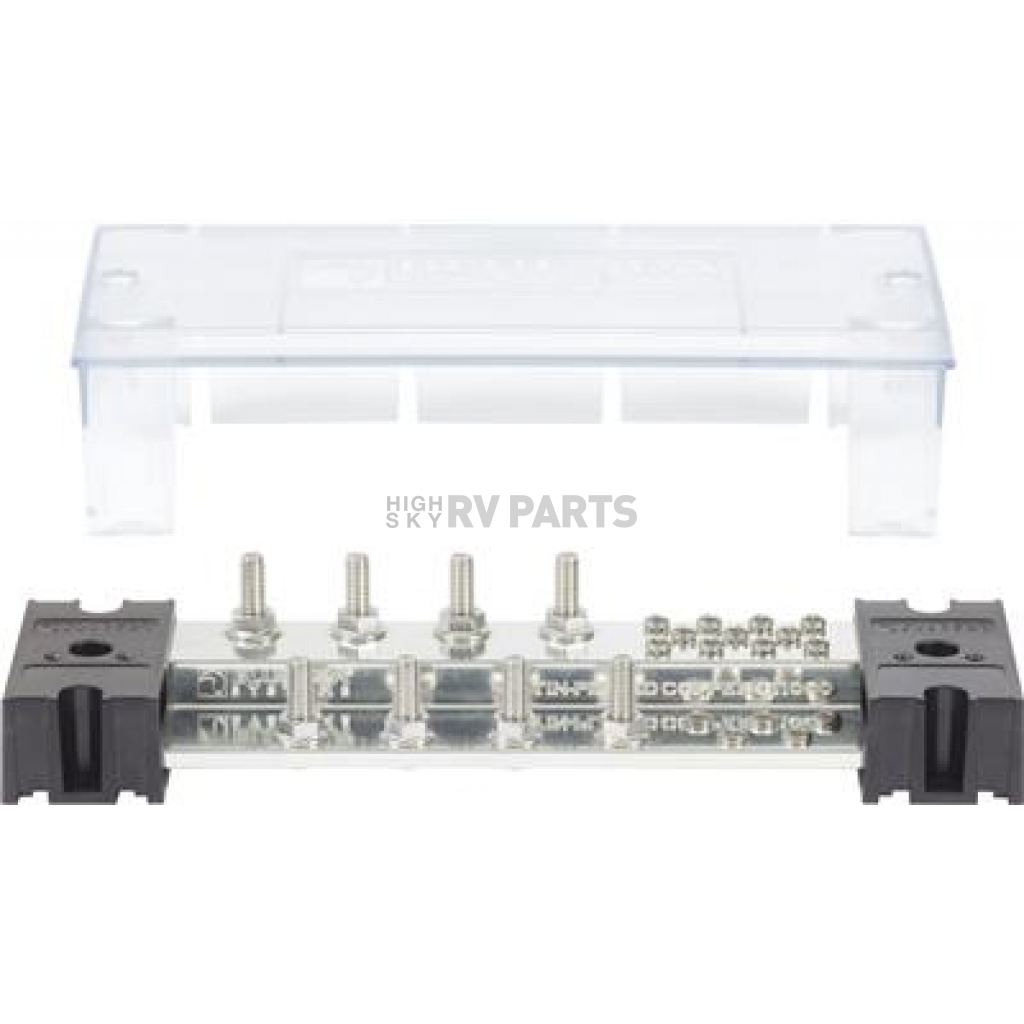

Blue Sea Busbar
Busbar; 8 Stud Terminal/ 16 Screw Terminal; 150 Volts; 1000 Amps; 5/16 Inch-8 Studs; With Insulation Cover; Tin-Plated Copper Bus
MPN: 1992
Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Ampere busbar with various size studs and screws to connect conductors and fuse blocks. The stepped tin plated pure electrical copper bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars. Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables.
Type: Flat Strip
Number Of Terminals: 8
Voltage Rating: 150 Volts
Ampere: 1000 Amps
Length (IN): 11.82 Inch
Width (IN): 4.59 Inch
Material: Tin-Plated Copper Bus
With Insulated Cover: Yes
Features
- 1,000 Ampere Busbar For Large Complex Wiring Systems
- Tin Plated Pure Electrical Copper For Maximum Conductivity
- Stepped Bus Design Offers Two Elevations For Conductors Which Doubles The Density Of The Wire Loom Compared To Traditional Bus Bars
- Busbar And Fuse Block Elevations Match Common Fuse Blocks Allowing For Multiple Fuse Block Attachment, Eliminating The Need For Connecting Cables
- One-Piece Serrated Flange Nuts Ensure Correct And Secure Connections
- Stainless Steel 8 To 32 Screws With Captive Lock Washers For Securing Smaller Gauge Wires
- Busbar May Be Cut To A Shorter Length To Accommodate Constricted Spaces
- Bi-Directional Busbar End Caps Allow The Ganging Of Additional Busbars
- Snap On Insulating Cover Meets ABYC And USCG Requirements
- Limited 90 Day Warranty
Specifications of Blue Sea Busbar 1992 | |
Ampere | 1000 Amps |
Length (IN) | 11.82 Inch |
Material | Tin-Plated Copper Bus |
Number Of Terminals | 8 |
Type | Flat Strip |
Voltage Rating | 150 Volts |
Width (IN) | 4.59 Inch |
With Insulated Cover | Yes |
