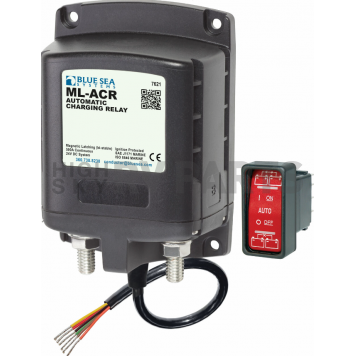

Blue Sea Battery Voltage Sensing Relay 7621BSS
Ampere Rating
500 Amp Continuous/ 700 Amp Intermittent
Operating Voltage
24 Volt
Share this page
Blue Sea Battery Voltage Sensing Relay
Battery Voltage Sensing Relay; ML Series; Tinned Wire Control Circuit Connection; 24 Volts DC; 500 Amps Continuous/ 700 Amps Intermittent; 20 AWG Wire; 3/8 Inch-16 Stud Size; With Contura Switch; Silver Alloy Contact
MPN: 7621BSS
500 Ampere Magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.
Operating Voltage: 24 Volt
Ampere Rating: 500 Amp Continuous/ 700 Amp Intermittent
Features
- Automatically Manages The Charging Of Two Large Battery Banks
- Allows Paralleling Of Battery Banks For Emergency Starting
- 500 Ampere Continuous Rating To Support High-Output Alternators
- Magnetic Latch (ML) - ACR Draws Very Low Current In The "ON" Or "OFF" States, And Draws Moderate Current For Very Short Time When Changing State
- Dual Sensing- Senses Charge On Both Battery Banks
- Start Isolation (SI)- Can Be Configured For Temporary Isolation Of House Loads From Engine Circuit During Engine Cranking To Protect Sensitive Electronics
- Engine Isolation (EI)- Can Be Configured For Isolation Of Two Engines While Both Are Running To Protect Engine Electronics And Maximize Alternator Output Senses Charging On Two Battery Banks
- LED Output To Remotely Indicate When Batteries Are Combined, Isolated, In Voltage Lockout, Or In Start Or Engine Isolation
- Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance/Silver Alloy Contacts Provide High Reliability For Switching Live Load
- No Supplier Warranty
Specifications of Blue Sea Battery Voltage Sensing Relay 7621BSS | |
Ampere Rating | 500 Amp Continuous/ 700 Amp Intermittent |
Operating Voltage | 24 Volt |
