Blue Sea Battery Voltage Sensing Relay 7601BSS

Brand: Blue Sea Blue Sea
0 reviews
  • Have a product question? Ask us
  • Part Number: 7601-BSS
  • Part Location: U.S.
  • Availability: 57 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 02
Retail: $91.34
Price: $86.99
You Save: $4.35
Ampere Rating
65 Amp Continuous/ 115 Amp Intermittent
Mounting Type
Surface/ Panel Mount
Operating Voltage
12/ 24 Volt
Share this page

Blue Sea Battery Voltage Sensing Relay

Battery Voltage Sensing Relay; M Series; 12/24 Volts DC; 65 Amps Continuous/ 115 Amps Intermittent; 1/0 AWG Cable Size; Surface/ Rear/ Panel Mount; 1/4 Inch- 20 Stud; Waterproof

MPN: 7601BSS

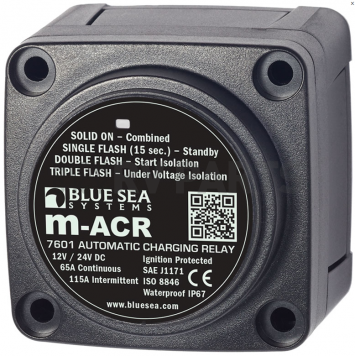

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines. Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes. The compact design allows for three mounting styles: surface, rear, or panel mount.
Operating Voltage: 12/ 24 Volt
Ampere Rating: 65 Amp Continuous/ 115 Amp Intermittent
Mounting Type: Surface/ Panel Mount

Features

  • Senses Charging On Two Battery Banks
  • Pull Off And Snap On Insulating Cover
  • LED Indicates ACR Status
  • 1 /4 Inch X .032 Inch Male Quick Connect Terminal For Ground
  • 7/16 Inch Stud Length To Accept Multiple Cable Terminals
  • Waterproof – Rated IP67 For Temporary Immersion
  • No Supplier Warranty
Specifications of Blue Sea Battery Voltage Sensing Relay 7601BSS
Ampere Rating 65 Amp Continuous/ 115 Amp Intermittent
Mounting Type Surface/ Panel Mount
Operating Voltage 12/ 24 Volt
