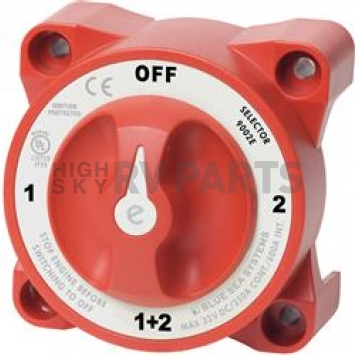

Blue Sea Battery Disconnect Switch 9002E
Activation Type
Manual
Base Diameter (IN)
3-5/8 Inch
Continuous Ampere Rating (A)
350 Amps
Installation Type
Screw-On
Surge Ampere Rating (A)
1200 Amps At 30 Second
Type
4 Position Selector
Share this page
Blue Sea Battery Disconnect Switch
Battery Disconnect Switch; E-Series; 32 Volts DC; Selector 4 Position; 350 Amps; Red; With Alternator Field Disconnect
MPN: 9002E
Battery switches isolate the potentially destructive energy in the battery banks when the boat is not in use or during emergencies. Switches isolated battery banks to all loads or combines battery banks to all loads.
Type: 4 Position Selector
Activation Type: Manual
Continuous Ampere Rating (A): 350 Amps
Surge Ampere Rating (A): 1200 Amps At 30 Second
Base Diameter (IN): 3-5/8 Inch
Installation Type: Screw-On
Features
- Make-Before-Break Contact Design Allows Switching Without Power Interruption
- Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
- Tactile Indicator Conveys Knob Position By Feel
- Waterproof – Rated IP66 From Water Projected In Powerful Jets
- Case Design Allows Surface, Rear, Or Front Panel Mounting Options
- Ignition Protected—safe For Installation Aboard Gasoline Powered Boats
- Limited 90 Day Warranty
| Specifications of Blue Sea Battery Disconnect Switch 9002E | |
| Activation Type | Manual |
| Base Diameter (IN) | 3-5/8 Inch |
| Continuous Ampere Rating (A) | 350 Amps |
| Installation Type | Screw-On |
| Surge Ampere Rating (A) | 1200 Amps At 30 Second |
| Type | 4 Position Selector |
