Blue Sea Battery Disconnect Switch 7615BSS
Base Diameter (IN)
Not Applicable
Continuous Ampere Rating (A)
120 Amp
Share this page

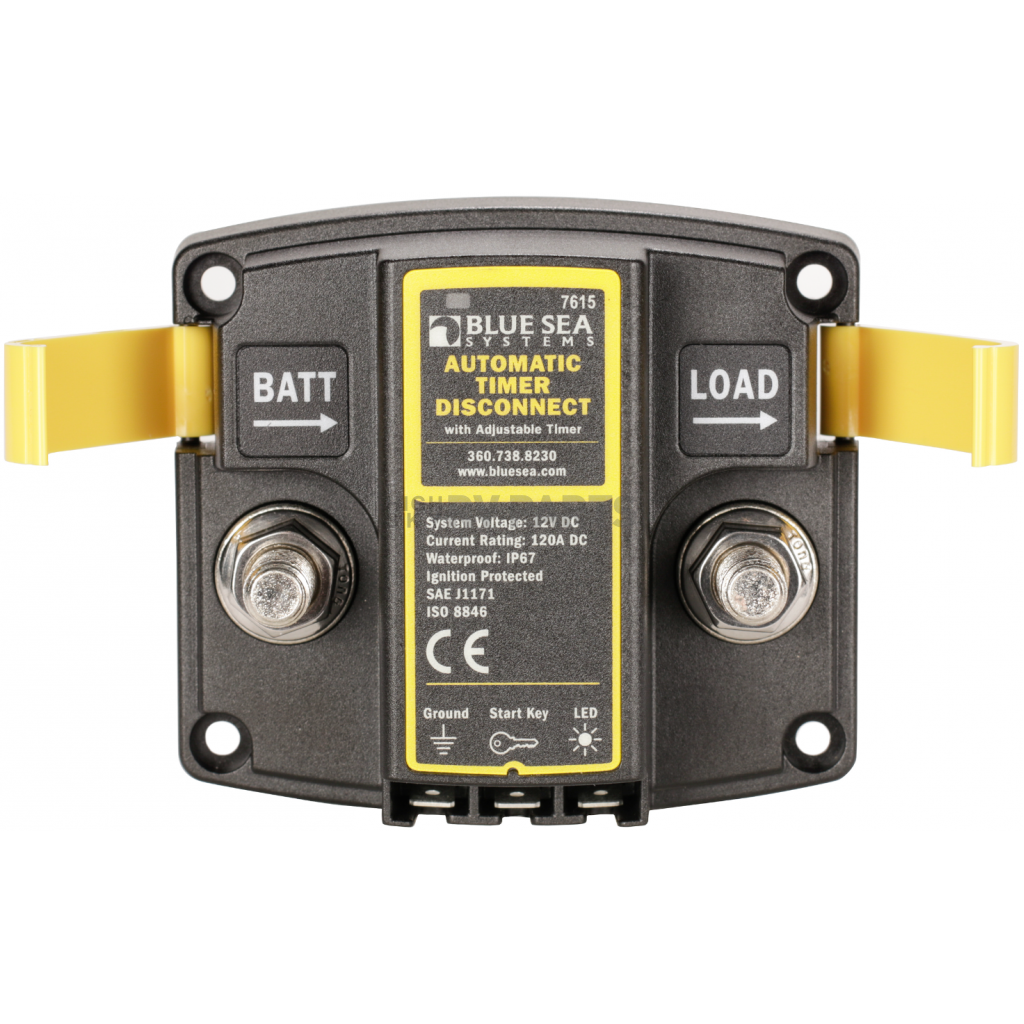

Blue Sea Battery Disconnect Switch
Battery Disconnect Switch; Automatic Timer Disconnect; 12 Volt DC; 120 Amp
MPN: 7615BSS
When signal is removed the timer is activated and will disconnect devices after a preset time. 12 Volt signal triggers relay to connect battery power to devices. After 12 Volt signal is removed, device senses low battery voltage and automatically disconnects devices. Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power. Automatically combines two batteries when charging, and isolates them when discharging. Single side sensing design only monitors the voltage of the start battery. Ideal for auxiliary batteries that are AGM or significantly larger than the start battery.
Continuous Ampere Rating (A): 120 Amp
Base Diameter (IN): Not Applicable
Features
- 12 Volt Signal Triggers Relay To Connect Battery Power To Devices
- Timer Ranges From 15 Minute To 4 Hour
- 12 Volt Signal Will Connect Or Disconnect Relay Without Any Time Delay
- Automatically Combines Two Batteries When Charging, And Isolates Them When Discharging
- No Supplier Warranty
| Specifications of Blue Sea Battery Disconnect Switch 7615BSS | |
| Base Diameter (IN) | Not Applicable |
| Continuous Ampere Rating (A) | 120 Amp |
