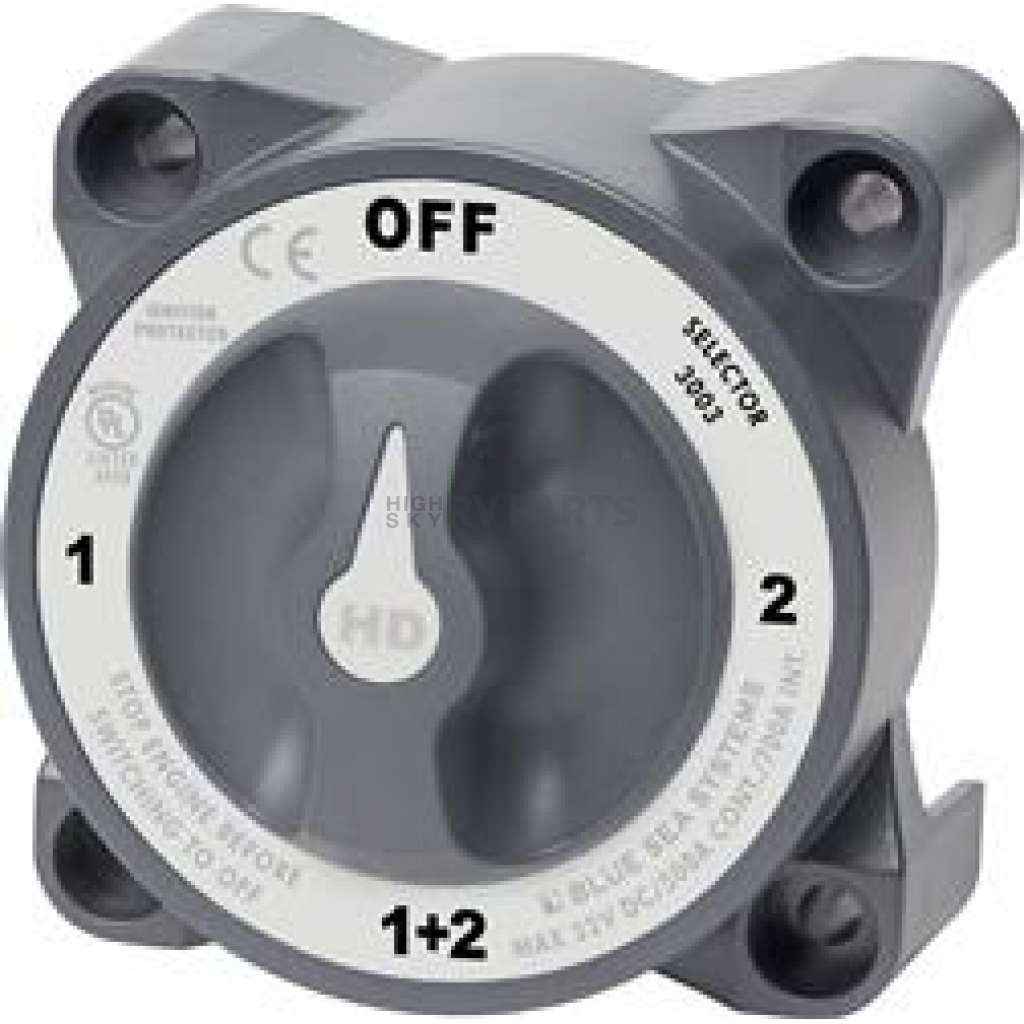

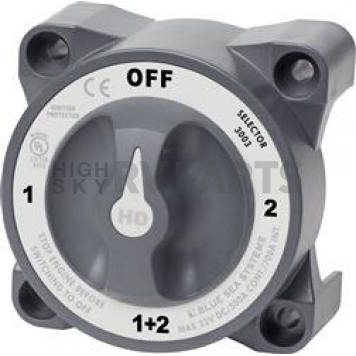

Blue Sea Battery Disconnect Switch 3003
Activation Type
Manual
Base Diameter (IN)
3-5/8 Inch
Continuous Ampere Rating (A)
500 Amps
Installation Type
Screw-On
Surge Ampere Rating (A)
1600 Amps At 30 Second
Type
4 Position Selector
Share this page
Blue Sea Battery Disconnect Switch
Battery Disconnect Switch; HD Series; 32 Volts DC; Selector 4 Position; 500 Amps; Gray; With Alternator Field Disconnect
MPN: 3003
Battery switches isolate the potentially destructive energy in the battery banks when the boat is not in use or during emergencies. Switches isolated battery banks to all loads or combines battery banks to all loads.
Type: 4 Position Selector
Activation Type: Manual
Continuous Ampere Rating (A): 500 Amps
Surge Ampere Rating (A): 1600 Amps At 30 Second
Base Diameter (IN): 3-5/8 Inch
Installation Type: Screw-On
Features
- Make-Before-Break Contact Design Allows Switching Between Battery Banks Without Power Interruption
- Accepts Two 4/0 AWG Battery Cables
- Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
- Tactile Indicator Conveys Knob Position By Feel
- Waterproof – Rated IP66 From Water Projected In Powerful Jets
- Case Design Allows Surface, Rear, Or Front Panel Mounting Options
- Ignition Protected—safe For Installation Aboard Gasoline Powered Boats
- Limited Lifetime Warranty
| Specifications of Blue Sea Battery Disconnect Switch 3003 | |
| Activation Type | Manual |
| Base Diameter (IN) | 3-5/8 Inch |
| Continuous Ampere Rating (A) | 500 Amps |
| Installation Type | Screw-On |
| Surge Ampere Rating (A) | 1600 Amps At 30 Second |
| Type | 4 Position Selector |
