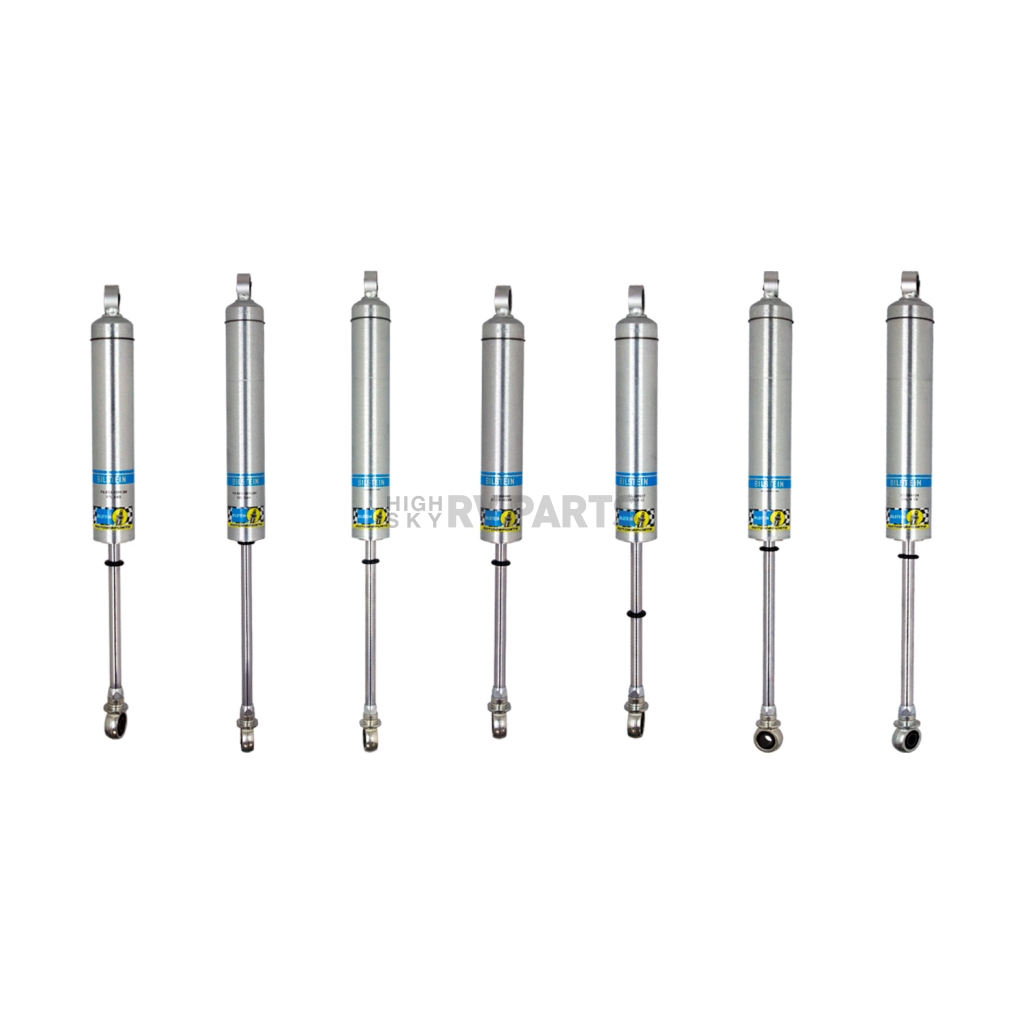

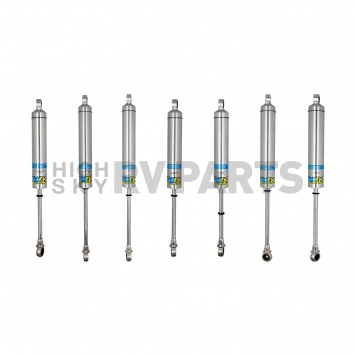

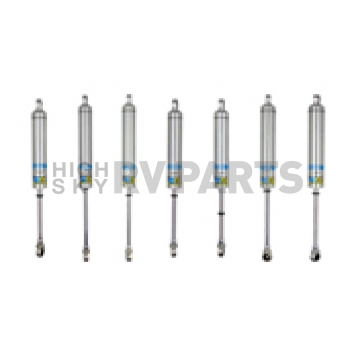

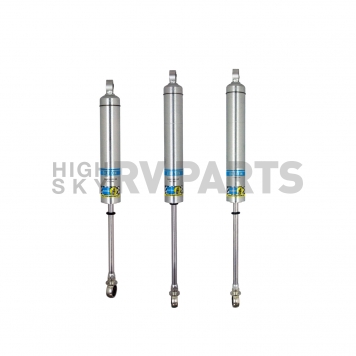

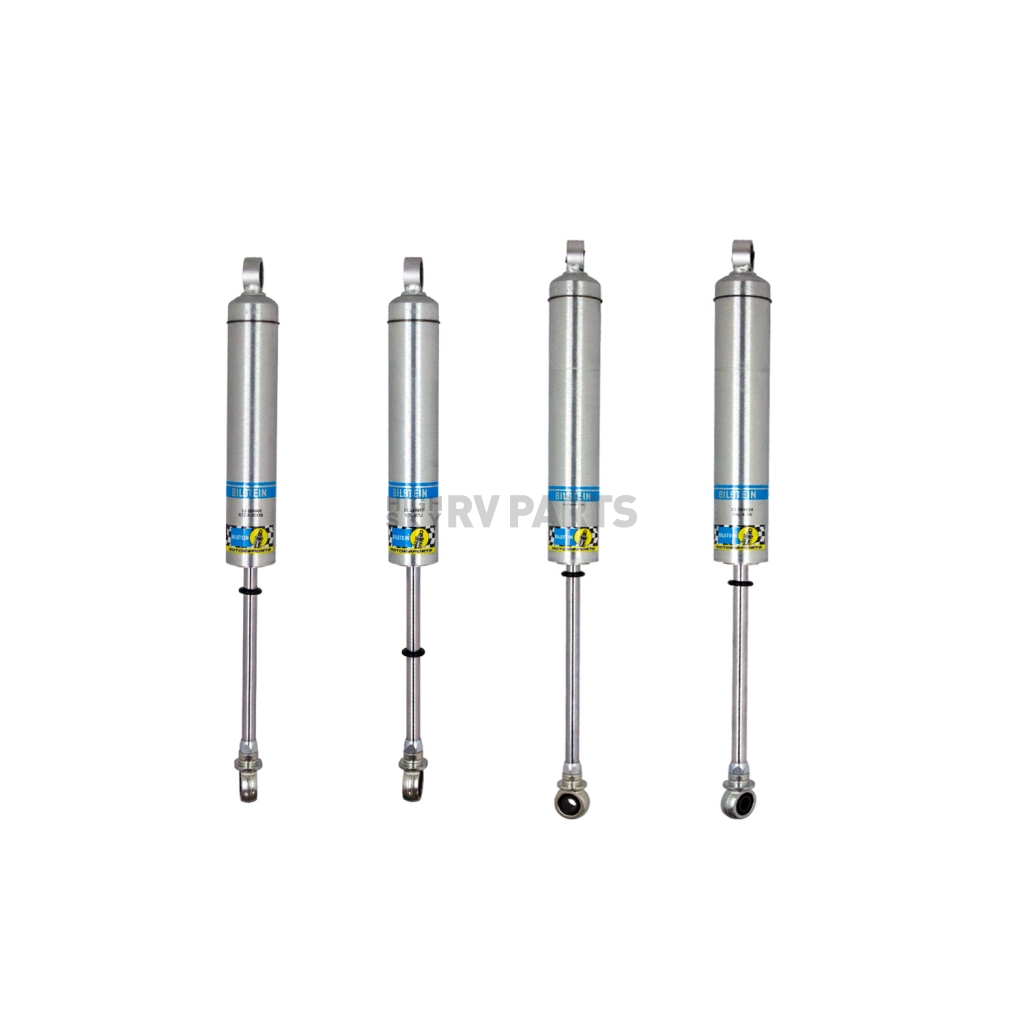

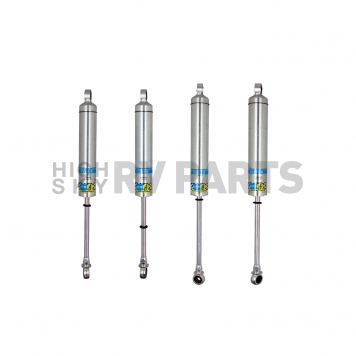

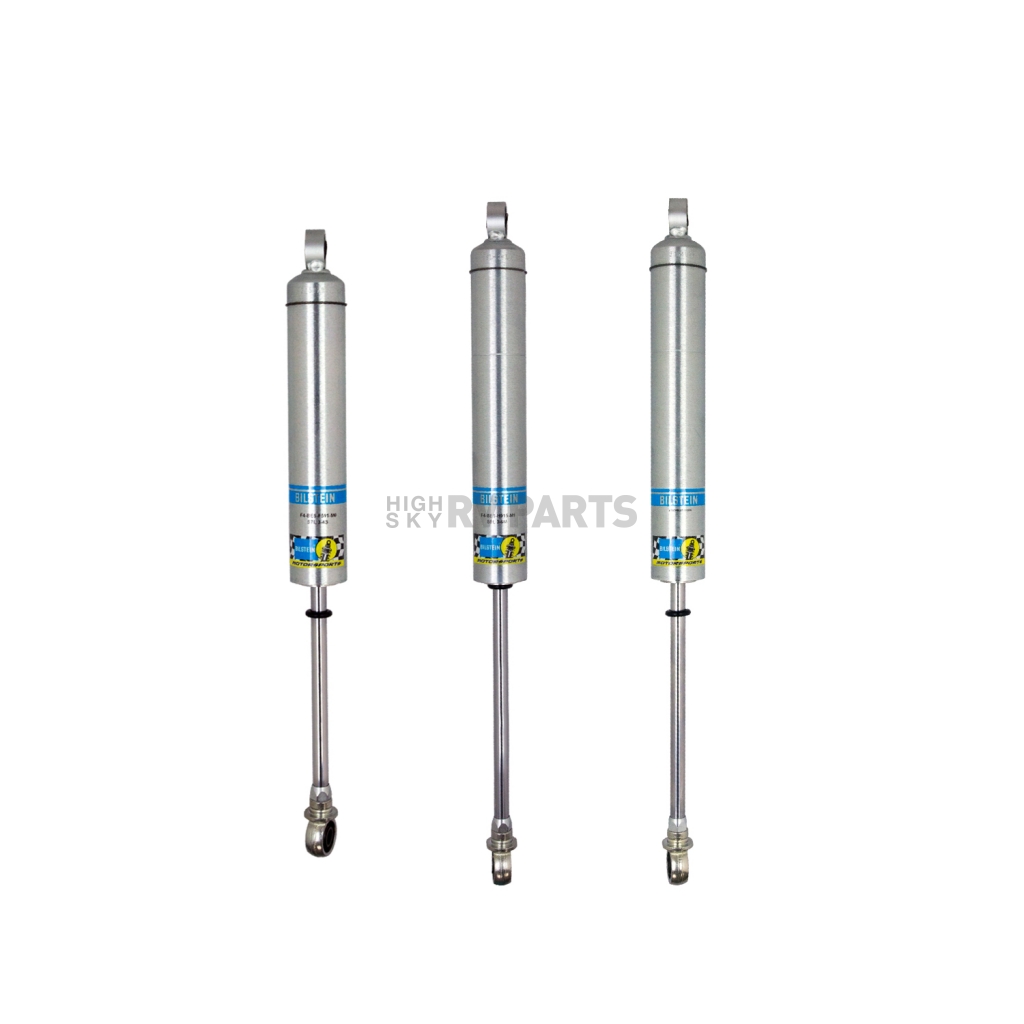

Bilstein SZ Series Shock Absorber - F4-SE7-L676-M0

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: F4-SE7-L676-M0
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $1,100.39
Price: $1,047.99
You Save: $52.40
Adjustable Valving
 No
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 12.05 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 18.11 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; SZ Series; Universal; Nitrogen Gas Charged; 46 Millimeter Body Diameter; Limited 90 Day Warranty; Non Adjustable; 18.11 Inches Extended Length/ 12.05 Inches Compressed Length; 1/2 Inch Heim; Without Shock Boot; Zinc Plated; Single

MPN: F4-SE7-L676-M0

Bilstein SZ Series shock absorbers feature a 46 Millimeter piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 18.11 Inch
Compressed Length (IN): 12.05 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Rod Material: Stainless Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • 46 Millimeter Steel Monotube Technology For Consistent, Fade-Free Performance
  • Body Design Allows For Standard Or Coilover Applications
  • Floating Rod Guide Decreases Side Load And Friction
  • Zinc Plated Body For Corrosion Resistance, Extra Durability, And Heat Dissipation
  • Proprietary Spring Steel Valving Discs Provides Superior Damping Performance
  • Meets The Demand Of Racing Divisions That Require Steel Body, Non-Take-Apart Shock Absorbers Without Schrader Valves While Still Providing Superior Quality And Performance
  • Limited 90 Day Warranty
Specifications of Bilstein SZ Series Shock Absorber - F4-SE7-L676-M0
Adjustable Valving  No
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  12.05 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  18.11 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  1/2 Inch
Rod Material  Stainless Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Eyelet
With Coil Spring  No
With Reservoir  No
