Bilstein B8 8112 Series Shock Absorber - 41-284834

Name: Bilstein B8 8112 Series Shock Absorber - 41-284834
Brand: Bilstein
SKU: 41-284834
Price: 1382.99 USD
Availability: InStock

1 More

Authorized Dealer

Brand:

Bilstein

0 reviews

Have a product question? Ask us
Part Number: 41-284834
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 25

Retail: $1,452.14

Price: $1,382.99

You Save: $69.15

Adjustable Valving

Body Material

Steel

Compressed Length (IN)

17.99 Inch

Estimated Install Time (Hours)

0.5

Extended Length (IN)

22.8 Inch

Includes Boot

Includes Dust Shield

Includes Hardware

Internal Design

Monotube

Lower Mounting Style

Eyelet

Quantity

Single

Share this page

Shock Absorber; B8 8112 (ZoneControl CR); Nitrogen Gas Charged; With Reservoir; Limited 2 Years Warranty; Non Adjustable; Direct Fit; Without Shock Boots; Zinc Plated; Single

MPN: 41-284834

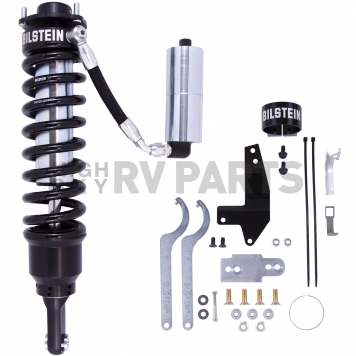

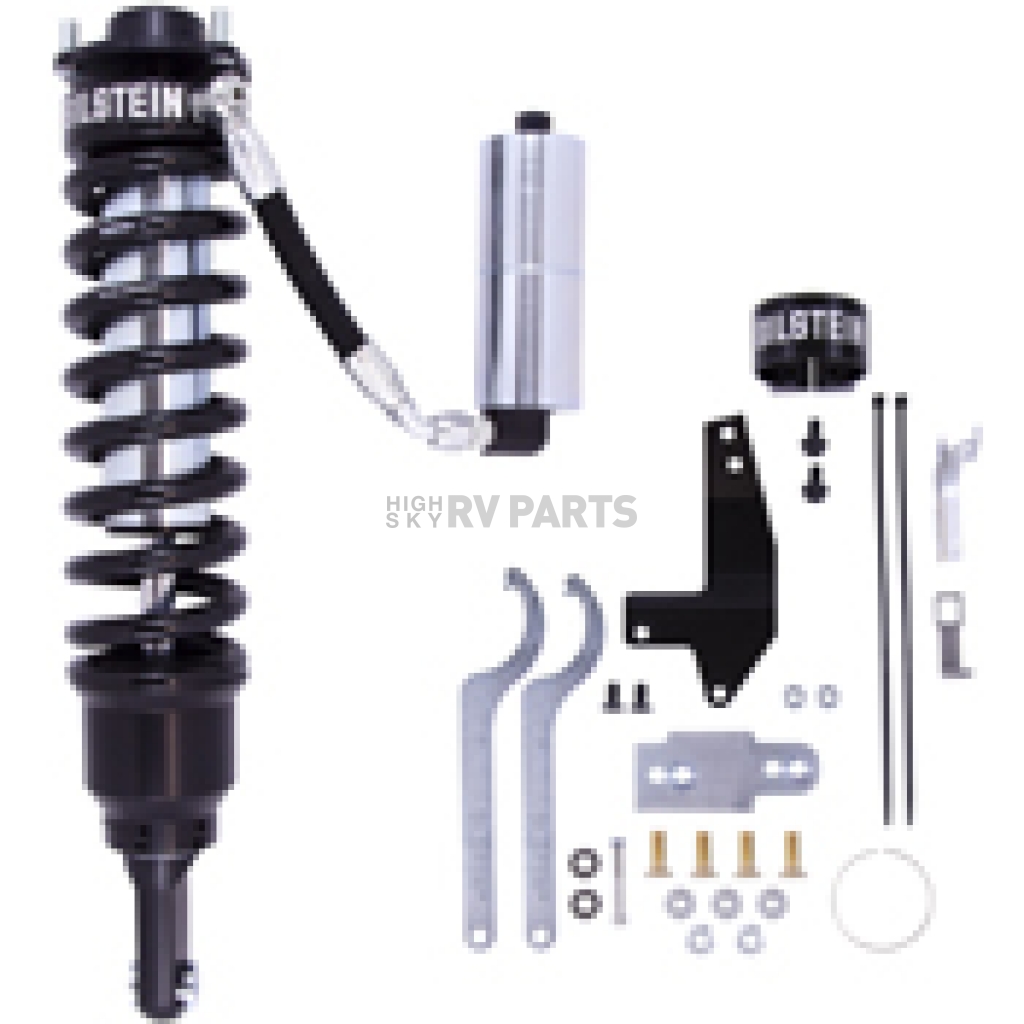

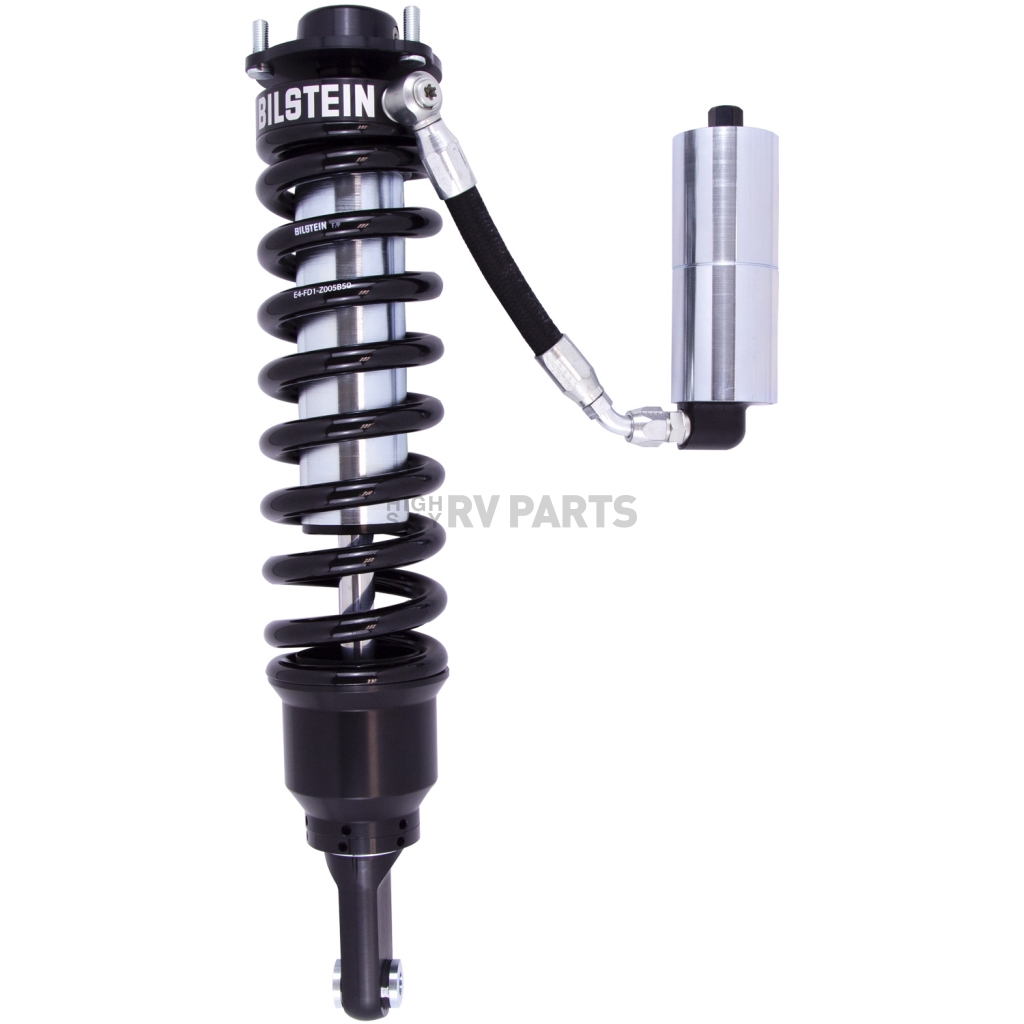

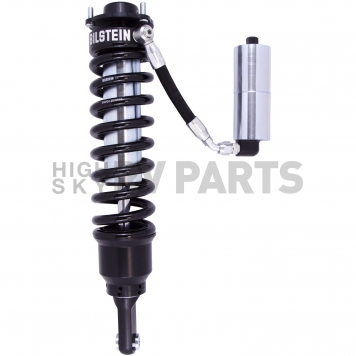

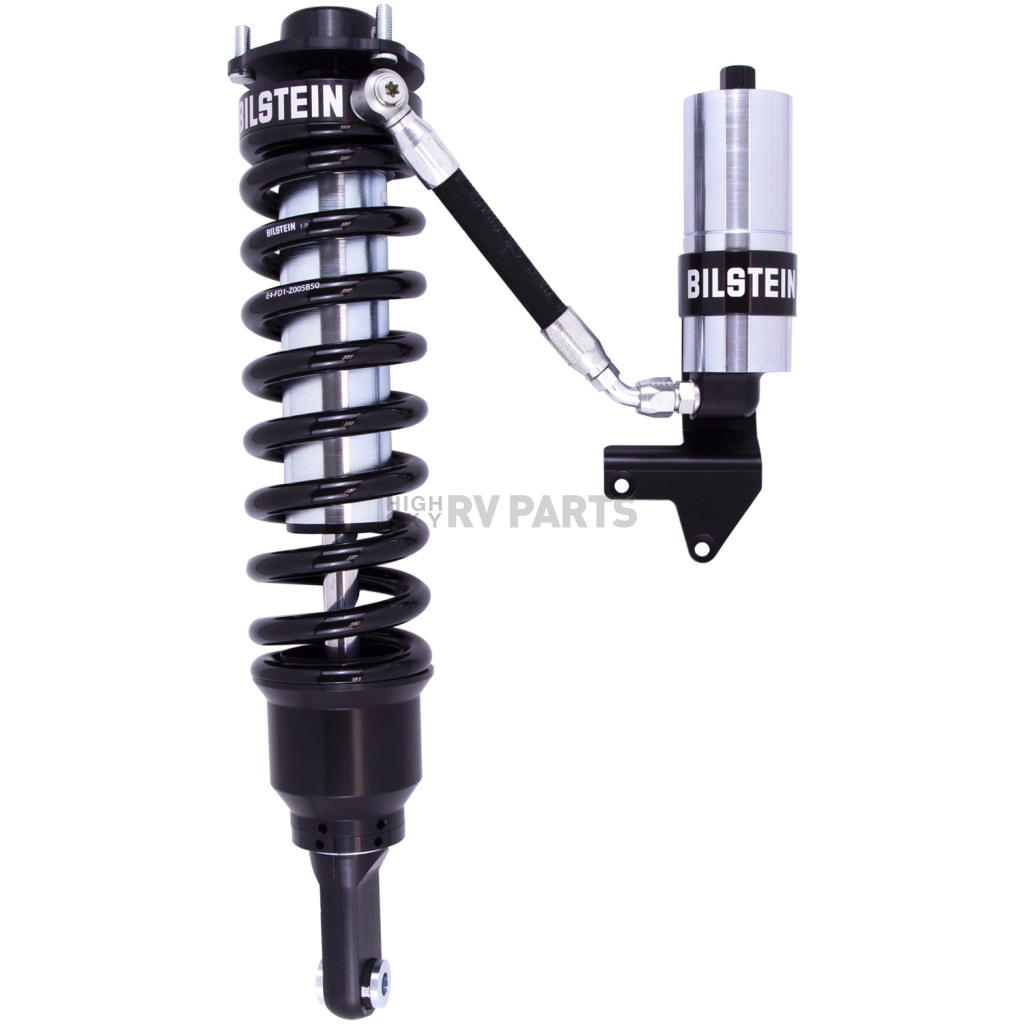

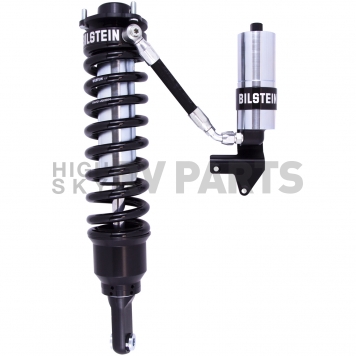

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Type: Nitrogen Gas Charged

With Coil Spring: Yes

Internal Design: Monotube

Adjustable Valving: No

Extended Length (IN): 22.8 Inch

Compressed Length (IN): 17.99 Inch

Upper Mounting Style: Stud

Lower Mounting Style: Eyelet

Quantity: Single

Body Material: Steel

With Reservoir: Yes

Includes Dust Shield: No

Includes Hardware: No

Includes Boot: No

Estimated Install Time (Hours): 0.5

Features

ZoneControl ® CR: Position Sensitive Damping With 3 Compression Zones And 2 Rebound Zones, Controlled By 3 Independent Pistons
Compression ©: Provides Superior Bottom Out Control Through A 2-Stage, Telescoping Internal Compression Stop This Feature Eliminates The Need For An External Hydraulic Bump Stop
Rebound ®: Secondary Rebound Stop Will Dissipate Spring Energy And Stabilize The Suspension Directly Following A Large Compression Event
Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs
Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height Adjustable Range 06 To 25 Inch, 60mm Remote Reservoir For Increased Oil Capacity And Cooling
Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
High Quality Chrome 5/8 Inch Heim Joint Mounting With Rubber Sealed Misalignment Spacers Offer The Most Durable, Load Bearing Mount Solution
Aluminum Components With Zinc Plated Shock Bodies Will Resist Harsh Off-Road Elements And Factory Rebuildable
Coilover Supplied As A Complete Module For Easy Installation, Spring Is Pre-Loaded To The Factory Recommended Ride Height
Limited 2 Year Warranty

Specifications of Bilstein B8 8112 Series Shock Absorber - 41-284834
Adjustable Valving	No
Body Material	Steel
Compressed Length (IN)	17.99 Inch
Estimated Install Time (Hours)	0.5
Extended Length (IN)	22.8 Inch
Includes Boot	No
Includes Dust Shield	No
Includes Hardware	No
Internal Design	Monotube
Lower Mounting Style	Eyelet
Quantity	Single
Type	Nitrogen Gas Charged
Upper Mounting Style	Stud
With Coil Spring	Yes
With Reservoir	Yes
