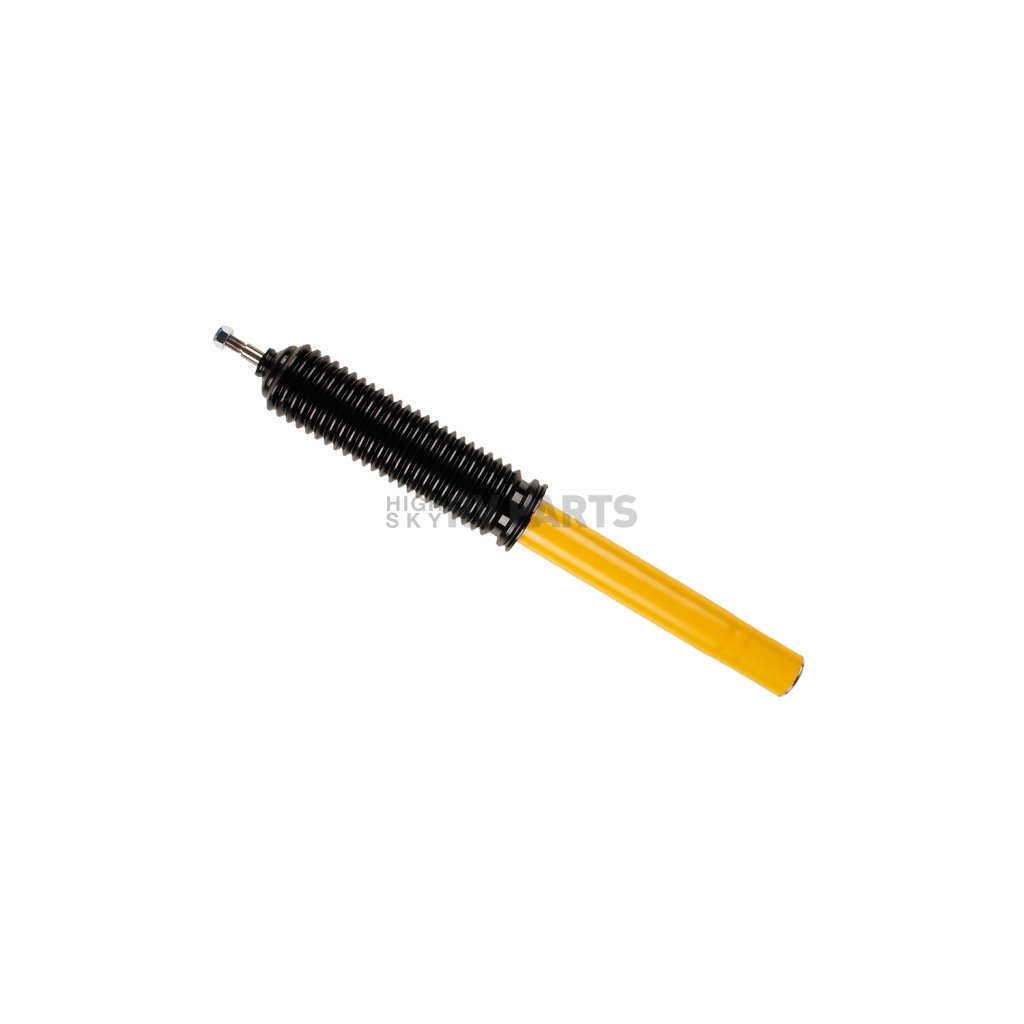

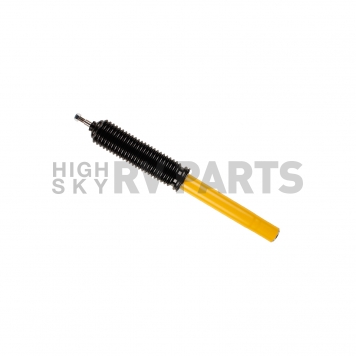

Bilstein Motorsport Series Shock Absorber - 34-046296

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 34-046296
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 08
Retail: $279.29
Price: $265.99
You Save: $13.30
Adjustable Valving
 No
Body Color
 Yellow
Body Material
 Steel
Compressed Length (IN)
 18-1/2 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 22.2 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Stud
Share this page

Shock Absorber; Motorsport; 36 Millimeter; Nitrogen Gas Charged Mono Tube; Limited 90 Day Warranty; Deflective Disc Valving; 22.2 Inch Extended Height/ 18-1/2 Inch Compressed Height; Stem Upper Mount/ Base Cup Lower Mount; With Shock Boots; Yellow Body; Black Boots; Single

MPN: 34-046296

Bilstein Motorsport Shock Absorbers offer the technology and performance necessary to keep serious competitors crossing the finish line first! The monotube design allows for a larger working piston with deflective disc valving, eliminating the need for check valves and other componentry that result in consistencies in valving and variations in performance. Available in steel and aluminum bodies, both sealed and racer-rebuildable, for a wide range of applications from pure stock to NASCAR.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 22.2 Inch
Compressed Length (IN): 18-1/2 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Stud
Body Color: Yellow
Quantity: Single
Valving Type: Self-Adjusting Deflective Disc Valving
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • Monotube Design Allows For A Larger Working Piston With Deflective Disc Valving, Eliminating The Need For Check Valves And Other Componentry
  • Available In Steel And Aluminum Bodies, Both Sealed And Racer-Rebuildable
  • Limited 90 Day Warranty
Specifications of Bilstein Motorsport Series Shock Absorber - 34-046296
Adjustable Valving  No
Body Color  Yellow
Body Material  Steel
Compressed Length (IN)  18-1/2 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  22.2 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Stud
Quantity  Single
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
Valving Type  Self-Adjusting Deflective Disc Valving
With Coil Spring  No
With Reservoir  No

1988 BMW M3
1989 BMW M3
1990 BMW M3
1991 BMW M3
